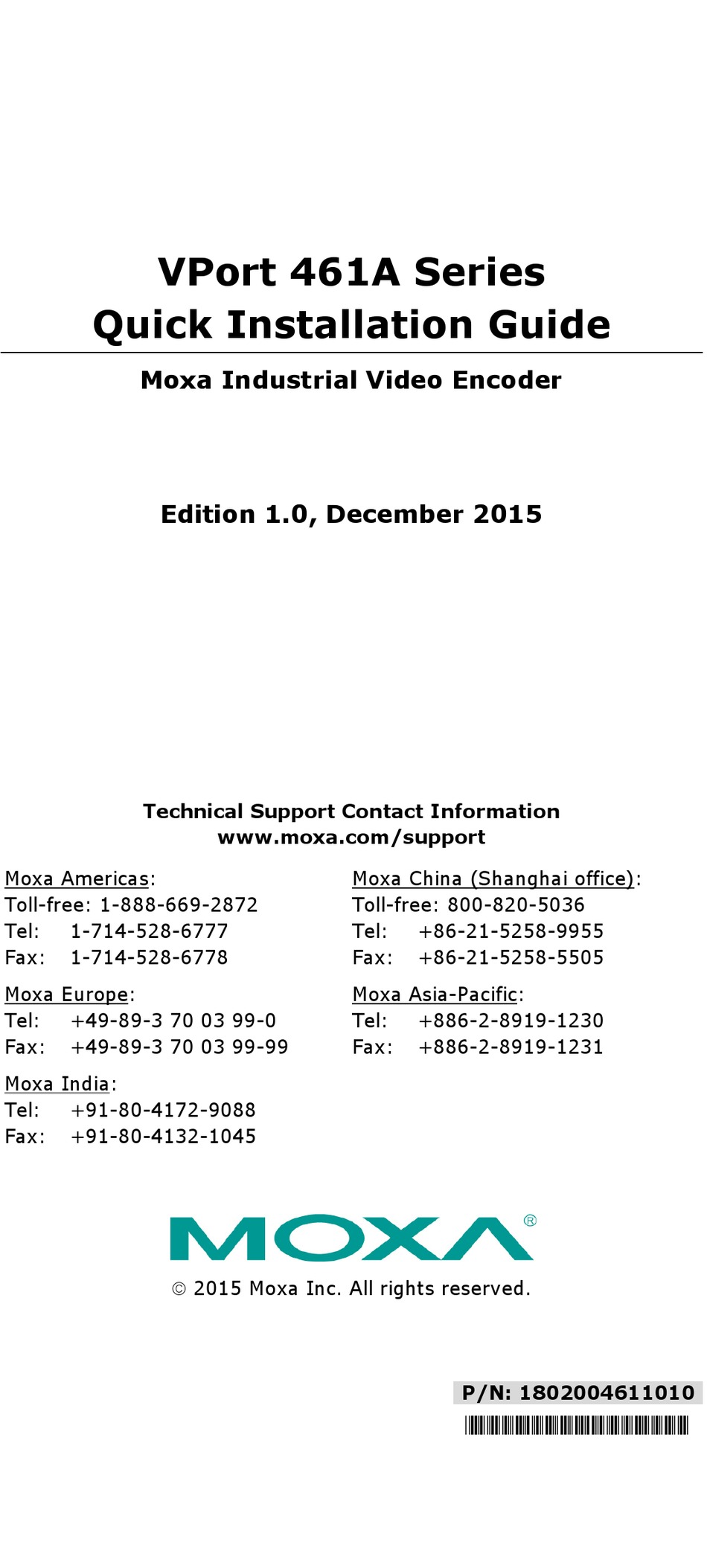

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045

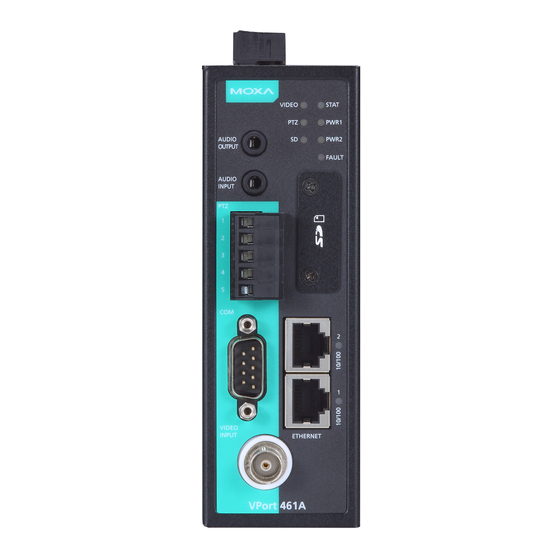

VPort 461A Series
Moxa Industrial Video Encoder
Edition 1.0, December 2015
Technical Support Contact Information
www.moxa.com/support
2015 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802004611010
*1802004611010*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies VPort 461A Series
Summary of Contents for Moxa Technologies VPort 461A Series
- Page 1 VPort 461A Series Quick Installation Guide Moxa Industrial Video Encoder Edition 1.0, December 2015 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific:...
-
Page 2: Package Checklist
Overview The VPort 461A is a 1-channel Industrial Video Encoder with H.264/MJPEG video compression. The H.264 algorithm provides the best video quality on the market today with lower bandwidth requirements than other video compression standards. In addition, to meet requirements for multiple video streams, the VPort 461A can provide up to 3 video streams simultaneously with H.264 and MJPEG compression. - Page 3 • Supports standard RTSP (Real-time streaming protocol) for easy integration. • Supports multicast (IGMP) protocols for efficient network transmission. • Supports QoS (TOS) for priority transmission. • Supports SNMP V1/V2c/V3 for network management. • Built-in web server and RS-232 console for remote access and configuration.
-
Page 4: Vport 461A Panel Layout
VPort 461A Panel Layout 1. Grounding screw 2. RS-232 console port 3. Hardware reset button 4. 8-pin terminal block for Relay 1, Relay 2, and power input 1 (PWR1) 5. 6-pin terminal block for DI 1, DI 2, power input 2 (PWR2) 6. -
Page 5: First-Time Installation And Configuration
FAULT LED will light up red, providing the power failure alarm is enabled. NOTE The VPort 461A series supports power input specifications of 12-32 VDC for 12/24 VDC power input, or 18-30 VAC for 24 VAC power input. - Page 6 Step 4: Connecting motorized PTZ cameras and serial devices The VPort 461A has two RS-232/422/485 ports. One is a COM PORT with DB9 male connector, and the other is a PTZ PORT with 5-pin terminal block connector. Both ports can be used for connecting PTZ control cables for controlling PTZ cameras over the TCP/IP network.
- Page 7 Using the Moxa VPort and EtherDevice Configurator Utility (edscfgui.exe) 1. Run the edscfgui.exe program to search for the VPort and EDS switches. After the Utility window opens, select or click on Broadcast Search, which is located under the List Server menu, to initiate a search (note that you can also click on the Broadcast Search icon to initiate a search).
- Page 8 3. When the search has ended, the Model Name, MAC address, and IP address of the EDS switches and VPorts will be listed in the Utility window. NOTE Broadcast Search can only search for devices connected to the same LAN subnet as the VPort. If your devices are located on a different LAN subnet, use the “Specify IP Address”...
- Page 9 NOTE For Windows XP SP2 or later operating systems, the ActiveX Control component will be blocked for system security reasons. In this case, the VPort’s security warning message window may not appear. Users should unblock the ActiveX control function or disable the security configuration to enable the installation of VPort’s ActiveX Control component.
-
Page 10: Mounting Dimensions (Unit = Mm)
NOTE After accessing the VPort 461A’s web-based manager, administrators should access System Configuration System Account to set up the administrator’s password and enable the authentication function. The administrator account name is admin. An authentication window will pop up requesting the account name and password each time the VPort 461A is accessed. -
Page 11: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be attached to the back panel of the VPort 461A when you take it out of the box. Mount the VPort 461A on a mounting rail, as shown in the figures below. Step 1: Insert the upper lip of the DIN rail into the DIN-rail mounting... -
Page 12: Wiring Requirements
Step 2: Mounting VPort 461A on the wall requires 4 screws. Use the VPort 461A, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in the figure on the right. -
Page 13: Grounding The Moxa Vport 461A
Grounding the Moxa VPort 461A Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. -
Page 14: Wiring The Relay Output
Wiring the Relay Output The VPort 461A has two sets of relay output, relay 1 and relay 2, which are located on the 8-pin terminal block connector. Each relay output consists of the 3 contacts of the terminal block on the VPort 461A’s top panel. -
Page 15: 10/100Baset(X) Ethernet Port Connection
RJ45 (10-pin) Console Port Pinouts Description – – – – 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) port located on the VPort 461A’s front panel is used to connect to Ethernet-enabled devices. Pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports are illustrated below, along with cable wiring diagrams for straight-through and cross-over Ethernet cables. - Page 16 COM Port A COM PORT is located on the front panel for connecting a PTZ motorized camera or serial device. The COM port transmits RS-232 or RS-422/485 signals over the TCP/IP network. Users can use this COM port (DB9 male connector) to monitor data or control a serial device, or for the control of a PTZ motorized camera.
-
Page 17: Sd Card Slot
SD Card Slot The front panel of Moxa’s VPort 461A has an SD card slot that supports the SDHC interface (SDXC will be supported after the firmware is upgraded to V1.1). An SD card can be used for recording video if the network is down. -
Page 18: Led Indicators
LED Indicators The front panel of Moxa’s VPort 461A contains several LED indicators. The function of each LED is described in the table below. Color State Description Steady Hardware initialization stage. Flashing Software initialization stage. Green/ STAT Steady System is powered on and ready to run. Green Flashing Firmware is being upgraded. -
Page 19: Hardware Reset
Hardware Reset A recessed RESET button is provided for restoring the system to the factory default settings. When the system fails to install properly, or operates abnormally, use the RESET button located on the top panel of the VPort 461A to restore the factory defaults. To do this, use a pointed object such as a straightened paper clip or a toothpick, to depress the reset button continuously for about 90 seconds.
