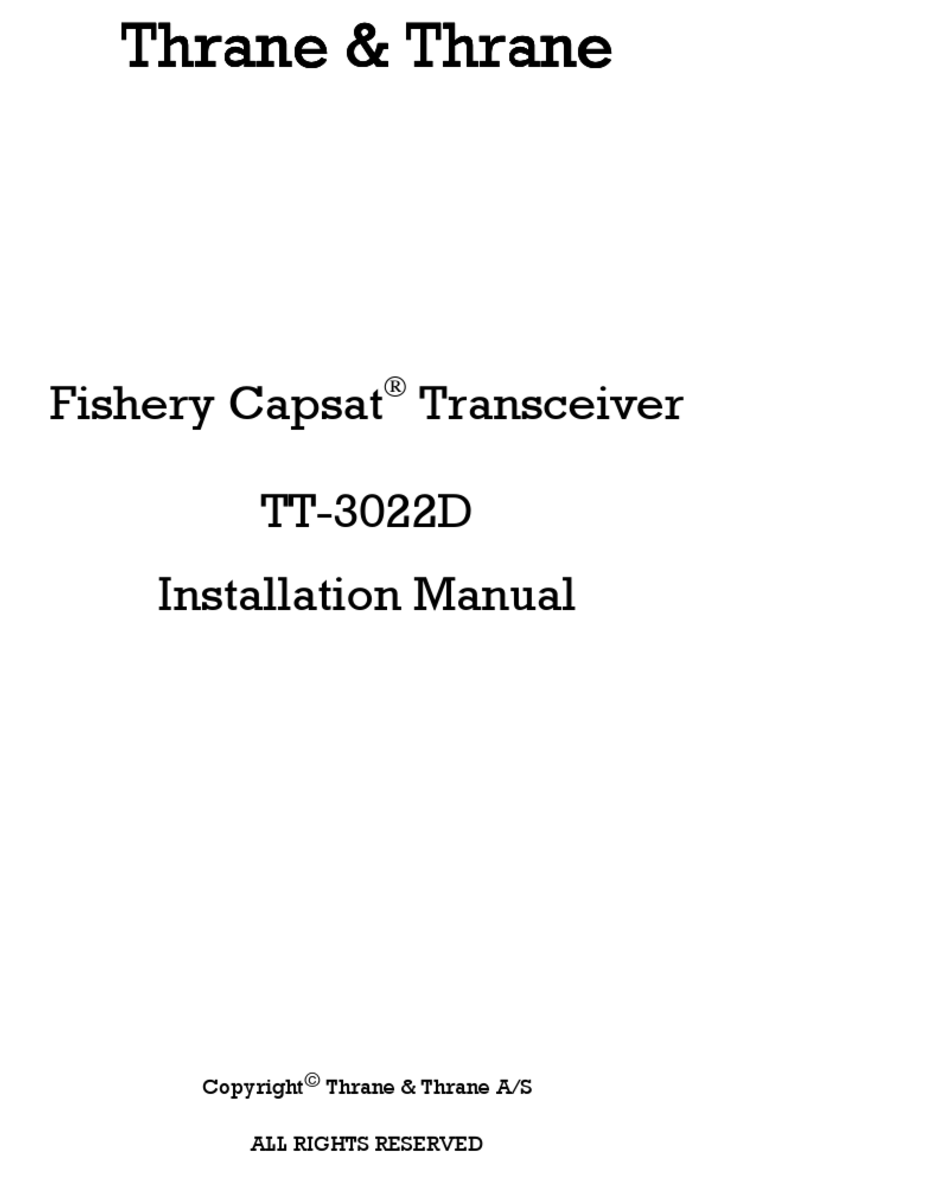

Fishery Capsat
Transceiver
TT-3022D
Installation Manual
Copyright  Thrane & Thrane A/S
ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tt-3022d and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thrane&Thrane tt-3022d

Summary of Contents for Thrane&Thrane tt-3022d

  • Page 1 Thrane & Thrane Thrane & Thrane Thrane & Thrane Thrane & Thrane  Fishery Capsat Transceiver TT-3022D Installation Manual Copyright  Thrane & Thrane A/S ALL RIGHTS RESERVED...
  • Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Thrane & Thrane A/S. © 2000 Thrane & Thrane A/S. All right reserved. Printed in Den- mark. Document Number TT98-107310-D. Release Date: 25.
  • Page 3 Safety Summary Safety Summary Safety Summary Safety Summary The following general safety precautions must be observed during all phases of operation, service and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment.
  • Page 4 This page is intentionally left blank...

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Introduction ..................1-1 Initial inspection ............... 1-1 Storage ..................1-2 Repackaging for shipment............1-2 Installation - TT-3022D ............... 2-1 Technical specifications............2-1 Compass Safe Distance............. 2-3 Power requirements ..............2-4 2.3.1 Fuse ................2-4 Functional description ..............
  • Page 6 Installation ..............3-59 3.10.3 Connectors ..............3-59 3.10.4 Cable.................3-60 3.10.5 Specifications.............3-62 3.11 Distress Button Test ..............3-63 3.11.1 TT-3022D Transceiver..........3-63 3.11.2 TT-3042C Remote Alarm/Distress Box .......3-64 3.11.3 TT-3042D Remote Alarm Distress Box ......3-64 3.11.4 TT-3606C Message Terminal ........3-65 3.12 General interconnect information ...........3-66 3.12.1 Cable spec.
  • Page 7 Table of Contents Table of Contents Table of Contents Table of Contents TT-3606C Configuration Mode ..........4-6 4.3.1 DNID Selection............4-8 4.3.2 LES Selection............... 4-9 4.3.3 EGC Setup ..............4-10 4.3.4 Auto Addressing ............4-11 TT-3606C System Menu ............4-13 4.4.1 Format...............
  • Page 8 Table of Contents Table of Contents Table of Contents Table of Contents This page is intentionally left blank Page Page iv iv iv iv Page Page 25Jul00 25Jul00 25Jul00 25Jul00...
  • Page 9 Figure 1 TT-3022D Fishery Capsat Transceiver ........... 1-1 Figure 2 TT-3022D Capsat Transceiver rear panel ........2-8 Figure 3 TT-3022D Capsat Transceiver mounting plate ......2-19 Figure 4 Front panel of the TT-3022D Capsat Transceiver with mounting bracket ..................2-20 Figure 5 TT-3022D mounting Angle ............2-20 Figure 6 TT-3022D mounting bracket ............
  • Page 10 Table of Contents Table of Contents Table of Contents Table of Contents Figure 31 TT-3042C Outline drawing with console bracket......3-53 Figure 32 TT-3042C Mounting stencil............3-54 Figure 33 TT-3042D Remote Alarm Distress Box / Local Printer ....3-55 Figure 34 Interconnection diagram............3-66 Figure 35 TT-3000S interconnection cable diagram (TT-3606C opt.
  • Page 11 Table 16 TT-3020C Capsat Transceiver Antenna Cable types (TNC - TNC) for TT-3005M..................3-9 Table 17 TT-3005B Technical Specifications..........3-13 Table 18 TT-3022D Capsat Transceiver Antenna Cable types (TNC - TNC) for TT-3005B antenna................ 3-14 Table 19 TT-3001B opt. 001 Technical Specifications......... 3-19 Table 20 TT-3022DCapsat Transceiver Antenna Cable types (N - TNC) for TT-3001 opt.
  • Page 12 Table of Contents Table of Contents Table of Contents Table of Contents Table 29 TT-3608G DIP switch settings............3-44 Table 30 TT-3608G Power Connector............3-45 Table 31 TT-3608G I/O Connector .............3-46 Table 32 TT-3608G Technical Specifications ..........3-48 Table 33 TT-3042C and Satellite Communication Unit interconnection ..3-50 Table 34 TT-3042C Technical Specifications ..........3-51 Table 35 TT-3042D DIP switch settings............3-58 Table 36 TT-3042D Power Connector ............3-59...

  • Page 13: Introduction

    A wide variety of options and accessories may be linked together with the Capsat Transceiver, and the specific installation and configuring of these are to be found in their respective Reference Manuals. Figure 1 TT-3022D Fishery Capsat Transceiver Initial inspection WARNING WARNING...

  • Page 14: Storage

    Storage The TT-3022D may be stored or shipped in temperatures within the limits -40° C to +80° C. It is advisable to protect the TT-3022D from extreme temperature variation which can cause excessive condensation. It is recommended that the TT-3022D is unpacked immediately on delivery.
  • Page 15 If the original shipping carton is not available, the following gen- eral instructions should be used for repackaging with commer- cially available material. 1. Wrap the TT-3022D in heavy paper or plastic. Attach a tag in- dicating the type of service required, return address, model number and full serial number.
  • Page 16 Introduction Introduction Introduction Introduction This page is intentionally left blank Page Page 1-4 Page Page 25Jul00 25Jul00 25Jul00 25Jul00...

  • Page 17: Installation - Tt-3022D

    Installation - TT-3022D Installation - TT-3022D This chapter provides specific information enabling you to install the TT-3022D Capsat Transceiver into your own system, with a minimal effort. The default, or factory configuration is described, together with procedures for altering this configuration.

  • Page 18: Table 1 Tt-3022D Technical Specifications

    -40°C to 80°C storage. Electronic Unit Mounting Mounting bracket. Dimensions H x W x D 50mm x 180mm x 165mm. ( car radio standard ISO7736 ) Weight 1.3 kg Table 1 TT-3022D technical specifications. Page Page 2-2 Page Page 25Jul00 25Jul00 25Jul00...

  • Page 19: Compass Safe Distance

    Non-SOLAS distress calling facilities. Table 2 Inmarsat-C Protocol support. Compass Safe Distance The compass safe distance of the TT-3022D transceiver has been measured in accordance with the standards specified in ISO/R 694, Method B. The safe distance found is 50 cm.

  • Page 20: Power Requirements

    Antenna Table 3 TT-3022D power requirements 2.3.1 Fuse The TT-3022D has a single fuse, which can be found on the rear panel. In case it needs replacement a 12 A T type must be used. Page Page 2-4 Page...

  • Page 21: Functional Description

    The TT-3022D Transceiver/GPS is powered from a DC source (10- 32V). The system is switched ON by the ON/OFF switch S1 placed on the rear panel of the TT-3022D Transceiver, and the remote on/off wire (white) in the DC input cable. An internal Timer can be used to control the transceiver in a sleep mode configuration for lower power consumption.

  • Page 22: Front Indicators And Buttons

    Installation - TT-3022D Installation - TT-3022D Functional description Functional description Installation - TT-3022D Installation - TT-3022D Functional description Functional description The power consumption for the sleep mode position reporting and SCADA reporting application can be estimated by the fol- lowing values: Receive power is approx.
  • Page 23 If the Transceiver is unable to get synchronisation the indicator will be off. Please notice that the TT-3022D during power-up will at- tempt to auto-login to a preferred ocean region if currently logged out of the network.

  • Page 24: Connectors

    Connectors Connectors This section defines the functions and pin assignments of the TT- 3022D connectors. Figure 2 TT-3022D Capsat Transceiver rear panel 2.5.1 Power connector The battery connector is a standard DB-15 male, located on the rear panel of the TT-3022D at X1.

  • Page 25: Table 6 Tt-3022D Capsat Transceiver Dc Power Connector Pin Assignment

    Table 6 TT-3022D Capsat Transceiver DC Power Connector pin assignment Pin 6 is a unique feature for the TT-3022D Capsat Transceiver. When this pin is left floating the Transceiver is turned off, but if pin 6 is shorted to the negative terminal of the battery or DC- supply, the Transceiver will be switched on.

  • Page 26: Dte Communication Port

    Please see section 4.2.2 to alter baudrate and protocol settings. 2.5.2.2 DTE Connector interface The TT-3022D which is a DCE uses the signals listed in Table 8 (marked with a in the Used column). Please notice that DTE pin naming is used.

  • Page 27: Table 8 Tt-3022D X3 Pin Assignment

    CCITT Rec. V24 and the EIA/TIA- 232-E specifications. 2.5.2.3 Interfacing to peripherals To Interface the TT-3022D to a TT-3606C Message Terminal, sim- ply use the communication cable enclosed in the delivery. The TT-3022D optionally uses either hardware or software flow control.

  • Page 28: I/O Connector

    Installation - TT-3022D Connectors Connectors Software flow control is accomplished by connecting the DTR and CTS, allowing both TT-3022D and the peripheral to control data flow by means XON XOFF. ENQ/ACK cannot be used. 2.5.3 I/O Connector The I/O connector X4...

  • Page 29: Table 9 Tt-3022D X4 Pin Assignment

    Digital input with pull-up (RS-410N). I5 (I) Digital input with pull-up (RS-410N). Table 9 TT-3022D X4 pin assignment The I/O connector, a standard DB-15 female connector, is located on the rear panel of the transceiver and is marked X4. 2.5.3.1...
  • Page 30 Installation - TT-3022D Installation - TT-3022D Connectors Connectors Installation - TT-3022D Installation - TT-3022D Connectors Connectors Geographic position, latitude and longitude GGA Global Positioning System fix data (includes time of posi- tion) Time and date are sent out when the Transceiver/GPS is in navigation mode. The time in the position strings and the Time-and-date string are al- ways the same.
  • Page 31 Connectors Connectors Installation - TT-3022D Installation - TT-3022D Connectors Connectors Installation - TT-3022D Installation - TT-3022D An empty GLL string is sent out when there is no built-in GPS or before the GPS module has been started by the Transceiver.

  • Page 32: Printer Port

    Installation - TT-3022D Installation - TT-3022D Connectors Connectors Installation - TT-3022D Installation - TT-3022D Connectors Connectors 2.5.4 Printer port The printer port connector X5 is located on the rear panel. This parallel interface conforms to the standard Centronics inter- face used e.g. on IBM compatible PC's.

  • Page 33: Grounding

    Built-in GPS (optional) Built-in GPS (optional) Installation - TT-3022D Installation - TT-3022D Built-in GPS (optional) Built-in GPS (optional) Installation - TT-3022D Installation - TT-3022D 2.5.5 Grounding RF-grounding of an Integrated Capsat System requires special attention. Each unit shall have its own individual low-inductance earth connection.

  • Page 34: Gps Specifications

    Installation - TT-3022D Installation - TT-3022D Built-in GPS (optional) Built-in GPS (optional) Installation - TT-3022D Installation - TT-3022D Built-in GPS (optional) Built-in GPS (optional) 2.6.1 GPS specifications The GPS receiver module tracks 12 GPS satellites . The following power-up time estimates are available, from field test.

  • Page 35: Mounting Bracket

    Mounting bracket Installation - TT-3022D Installation - TT-3022D Mounting bracket The TT-3022D Capsat Transceiver is supplied with an universal mounting plate (41-107093-A) which allows mounting to e.g. a ta- ble. Figure 3 TT-3022D Capsat Transceiver mounting plate All dimensions in mm...

  • Page 36: Figure 4 Front Panel Of The Tt-3022D Capsat Transceiver With Mounting Bracket

    Mounting bracket Installation - TT-3022D Installation - TT-3022D Mounting bracket Mounting bracket Figure 4 Front panel of the TT-3022D Capsat Transceiver with mounting bracket All dimensions in mm It is recommended that the Transceiver is mounted in an open air location.

  • Page 37: Figure 6 Tt-3022D Mounting Bracket

    Mounting bracket Mounting bracket Installation - TT-3022D Installation - TT-3022D Mounting bracket Mounting bracket Installation - TT-3022D Installation - TT-3022D Figure 6 TT-3022D mounting bracket All dimensions in mm 25Jul00 25Jul00 Page Page 2-21 2-21 25Jul00 25Jul00 Page Page 2-21...
  • Page 38 Installation - TT-3022D Installation - TT-3022D Mounting bracket Mounting bracket Installation - TT-3022D Installation - TT-3022D Mounting bracket Mounting bracket This page is intentionally left blank Page Page 2-22 Page Page 2-22 2-22 2-22 25Jul00 25Jul00 25Jul00 25Jul00...

  • Page 39: System Installation

    System Installation System Installation This chapter provides specific information enabling you to install the TT-3022D Fishery Capsat system with a minimal effort. The default, or factory configuration is described, together with pro- cedures for altering this configuration. The TT-3000S Integrated Capsat system consists of the following...

  • Page 40: Table 12 Capsat System Component Power Requirements

    TT-3022D Capsat Tran. incl. TT-3005M 4.4W Rx Antenna & GPS. Max. Floating DC (10-32V). 90W Tx TT-3022D Capsat Tran in sleep mode. incl. < 1mW antenna TT-3606C Message Terminal. Floating 9V DC 2.5W from TT-3022D. TT-3608A Printer 220AC or option 010 DC supply floating (10.5 - 32V)

  • Page 41: Fuses

    Read the safety summary at the front of this manual before installing or operating the TT-3022D Transceiver As a guide-line, please note the equipment fuse location given in Table 13.

  • Page 42: Compass Safe Distance

    12A T. Transceiver incl. located on the rear antenna. panel. TT-3606C Message No fuse Terminal ( 9V floating DC from TT-3022D ) TT-3042D Remote Internally accessed, 1 A mT Alarm Distress Box remove top cover with printer TT-3042C Remote No fuse...

  • Page 43: Table 14 Compass Safe Distance

    System Installation System Installation Compass Safe Distance Compass Safe Distance System Installation System Installation Model Compass Safe Distance TT-3022D, Transceiver 0.5 m TT-3005M Maritime Antenna 0.3 m TT-3042C, Remote Alarm/Distress 0.5 m TT-3606C, Message Terminal 0.5 m TT-3608A, Hard copy printer 2.0 m...

  • Page 44: Antennas

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas Antennas This section describes the different antennas types, which can be delivered with the TT-3000S Fishery Capsat system. The mount- ing consideration regarding the antennas and the choice of an- tenna cable are also described.
  • Page 45 It has a modular construction that allows easy ex- change of antenna elements. The antenna is designed to work with the Capsat transceivers TT- 3020C, TT-3022D and TT-3022C. The TT-3005M antenna is fully compatible with the Inmarsat-C GMDSS (General Maritime Distress and Safety System) specifica- tions, , and can also receive GPS signals while not transmitting.

  • Page 46: Table 15 Tt-3005M Technical Specifications

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas TT-3005M Inmarsat-C/GPS omnidirectional Maritime Antenna antenna, RHC polarised. G/T: -23 dB/K at 5° elevation EIRP: 14 dBW ± 2dB at 5° elevation. Temperature: -35°C to 55°C operating, -40°C to 80°C storage. Dimensions (H x D): 178 mm x 122 mm.

  • Page 47: Table 16 Tt-3020C Capsat Transceiver Antenna Cable Types

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation 3.3.1.2 Antenna cable The TT-3005M Antenna specifications requires that the total maximal attenuation at 1.65 GHz must be less than 17 dB, and the maximal total (short-circuited in one end) DC resistance must not exceed 0.7 Ohms.

  • Page 48: Figure 8 Tt-3005M 1'' Tube Mounting

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas with the enclosed self-bonding tape, disabling water from pene- trating the connection. 3.3.1.3 Mounting The TT-3005M maritime antenna is constructed for 1” tube mounting. Figure 8 TT-3005M 1’’ Tube Mounting It is important to notice that the pole mount device has to be dis- connected from the antenna body when the antenna cable should be mounted.
  • Page 49 Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation 3.3.1.4 Transceiver Configuration This antenna is designed to use a very low amount of power. To ensure that the transceiver detects the antenna as connected the voltage output of the transceiver has to be reduced. Issuing the following command in the transceiver shell does this: “Se —f 0”...

  • Page 50: Tt-3005B Landmobile/Fishery Antenna

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas 3.3.2 TT-3005B Landmobile/Fishery Antenna Capsat Figure 9 TT-3005B Landmobile/Fishery Antenna This is an omni-directional antenna with built-in LNA/HPA elec- tronics, it is very compact and is designed to operate on vehicles and vessels under almost all weather conditions.

  • Page 51: Table 17 Tt-3005B Technical Specifications

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation TT-3005B Landmo- Inmarsat-C/GPS omnidirectional bile/Fishery Antenna antenna, RHC polarized. G/T: -23 dB/K at 5° elevation EIRP: 14 dBW ± 2dB at 5° elevation. Temperature: -35°C to 55°C operating, -40°C to 80°C storage.

  • Page 52: Table 18 Tt-3022D Capsat Transceiver Antenna Cable Types

    SA12272, 15.0 mm The SA12272 cable with N connectors (11N-50-12-35C) and two adapters N female to TNC male (33TNC-N-50-51) Table 18 TT-3022D Capsat Transceiver Antenna Cable types (TNC - TNC) for TT-3005B antenna. All antenna cables are double shielded. Page Page 3-14...

  • Page 53: Figure 10 Tt-3005B Mounting Holes

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation The antenna cable may run together with radar or navigator ca- bles. Separate cable ditch is not required. If you install your system in a permanent location, we recommend that you, after the installation of the antenna, wrap the connector with the enclosed self-bonding tape, disabling water from pene- trating the connection.

  • Page 54: Figure 11 Tt-3005B Mounting

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas Figure 11 TT-3005B Mounting It is possible to purchase a 1.5’’ tube mounting kit (option 001), which makes it possible to mount the antenna as shown in Figure 12, that is either with the antenna cable inside or outside the tube.

  • Page 55: Figure 12 Tt-3005B 1.5'' Tube Mounting Kit (Option 001)

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation Figure 12 TT-3005B 1.5’’ tube mounting kit (option 001) 3.3.2.4 Low antenna power in Rx mode The TT-3005A Antenna Rx power can be reduced from 1.1W with (14V) to 0.7W with (9V). For information on how to reduce the antenna power, please refer to section 4.2.3.

  • Page 56: Tt-3001B Option 001 Maritime Antenna

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas 3.3.3 TT-3001B Option 001 Maritime Antenna Figure 13 TT-3001B opt. 001 Maritime Antenna This is an omni-directional antenna with built-in LNA/HPA elec- tronics designed to operate on vessels. The antenna housing is sealed and contains no user serviceable parts.

  • Page 57: Table 19 Tt-3001B Opt. 001 Technical Specifications

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation TT-3001B Opt. 001 Inmarsat-C/GPS omnidirectional Maritime Antenna antenna, RHC polarised. G/T: -23 dB/K EIRP: 14 dBW ± 2dB at 5° elevation. Temperature: -35°C to 55°C operating, -40°C to 80°C storage. Dimensions (H x G): 237 mm x 150 mm conical ex.

  • Page 58: Table 20 Tt-3022Dcapsat Transceiver Antenna Cable Types (N - Tnc)

    Antennas 3.3.3.2 Antenna cable If you are using the TT-3022D Transceiver with a TT-3001B opt. 001 antenna with N connector, use cable with N and TNC con- nectors. The specification of this antenna requires that the total maximum attenuation at 1.65 GHz must be less than 16 dB, and the maximal total (short-circuited in one end) DC resistance must not exceed 0.7 Ohms.

  • Page 59: Antenna Mounting Considerations

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation If you install your system in a permanent location, we recommend that you, after the installation of the antenna, wrap the connector with the enclosed self-bonding tape, disabling water from pene- trating the connection.
  • Page 60 System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas Distance to HF antennas > 5 m Distance to VHF antennas > 4 m Distance to magnetic compass > 3 m The antenna is designed to provide satellite coverage even when the vessel has pitch and roll movements up to 15°.

  • Page 61: Figure 15 Inmarsat-C Antenna Mounting

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation Zenith Horizon Horizon Obstructions should be below these Figure 15 Inmarsat-C Antenna Mounting If an obstruction such as a pole or a funnel is unavoidable, the following guidelines apply: According to IMO resolution 807 the distance to the obstruction should be so large, that the obstruction only covers 2 degrees.

  • Page 62: Safety Distance For Antenna Units

    System Installation System Installation Antennas Antennas System Installation System Installation Antennas Antennas Max obstruction angle 2 degree Figure 16 Inmarsat-C Antenna mounting near pole or funnel 3.3.5 Safety Distance for Antenna Units The safety levels for the Thrane & Thrane INMARSAT-C Antenna Units are based on the ANSI standard C95.1-1982 "American Na- tional Standard Safety Levels With Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 300 kHz to 100 GHz"...

  • Page 63: Table 21 Radiated Intensity

    Antennas Antennas System Installation System Installation Antennas Antennas System Installation System Installation tighter recommendations correspond to a minimum safety dis- tance of 60 cm at 16 dBW. To be sure that this distance is respected the Thrane & Thrane INMARSAT-C Antenna Units are provided with a label declaring a minimum safety distance on 2 feet (61 cm).

  • Page 64: Tt-3606C Message Terminal

    System Installation System Installation TT-3606C Message Terminal TT-3606C Message Terminal System Installation System Installation TT-3606C Message Terminal TT-3606C Message Terminal TT-3606C Message Terminal Power Login Mail Thrane & Thrane Figure 17 TT-3606C Message Terminal. 3.4.1 PCMCIA Card The PCMCIA card is essentially a block of static RAM and a lith- ium battery to power the RAM’s when the card is not inserted or external power is turned off.

  • Page 65: Aux I/O

    TT-3606C Message Terminal TT-3606C Message Terminal System Installation System Installation TT-3606C Message Terminal TT-3606C Message Terminal System Installation System Installation 3.4.3 AUX I/O This is a 4 bit interface with open collector outputs. Each bit could be used for turning on/off external equipment, or reading status from a switch.

  • Page 66: Specifications

    System Installation System Installation TT-3606C Message Terminal TT-3606C Message Terminal System Installation System Installation TT-3606C Message Terminal TT-3606C Message Terminal 3.4.5 Specifications Model TT-3606C Message Terminal Dimensions (H x W x D) 37mm, 218mm, 119mm Weight 0.8 Kg Mountings Mounting Bracket, Opt 921 Power requirements 9 to 32 V Non-floating DC, max.

  • Page 67: Mounting

    TT-3606C Message Terminal TT-3606C Message Terminal System Installation System Installation TT-3606C Message Terminal TT-3606C Message Terminal System Installation System Installation 3.4.6 Mounting Figure 18 3606C Dimensions All dimensions in mm Figure 19 3606C 0pt. 920 (921) Mounting Cradle. 25Jul00 25Jul00 Page Page 3-29 3-29...

  • Page 68: Tt-3616A Interconnection Box (Optional)

    System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) TT-3606C 2A mT Transceiver TT-3616A Interconnection Box 9-32V DC (X6) ARCNET ARCNET Term/Open Figure 20 TT-3616A Interconnection Box.

  • Page 69: Connector Interface

    TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation Figure 21 Left: TT-3616C Factory setting , Middle: Include +5V to X5, X6, Right: ARCNET and 5V Inverted Polarity 3.5.1 Connector interface Signal Name...

  • Page 70: Table 25 Tt-3616A X2 Pin Assignment

    System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) Signal Name Signal Name Signal Name Signal Name DCD, Data Carrier Detect RXD, Receive Data TXD, Transmit Data DTR, Data Terminal Ready GND, Signal Ground DSR, Data Set Ready...

  • Page 71: Table 27 : Tt-3616A X5, X6 Pin Assignment

    TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation Signal Name Signal Name Signal Name Signal Name Not used +5Vout or GND ARCNET ARCNET return GND, Signal Ground or +5Vout Not used Table 27 : TT-3616A X5, X6 pin assignment...

  • Page 72: Specifications

    System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) 3.5.2 Specifications Model TT-3616A Dimensions H x W x D 30 mm, 139.5 mm, 64 mm Weight 0.21 kg Mountings...

  • Page 73: Mounting

    TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation TT-3616A Interconnection Box (optional) TT-3616A Interconnection Box (optional) System Installation System Installation 3.5.3 Mounting Figure 22 Mounting holes for TT-3616A 25Jul00 25Jul00 Page Page 3-35 3-35 25Jul00 25Jul00 Page Page 3-35...

  • Page 74: Tt-3680B Power Supply (Optional)

    System Installation System Installation TT-3680B Power Supply (optional) TT-3680B Power Supply (optional) System Installation System Installation TT-3680B Power Supply (optional) TT-3680B Power Supply (optional) TT-3680B Power Supply (optional) The TT-3680B Power Supply operates on either 115 VAC or 230 VAC selected internally. The maximum power supplied is 200 W. The TT-3680B Power Supply has a connection for emergency batteries and offers automatic switch-over in case of a drop-out on the mains.

  • Page 75: Mounting

    TT-3680B Power Supply (optional) TT-3680B Power Supply (optional) System Installation System Installation TT-3680B Power Supply (optional) TT-3680B Power Supply (optional) System Installation System Installation 3.6.1 Mounting Figure 24 Mounting holes for TT-3680B 25Jul00 25Jul00 Page Page 3-37 3-37 25Jul00 25Jul00 Page Page 3-37...

  • Page 76: Tt-3608A Hard Copy Printer (Optional)

    System Installation System Installation TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) System Installation System Installation TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (op- tional) Figure 25 TT-3608A Hard copy printer Connecting the TT-3608A Hard Copy Printer to the Transceiver offers the highest security for hard copies of incoming messages even if the TT-3606C is turned off.

  • Page 77: Mounting Plate

    TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) System Installation System Installation TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) System Installation System Installation The TT-3608A Hard Copy Printer is supplied with a mounting frame, offering horizontally oriented secured mounting. The printer connector is located on the rear panel.
  • Page 78 System Installation System Installation TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) System Installation System Installation TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) displayed by the message terminal. When "Printer almost out of paper" condition occurs the audio alarm in the transceiver will sound and the FAULT LED/relay in the TT-3042C Remote Alarm/Distress Box will be turned on.

  • Page 79: Mounting

    TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) System Installation System Installation TT-3608A Hard Copy Printer (optional) TT-3608A Hard Copy Printer (optional) System Installation System Installation 3.7.3 Mounting Figure 27 Mounting holes for TT-3608A 25Jul00 25Jul00 Page Page 3-41 3-41 25Jul00 25Jul00...

  • Page 80: Tt-3608G Printer Unit

    Up to 7 TT-3608G printer units with different address setting can be placed on various locations onboard a ship, all connected to one TT-3022D transceiver. The TT-3608G is equipped with remote turn-on for power saving configurations. Remote turn-on is enabled by jumper setting.

  • Page 81: Configuration

    TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation 3.8.1 Configuration. Before installation of the TT-3608G, configuration of Arcnet ad- dress should take place. The Printer Unit Arcnet address is configured by setting an 8 po- sition DIP switch located under the paper inlet.
  • Page 82 System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit Position Setting Fact. Address off,off,off: off,off,on: off,on,off: off,on,on: on,off,off: on,off,on: on,on,off: on,on,on: Printing Direction Reverse off: Normal Not Used NMEA/Aux.Port NMEA 0183 1 NMEA Serial data 2...

  • Page 83: Installation

    TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation 3.8.2 Installation To following brief outline may be used to get the TT-3608G up and running as a printer together with a Thrane & Thrane trans- ceiver which supports Arcnet - hardware as well as software wise.

  • Page 84: Cable

    System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit 3.8.3.2 X2 I/O The pinout of the I/O connector (15 pole SubD) is listed in Table Function Distress/Urgent, 100 Ohm, Open Collector Safety, 100 Ohm, Open Collector Routine, 100 Ohm, Open Collector Not Connected...
  • Page 85 TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation • The Arcnet bus will have two ends and both of these should be terminated with a 100 Ohm resistor (± 1%). The TT-3608G does NOT contain any termination-resistor.

  • Page 86: Specifications

    System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit 3.8.5 Specifications Indication Visual: LED indicators with dim function. Text back-light with dim function. Call reset OK button Arcnet/serial DB 15M Arcnet: Twisted pair/bus topology, port conn:...

  • Page 87: Tt-3042C Remote Alarm/Distress Box (Optional)

    TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) The TT-3042C Remote Alarm/Distress Box is connected to the TT- 3022D by means of the Transceivers X4 I/O connector, through which it is also powered.
  • Page 88 Cable screen included The cable used for the connection between the TT-3042C Remote Alarm/Distress Box and the TT-3022D Transceiver, has to be cho- sen in accordance with the specifications in Table 34. The Remote Alarm/Distress Box is in full compliance with the In- marsat CN114 and IEC 945 specifications.
  • Page 89 TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation Model Model Model Model TT-3042C, Remote Alarm/Distress Box TT-3042C, Remote Alarm/Distress Box TT-3042C, Remote Alarm/Distress Box TT-3042C, Remote Alarm/Distress Box General Specifications...

  • Page 90: Mounting

    System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) 3.9.1 Mounting Figure 30 TT-3042C Outline drawing Page Page 3-52 Page Page 3-52 3-52 3-52...
  • Page 91 TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation Figure 31 TT-3042C Outline drawing with console bracket 25Jul00 25Jul00 Page Page 3-53 3-53 25Jul00 25Jul00...
  • Page 92 If required, the cable relief are easily moved from the end of the TT-3042C to the bottom feed hole for hidden cable installation. It is possible to connect 2 TT-3042C’s in parallel to the TT-3022D Capsat Transceiver, from which they are supplied with power and control signals in one cable.

  • Page 93: Tt-3042D Remote Alarm / Printer Unit

    TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation 3.10 TT-3042D Remote Alarm / Printer Unit The TT-3042D Remote Alarm Distress Box with additional printer unit is an optional unit unless it is used as main printer in a GMDSS system.

  • Page 94: 3.10.1 Configuration

    Up to six Remote Alarm units and one Local Printer unit all with different Arcnet address setting can be placed on various loca- tions onboard ship, all connected to one TT-3022D Capsat trans- ceiver with Arcnet. The TT-3042D is equipped with remote turn-on for power saving configurations.
  • Page 95 TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation printer connected locally on it’s printer port the transceiver printer is considered as the only Local Printer and the TT-3042D will be treated as Remote Alarm with additional printer unit.
  • Page 96 3 When this address is selected the TT-3042D is configured as local printer. This address should not be used if a TT-3608A Hard Copy Printer is connected to the TT-3022D transceiver. 4 Jumper W2 and W9 should be in position 1-2 (low) in Rx mode to achieve optical isolation, else position 2-3 (high).

  • Page 97: 3.10.2 Installation

    TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation 3.10.2 Installation To following brief outline may be used to get the TT-3042D up and running as a printer together with a Thrane &...

  • Page 98: 3.10.4 Cable

    System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit 3.10.3.2 X2 I/O The pinout of the I/O connector (15 pole SubD) is listed in Table Function Distress/Urgent, 100 Ohm, Open Collector Safety, 100 Ohm, Open Collector...
  • Page 99 TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation • The Arcnet bus will have two ends and both of these should be terminated with a 100 Ohm resistor (±...

  • Page 100: 3.10.5 Specifications

    System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit 3.10.5 Specifications Indication Visual: LED indicators with dim function. Text back-light with dim function.

  • Page 101: Distress Button Test

    Esc key. After Distress Test Mode is termi- nated activating the Distress Buttons will again result in a Distress Alert being sent. 3.11.1 TT-3022D Transceiver Test of the Distress facility on the Transceiver: Please note that the transceiver has to be in Distress Test Mode...

  • Page 102: 3.11.2 Tt-3042C Remote Alarm/Distress Box

    System Installation System Installation Distress Button Test Distress Button Test System Installation System Installation Distress Button Test Distress Button Test Pressing the Distress button will make the Distress LED flash and will activate an intermediate acoustic signal. If the Distress button is held for at least 5 seconds the acoustic signal will stop and the Distress LED will light constantly to indicate that a Distress Alert is send.

  • Page 103: 3.11.4 Tt-3606C Message Terminal

    Distress Button Test Distress Button Test System Installation System Installation Distress Button Test Distress Button Test System Installation System Installation Test of the Distress Button on the Remote Alarm Box: Please note that the transceiver has to be in Distress Test Mode Please note that the transceiver has to be in Distress Test Mode Please note that the transceiver has to be in Distress Test Mode Please note that the transceiver has to be in Distress Test Mode...

  • Page 104: General Interconnect Information

    In Figure 34 is an example of the TT-3000S Fishery Capsat Sys- tem. An Integrated Capsat System is delivered with all necessary in- terconnecting cables, except the cable for the TT-3042C Remote Alarm/Distress Box. TT-3005M Maritime Antenna Capsat TT-3022D Capsat Fishery TT-3608A Transceiver DC-Printer 37-107050B NMEA...

  • Page 105: 3.12.1 Cable Spec. Diagram

    General interconnect information General interconnect information System Installation System Installation General interconnect information General interconnect information System Installation System Installation 3.12.1 Cable spec. diagram Figure 35 TT-3000S interconnection cable diagram (TT-3606C opt. 920) 25Jul00 25Jul00 Page Page 3-67 3-67 25Jul00 25Jul00 Page Page...
  • Page 106 System Installation System Installation General interconnect information General interconnect information System Installation System Installation General interconnect information General interconnect information Figure 36 TT-3000S with TT-3616A interconnection cable diagram (TT-3606C opt. 921) Page Page 3-68 Page Page 3-68 3-68 3-68 25Jul00 25Jul00 25Jul00 25Jul00...

  • Page 107: System Generation

    System Generation System Generation System Generation Terminal Mode The TT-3022D Capsat Transceiver parameters may be accom- plished by means of: TT-3606E Message Terminal. IBM compatible PC running DOS version 2.00 or later, with a communication software or the Message Terminal emulating software TT-10202A/B.

  • Page 108: Computerised Equipment/Handheld Terminals

    Computerised equipment/handheld terminals Your computer/terminal should display the ASCII characters as they appear being send from the TT-3022D Capsat Transceiver. No alphabet or protocol conversion should take place. Initialise System Parameters The System Parameters are initialised using the 'set -b' command.

  • Page 109: Altering Baudrate And Protocol Settings

    Initialise System Parameters Initialise System Parameters System Generation System Generation Initialise System Parameters Initialise System Parameters System Generation System Generation Mobile Number : 492380049 Enter new number > An Inmarsat-C mobile number is always in the range: 400000000 to 499999999 If you type a number outside this range the Transceiver will ig- nore it.
  • Page 110 System Generation System Generation Initialise System Parameters Initialise System Parameters System Generation System Generation Initialise System Parameters Initialise System Parameters Factory settings is obtained by pressing the Stop button at power- Please notice that changing the baudrate or other protocol set- tings in terminal mode only changes the transceiver configura- tion.

  • Page 111: Antenna Voltage Settings

    Initialise System Parameters Initialise System Parameters System Generation System Generation Initialise System Parameters Initialise System Parameters System Generation System Generation 4.2.3 Antenna voltage settings The available antenna voltage shall be configured depending on which antenna that is used together with the transceiver. It Table 39 the configuration based on selected antenna is listed.

  • Page 112: Tt-3606C Configuration Mode

    System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode TT-3606C Configuration Mode To access the Configuration Mode enter the code ‘config’ on the Main Menu page (please see Figure 37). PRESS ↵...
  • Page 113 TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation 01nov99 Menu 12:31 1 Send Message 2 Received Mail 3 Address Book 4 Satellite Status 5 Operating Modes 6 Received EGC 7 Distress/Alert Figure 37 3606C Main Menu Configuration...

  • Page 114: Dnid Selection

    System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode 4.3.1 DNID Selection On this page Position Reporting DNIDs and the corresponding LESs are entered. Enter LES number and corresponding DNID for the different Ocean Regions.

  • Page 115: Les Selection

    TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation 4.3.2 LES Selection On this page the LESs to operate through are entered. Enter LES number for the different Ocean Regions. PRESS G Key to position the cursor over the OK ? field.

  • Page 116: Egc Setup

    System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode 4.3.3 EGC Setup On the EGC Setup page the user can select which EGC services to subscribe to. The yes/no fields are toggled using the SPACE Key. The fields Navtex Areas and Navtex Serv.

  • Page 117: Auto Addressing

    TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation 4.3.4 Auto Addressing On this page Auto Addressing can be selected and the Fixed Ad- dress Information entered. Using Fixed Address - On, Off. The value of the Use Fixed Address field can be chanced/toggled by pressing the SPACE bar.
  • Page 118 System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode System Generation System Generation TT-3606C Configuration Mode TT-3606C Configuration Mode PRESS ↵ ↵ ↵ ↵ Key - when selected an * appears before the selec- tion. The cursor moves to the ANS: field if Telex is selected, otherwise the cursor moves to OK ?.

  • Page 119: Tt-3606C System Menu

    TT-3606C System Menu TT-3606C System Menu System Generation System Generation TT-3606C System Menu TT-3606C System Menu System Generation System Generation TT-3606C System Menu To access the System Menu, , , , enter the code ‘system’ on the Main Menu page (please see Figure 37). PRESS ↵...

  • Page 120: Update Program

    System Generation System Generation TT-3606C System Menu TT-3606C System Menu System Generation System Generation TT-3606C System Menu TT-3606C System Menu Insert PCMCIA Card to be formatted. Confirm with the ↵ ↵ ↵ ↵ Key. When the formatting is completed the user is informed about the size of the Card.

  • Page 121: Hardware Status

    TT-3606C System Menu TT-3606C System Menu System Generation System Generation TT-3606C System Menu TT-3606C System Menu System Generation System Generation 4.4.3 Hardware Status From the System Menu page PRESS F or G Key to position the cursor over the Hardware Status Option. Press ↵...

  • Page 122: Mobile Number

    System Generation System Generation TT-3606C System Menu TT-3606C System Menu System Generation System Generation TT-3606C System Menu TT-3606C System Menu 4.4.4 Mobile Number From the System Menu page PRESS F or G Key to position the cursor over the Mobile Number Option. Press ↵...

  • Page 123: Tt-3606C - System Code Update

    TT-3606C - System Code Update TT-3606C - System Code Update System Generation System Generation TT-3606C - System Code Update TT-3606C - System Code Update System Generation System Generation TT-3606C - System Code Update The system code in the TT-3606C Message Terminal can be up- dated in 2 different ways: 4.5.1 Update Method 1.
  • Page 124 System Generation System Generation TT-3606C - System Code Update TT-3606C - System Code Update System Generation System Generation TT-3606C - System Code Update TT-3606C - System Code Update PRESS the A Key and keep it pressed while powering up the Message Terminal.

  • Page 125: Commissioning Of The Equipment

    It is recommended that a Link Test (or Performance Verification Test in Inmarsat terminology) is run before using the equipment. The Link Test automatically verifies that the TT-3022D Capsat Transceiver is capable of both receiving and transmitting infor- mation according to Inmarsat-C specifications. No other tests are required.

  • Page 126: Link Test

    Link Test Link Test being commissioned. If the automatic login fails a manual attempt should be performed. The TT-3022D Capsat Transceiver is now logged in and ready to work. Link Test The Link Test consist of three parts: Message Reception Test Message Transmission Test and Distress Test.
  • Page 127 Details of a Link Test Details of a Link Test Commissioning of the equipment Commissioning of the equipment Details of a Link Test Details of a Link Test Commissioning of the equipment Commissioning of the equipment The SEND indicator starts flashing and after a while it will light continuously (the data is being transmitted) and then starts flash- ing again.
  • Page 128 Commissioning of the equipment Commissioning of the equipment Details of a Link Test Details of a Link Test Commissioning of the equipment Commissioning of the equipment Details of a Link Test Details of a Link Test This page is intentionally left blank Page Page 5-4 Page...

  • Page 129: Index

    Index Index Index Index Index Antenna cable ..................3-9, 3-14 Antenna not connected................4-5 Antenna safe distance................3-21, 3-24 ArcNet ....................2-2, 2-12 Auto Addressing..................4-11 Baudrate....................2-10 Cable loss .................. 3-9, 3-14, 3-20 Compass safe Distance................2-3, 3-4 Distress alert ..................... 3-49 Distress button ..................2-7, 3-49 Distress button test ..................
  • Page 130 Index Index Index Index GPS ......................2-17 Hardware Status ..................4-15 Interconnection Box ...................3-30 LES.......................2-7 LES Selection....................4-9 Link test ....................5-1, 5-2 Lithium battery.....................2-5 Login indicator.....................2-6 Mail indicator....................2-7 Mobile number ..................4-2, 5-1 Mobile Number..................4-16 NCS......................5-1 NMEA 0183 communication ...............2-12 On/off features .....................2-5 Operating temperature ................2-2 Power indicator....................2-6 Program update ..................4-17 Radar or navigator cables ............
  • Page 131 Send indicator ..................... 2-7 Serial port communication................. 2-10 Shipping carton ................... 1-2 Sleep mode ....................2-5 Stop button ....................2-6 Storage temperature ................... 1-2 Technical specifications, TT-3022D ............. 2-1 Update Program ..................4-14 X1........................ 2-8 X3......................2-10 X4......................2-12 X5......................2-16...

Table of Contents
