SIGLENT SHS800 series User Manual

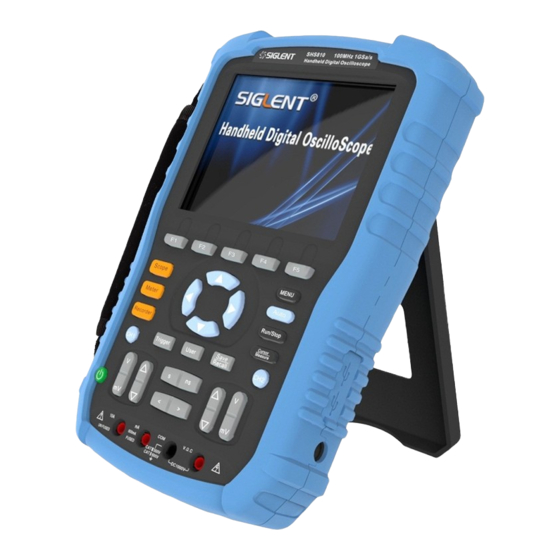

Handheld digital oscilloscope
Hide thumbs Also See for SHS800 series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SHS800 Series Handheld Digital Oscilloscope
UM03008-E05A
SIGLENT TECHNOLOGIES CO,.LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHS800 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT SHS800 series

Summary of Contents for SIGLENT SHS800 series

  • Page 1 User Manual SHS800 Series Handheld Digital Oscilloscope UM03008-E05A SIGLENT TECHNOLOGIES CO,.LTD...
  • Page 3 1. Copyright © SIGLENT TECHNOLOGIES CO., LTD. 2. Information in this manual takes place of all data published before. 3. SIGLENT company reserves the rights to change specifications and price. 4. Contents in this manual are not allowed to be copied, extracted and translated without permission by the company.

  • Page 4: Safety Information

     isolated inputs when using multimeter ports in a CAT Ⅲ environment. Do not apply voltages that higher than 600 V from earth ground to the isolated inputs when using multimeter ports in a CAT Ⅱ environment. II SHS800 Series...
  • Page 5 The matter should then be referred to qualified personnel. Warning: Standard probe 10:1 supports CAT Ⅱ 400V. Optional probe supports CAT Ⅱ 1000V and CAT Ⅲ 600V SHS800 Series III...

  • Page 6: Safety Operation Of Battery

    Safety Operation of Battery SHS800 series handheld digital oscilloscope can be used to test float signal when power supplied by battery. When using the double channels to test float signal, the two channels should be connected to the same earth ground, because the earth ground of...

  • Page 7: Introduction Of Shs800 Series

    Introduction of SHS800 Series This manual mainly introduces SHS800 series Handheld Digital Oscilloscope. The SHS800 series is a high performance handheld oscilloscope with great range of dynamic input scope. It has small volume which convenient to carry, compact interface and etc. It satisfies the most needs of outside measurement and improves working efficiency greatly.

  • Page 8: Accessories Of Shs800

     An USB cable  A adapter  Meter pens for multimeter  A Probes calibrated device  A CD (including EasyScope3.0 computer software system)  Optional Probe 100MHz high-voltage safety probe CAT II 1000V,CAT III 600V VI SHS800 Series...

  • Page 9: Table Of Contents

    Table of Contents Safety Information ........................II Safety Operation of Battery ....................IV Introduction of SHS800 Series ....................V Function Characteristics ......................V Accessories of SHS800 ......................VI Chapter 1 Accidence ........................1 Accidence of the Front Panel and User Interface ..............1 Function Check .........................
  • Page 10 Chapter 6 Service and Support ....................64 Maintain Summary........................64 Contact SIGLENT ........................64 Appendix A: Default Setup ..................... 65 Appendix B: Battery Installation .................... 67 Appendix C: Daily Maintaining and Cleaning ..............6 8 VIII SHS800 Series...

  • Page 11: Chapter 1 Accidence

    You’d better get an understanding of the front panel before you operate the SHS800 series Handheld Digital Oscilloscope. The following contents introduce the function of the front panel. With its help you could be familiar with the operations of the SHS800 in a short time. Figure 1-1 Front Panel SHS800 Series 1...
  • Page 12 The arrow keys include these functions: direction keys, moving trigger level, setting the trigger level to zero, choosing menu, setting horizontal position to zero, moving cursor. Figure 1-2 Side Panel Description 1. USB Device 2. USB Host 3. power input port 2 SHS800 Series...
  • Page 13 14. Channel’s coupling states 15. “2” is a symbol of channel 2 9. Frequency Counter 16. “1” is a symbol of channel 1 10. Shows the trigger level 11. Shows the time base 17. “T “shows the trigger level SHS800 Series 3...

  • Page 14: Function Check

    Please adjust your probe or repeat all the operations above if necessary. Multimeter meter pen To avoid obtaining no measurements or unnecessary damage to the SHS800, you should use the right jack when measuring current, voltage and other measure. 4 SHS800 Series...

  • Page 15: Chapter 2 Using The Scope

    Math math menu Horizon horizon menu reference waveform menu MEAU on/off menu Auto automatic setting control menu Run/Stop sample/Stop button Cursor cursor menu Measure automatic measurement menu Trigger trigger menu Save/Recall save/Recall menu User utility menu SHS800 Series 5...

  • Page 16: Automatic Settings

    3. Adjust time base and voltage range manually to obtain waveforms needed if necessary. Figure 2-1 Automatic Setting CH1/CH2 Channel Functions Press 【CH1】/【CH2】 to enter CH1/CH2 channel menu. Figure 2-2 Channel Menu 1 6 SHS800 Series...
  • Page 17 Turn on/off invert function. Filter Enter the FILTER menu. To Zero Set waveform vertical position and trigger level to zero. Next Page Page 2/2 Return to the first page of CH1/CH2 menu. Figure 2-4 Digital Filter Function Menu SHS800 Series 7...
  • Page 18 5. Press F2 to choose a filter type. For example: input a signal with BW 20M and choose Upp_Limit. 6. Use up and down arrow keys to set the filter range. 7. Press 【F1 】to turn on the filter Figure 2-5 Before Turn On the Digital Filter 8 SHS800 Series...

  • Page 19: Scope's Function Menu

    Scope’s Function Menu The button 【Scope】 includes the following functions: Figure 2-7 Scope Function Menu Acquire Signals System Press 【Scope】 and choose Acquire to enter acquiring system. See Figure 2-8. Figure 2-8 Acquire Signals system function menu SHS800 Series 9...
  • Page 20 Real Time Sampling: The scope has the highest real-time sampling rate up to 1GSa/s. Interpolation (Sinx/x) Application Example Operation steps: 1. Press 【Scope】 and choose Acquire to enter acquiring system. 2. Press 【F4】 to choose Ream Time. 3. Press 【F3】 to choose Sinx/x. Figure 2-9 Sinx Interpolation 10 SHS800 Series...

  • Page 21: Display System

    Sets the length of time each displayed Persist 2 sec sample point remains displayed. 5 sec Infinite Intensity <Intensity> Set waveform intensity. Brightness <Brightness> Set grid brightness. Enter the second page of DISPLAY Next Page Page 1/2 menu. Figure 2-12 Display Menu 2 SHS800 Series 11...
  • Page 22 3. Press 【Next Page】 to enter the second page of DISPLAY menu. 4. Press 【F1】 to choose XY mode. 5. Adjust the vertical range of CH 1 and CH 2 to obtain the best XY waveform. Figure 2-13 XY Waveform 12 SHS800 Series...

  • Page 23: Math Waveform

    4. Press 【F5】 to enter the second page of waveform operation menu. 5. Use functions keys and the arrow keys to change the parameter to display the best waveform. 6. Press 【F4】 to exit the math waveform operation. SHS800 Series 13...
  • Page 24 Transients or bursts pulse. The Hamming better frequency ranges of the signals have great resolution than difference from before to after. Hanning. Best magnitude Single frequency waveforms, to Blackman resolution but worst find higher order harmonics. frequency resolution. 14 SHS800 Series...

  • Page 25: Horizontal System

    Figure 2-19 FFT Waveform Horizontal System Press 【Scope】 and then choose Horizontal to enter the horizontal function menu. Figure 2-20 Horizontal System Menu Delay scan: zoom in the waveform being chosen. Memory depth: normal memory and long memory. SHS800 Series 15...
  • Page 26 500MSa/s at this time. 2. Press 【Run/Stop】 respectively at common storage and long storage. 3. Change time base to let the whole waveform display on the screen. 4. Count memory depth. Sampling Points=Sampling Rate *Sampling Time Figure 2-22 Normal Memory 16 SHS800 Series...

  • Page 27: Reference Waveform

    3. Press 【Scope】 and choose Ref to enter horizontal system. 4. Choose the reference waveform need to save and press 【F4】 to save. 5. Press 【F5】 to show the reference waveform. 6. Press 【F5】 to exit the reference waveform. SHS800 Series 17...

  • Page 28: Cursor And Measure System

    Use cursors to measure time parameters. CH1、CH2 Choose the signal to be measured by Source MATH cursors. REFAREFB Cur A Use arrow keys to adjust t position of cursor Cur B Use arrow keys to adjust t position of cursor 18 SHS800 Series...
  • Page 29 3. Adjust cursor A and cursor B to trace waveform with arrow keys , Figure 2-28 Cursor Trace Menu Automatic measure mode: This mode will take effect with automatic measurements. The instruments will display cursors while measuring parameters automatically. These cursors demonstrate the physical meanings of these measurements. SHS800 Series 19...

  • Page 30: Parameter Measure

    Press this button to enter the Delay measure menu. All Mea Press this button to enter the All Measurement menu. Return Return to the home page of MEASURE menu. Voltage parameter measure Figure 2-31 Parameter Measure Function Menu 20 SHS800 Series...
  • Page 31 -Dut Display the corresponding icon and measure value of your selected 、 time measure parameter. Return to the home page of Return MEASURE menu. Delay parameter measure Figure 2-33 Delay Measure Function Menu SHS800 Series 21...
  • Page 32 The maximal voltage during the measure. Vtop The minimal voltage during the measure. Vbase The difference between the Vtop and the Vbase voltage. Vamp The arithmetic mean over the first cycle of the waveform. Vavg 22 SHS800 Series...
  • Page 33 2. The time between the first falling edge of source 1 and the last rising edge of source 2. The time between the first falling edge of source 1 and the last falling edge of source 2. SHS800 Series 23...
  • Page 34 2. Adjust time base and vertical scale to obtain the best waveform. 3. Press 【Cursor/Measure】 and choose All. 4. Turn on Voltage, Time, Delay and will display 32 types of parameter measure. Figure 2-36 32 Types of Parameter Measure 24 SHS800 Series...

  • Page 35: Trigger System

    . The setup detects a trigger and acquires Single waveform, then stop. Setting Enter the “Trigger Setup Menu”. Figure 2-38 32 Trigger Setting Function Menu SHS800 Series 25...
  • Page 36 Hold off Reset hold off time to 100ns. Reset Return Return the first page of the menu. Figure 2-39 Signal Rise Trigger Menu Pulse Trigger Figure 2-40 Pulse Trigger Function Menu 1 26 SHS800 Series...
  • Page 37 Auto Select the type of triggering; Normal mode is best Mode Normal for most Pulse Width trigger applications. Single Setup Enter the “Trigger setup menu”. Next Page Page 2/2 Return to the first page of the menu. SHS800 Series 27...
  • Page 38 If you want to adjust the trigger level, please make sure that you have exited the SetWidth menu. Figure 2-42 Pulse Trigger Video Trigger Figure 2-43 Video Trigger Menu 1 28 SHS800 Series...
  • Page 39 When you want the oscilloscope to acquire a Single single waveform, press the “SINGLE ”button. Set up Enter the “Trigger setup menu”. Next Page Page 2/2 Return the first page of “Video Trigger menu”. SHS800 Series 29...
  • Page 40 If you want to adjust the trigger lever, please make sure that you have exited the Line Number menu. Figure 2-45 Video Trigger Slope trigger Figure 2-46 Slope Trigger 1 30 SHS800 Series...
  • Page 41 This mode allows an un-triggered, scanning waveform at 100 ms/div or Mode slower time base settings. Use this mode when you want to see only Normal valid triggered waveforms; when you use this mode, the oscilloscope does not SHS800 Series 31...
  • Page 42 Set trigger type information for CHY signal Edge Pluse Mode Set trigger type of the vertical channel signal video slope Triggering on rising edge. Slope Triggering on falling edge. Triggering on rising edge and falling edge. Set up Enter the “Trigger setup menu”. 32 SHS800 Series...

  • Page 43: Save And Recall System

    Table 2-30 Saving Setups to USB Flash Drive Function Menu Option Setting Instruction Type Setup Used to save/recall the SHS800’s setup menu Save File Save the setup data of the SHS800 to USB flash drive. Save Enter the waveform save/recall interface. SHS800 Series 33...
  • Page 44 Save waveforms to USB flash drive. Save Accomplish the storage. Saving Picture Waveform interface image can be saved to USB flash drive, but they can’t be recalled. You can view them on correlative computer software. Figure 2-53 Saving Picture Menu 34 SHS800 Series...
  • Page 45 Operation steps: 1. Press 【Save/Recall】 and press 【F1】 (Type) to choose Waveforms. 2. Insert USB flash drive to USB host (you will get the message: USB flash driver connects successfully!). 3. Press 【F2】 (Save to) to choose File. SHS800 Series 35...
  • Page 46 Choose the file to be recalled and press Recall at the memory interface, which you complete the recalling operation. Notes: The picture in the SHS800 with a “BMP” postfix can’t be recalled, but you can open it in computer with relative software. 36 SHS800 Series...

  • Page 47: Utility System

    SHS800 connects to the computer through USB cable. When you execute EasyScope Computer software, please select Computer. At this time the computer icon displays on the screen. Next Page Page 2/4 Enter the third page of the menu. SHS800 Series 37...
  • Page 48 1min 2min 5min 10min Screen saver 15min 30min Set the time of screen saver 1hour 2hour 5hour Date/Time Set the date and time of the SHS800. Next Page Page4/4 Return to the first page of the menu. 38 SHS800 Series...
  • Page 49 Print the screen image on a white Ink Saver background when you select On. Layout Portrait/Landscape The output direction of the printer. Set the type of the Displays settings available on your Paper Size paper. PictBridge compatible printer. SHS800 Series 39...
  • Page 50 Waveform record: record waveform with a designated interval until reaching the end frame. When recording CH1 or CH2 waveform, users can set the interval between frames. The recorder can record 2500 frames waveform. Figure 2-65 Waveform Record Menu 40 SHS800 Series...
  • Page 51 Set start frame. Curr_Frame Select current frame to be played. End Frame Set end frame. Press to return the waveform recorder main Return menu. Return to the first page of Play Back function Next Page Page 2/2 menu. SHS800 Series 41...
  • Page 52 3. Set replay Start Frame, Curr_frame, End Frame and return to the first page of the menu. 4. Set 【Replay】 Mode, Interval and press 【F2】 to perform waveform replay. 5. Press 【F1】 to choose Off mode to exit waveform record. Figure 2-68 Waveform Record Figure 2-69 Waveform Play Back 42 SHS800 Series...

  • Page 53: Chapter 3 Using The Multimeter

    2. The key 【Rub/Stop】 can hold the screen. Figure 3-1 Multimeter User Interface 1. the range of the multimeter 2. staffs 3. reading value 4. input ports 5. relative value 6. the indicate of input connection 7. test type 8. operation type SHS800 Series 43...

  • Page 54: Making Dc And Ac Voltage Measurement

    Scale value. Choose measurement scale manually and there Manual will be a warring when over the scale. Tendency Plot Plot with the measurements according to time Figure 3-2 DC Voltage Measurement Figure 3-3 AC Voltage Measurement 44 SHS800 Series...

  • Page 55: Making Resistance Measurement

    4. Choose Manual or Auto according to the real demand. 5. Read resistance value. Notes: When measuring resistant, please make sure that the circuit is power off and the capacitance is discharged to avoid damage to the SHS800. SHS800 Series 45...

  • Page 56: Making Diode Measurement

    2. Insert the red probe to the V.Ω.C banana jack input and the black probe to the COM. Connect the other end of probes to the diode to be measured. 3. Read the value. Making Continuity Measurement Figure 3-6 Continuity Measurement 46 SHS800 Series...

  • Page 57: Making Capacitance Measurement

    2. Insert the red probe to the V.Ω.C banana jack input and the black probe to the COM. Connect the other end of probes to the measured object. 3. Turn on /off the relative according to the real demand. 4. Read measurement value. SHS800 Series 47...

  • Page 58: Making Dc And Ac Current Measurement

    Making DC and AC Current Measurement Figure 3-8 DC Current “mA” Measurement Figure 3-9 DC Current “A” Measurement Figure 3-10 AC Current “mA” Measurement 48 SHS800 Series...
  • Page 59 COM. Connect the other end of probes to the power or load to be measured. 3. Turn on /off the relative according to the real demand. 4. Choose Manual or Auto according to the real demand. 5. Read current value. SHS800 Series 49...

  • Page 60: Chapter 4 Using The Recorder Functions

    Waveform Recorder: Record real time waveform without gap or space. That is to say every time the SHS800 can save all captured waveform data and then replay them. The maximal recording length of waveform recorder is 7M data points. 50 SHS800 Series...

  • Page 61: Oscilloscope Trend Plot

    Quilt the current data and start to Trend Plot Restart record afresh. Choose the parameter Voltage time delay Parameter A/B to be measured. measurement Run/Stop Stop or continue recording data Next Page Page 1/2 Enter the second page of the menu. SHS800 Series 51...
  • Page 62 2. Press 【Recorder】 to enter the recorder main menu. 3. Press 【F1】 to choose Scope Plot. 4. Choose measured parameter A/B and start recording the trend plot. The scope 5. Press 【F5】 to pause or continue recording data. 52 SHS800 Series...
  • Page 63 9. Data analysis: move cursor, analyzing data over time. Figure 4-6 Analyzing Trend Plot 10. Save waveform: save the recorded waveform to exterior storage device to make more detailed analysis. 11. Press Return to exit trend plot. SHS800 Series 53...

  • Page 64: Waveform Recorder

    Choose a place to save record, including memory USB flash Save mode disk. USB flash driver saves only under 2.5s/div and above time base. Exit the submenu and return to the waveform recorder main return menu. Figure 4-9 Waveform Recorder Replaying Mode Menu 54 SHS800 Series...
  • Page 65 4. Press 【F3】 to set the waveform recorder. Such as 5. Press 【F5】 to return to the waveform recorder main menu. 6. Press 【F1】 to enter record interface. 7. Press 【F4】 to set storage mode. Interior and USB flash disk storage mode. SHS800 Series 55...
  • Page 66 Figure 4-11Waveform Recorder Interface Waveform replay 9. Press 【F2】 to replay waveform. You can replay the recorded waveform for several times and you can Advance or back off at any time. 10. Press 【F5】 to exit the waveform recorder. 56 SHS800 Series...

  • Page 67: Multimeter Trend Plot

    4. DC/AC 5. manual/auto 6. the real time 7. the sample time of the cursor point. 8. the parameter measurement value of the cursor point 9. vertical scale 10. vertical scale Figure 4-13 Multimeter Trend Plot Menu 1 SHS800 Series 57...
  • Page 68 1. Input a measured signal correctly. See chapter 3 Using the Multimeter. 2. Press 【F5】 to enter Trend Plot at the multimeter main menu. The SHS800 will record the measurement value of the input port continuously and plot measurements over time. 58 SHS800 Series...
  • Page 69 7. Data analysis: move cursor, analyzing data over time. Figure 4-16 Analysis Trend Plot Data 8. Save waveform: save the recorded waveform to exterior storage device to make more detailed analysis. 9. Press Return to exit trend plot. SHS800 Series 59...

  • Page 70: Chapter 5 Prompting And Troubleshooting

    Flash Drive to the USB Host port.  USB Flash Drive Pull Out! : This information will appear when you pull out the USB Flash Drive.  Store Data Success! : Save setup data, waveform data or Figure data to the 60 SHS800 Series...
  • Page 71 “Save” option button or the “S/div” knob before inverting the USB Flash Drive to the USB Host port will appear this information on the screen.  Record Wave Success! ：This message will appear when you finish recording waveforms. SHS800 Series 61...

  • Page 72: Troubleshooting

    “single”, and check the trigger level is whether or not over the wave range. If yes, please put the trigger level to the middle position or set the trigger mode to the “Auto” position. In another hand, you could choose the “Auto” button to set up automatically. 62 SHS800 Series...
  • Page 73 If you can’t use the SHS800 normally all the same, please contact with SIGLENT servicing center, we will provide service for you. 8. The other kind of trouble, please contact with SIGLENT servicing center. For more details please see service and support.

  • Page 74: Chapter 6 Service And Support

    This warranty extends only to the original buyer or ender-user c of a SIGLENT authorized reseller. If a product or CRT proves defective within the warranty period, SIGLENT will provide repair or replacement as described in the complete warranty statement.

  • Page 75: Appendix A: Default Setup

    Level Type Source CURSOR Horizontal (voltage) +/-3.2divs Vertical (time) +/-5divs Three Mode Options Sampling ACQUIRE Averages Sampling Method Real Time Type Vectors Persist Gird DISPLAY Intensity Brightness Format Menu Display Infinite Type Setups SAVE/RECALL Save To Device 65 SHS800 Series...
  • Page 76 Mode Auto Coupling Type Video Source Polarity Normal TRIGGER (Video) Sync All Lines Standard NTSC Mode Auto Type Slope Source TRIGGER Condition (Slope) Time 1.00ms Mode Auto Type Alternative TRIGGER Source (Alternative) Mode Edge Coupling Slope Rise SHS800 Series 66...

  • Page 77: Appendix B: Battery Installation

    In the case of not working, battery must be charged once every three months. Figure 1 Figure 2 Figure 3 67 SHS800 Series...

  • Page 78: Appendix C: Daily Maintaining And Cleaning

    To avoid damage to the surface of the instrument or probes, do not use any abrasive or chemical cleaning agents To avoid water causing electric short circuit or body hurt, Make sure the instrument is completely dry before reconnecting it to a power source SHS800 Series 68...
