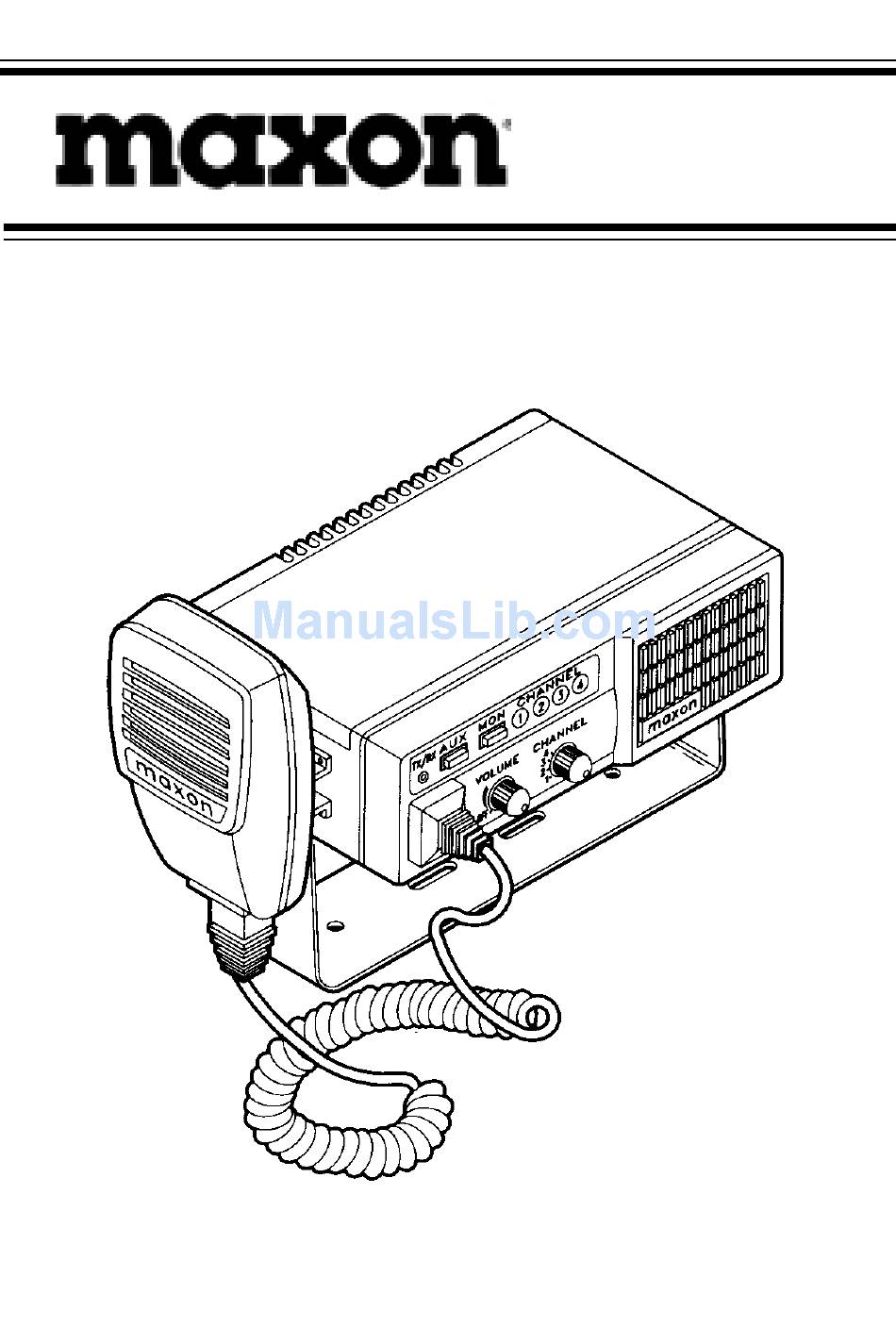

- Page 1 SM-2000 Series Synthesized Scanning Mobile Operating Instructions...
- Page 2 Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs.
-
Page 3: Table Of Contents
Table of Contents Safety Information Unpacking Information SM-2000 Series Features Installation Safeguards Description of Radio Components Controls and Connectors SM-2000 Series Operation Power On -Volume Channel Select Channel Monitor Transmit Receive Scan Modes Channel Scan Normal Scan Priority Channel Scan... -
Page 4: Safety Information
(RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupa- tional Safety and Health Act and Federal Communications Commission limits. - Page 5 WARNING - DO NOT operate the transmitter of a mobile radio when someone outside the vehicle is within two feet (0.6 meter) of the antenna. WARNING - DO NOT allow children to operate transmitter-equipped radio equipment. CAUTION - DO NOT operate the radio near electrical blasting caps or in an explosive atmosphere.
-
Page 6: Unpacking Information
Remove and carefully inspect the contents of your package for the following items: Radio • Microphone • DC power supply cord • Radio mounting bracket and hardware • Microphone bracket and hardware • Operating instructions • If any items are missing, please contact your Maxon Dealer. -
Page 7: Sm-2000 Series Features
SM-2000 Series Features • Channel Scan • Priority Channel Scan • Look-Back Channel • CTCSS/DCS Tone Signalling • Programmable Channel Spacing - Allows 12.5 KHz / 25 KHz channel spacing per channel. • Programmable High / Low Power - Each channel may be programmed to use either high or low power settings. -
Page 8: Installation Safeguards
Installation Safeguards WARNING - DO NOT install the unit where it would interfere with the proper operation of automatic collision protection devices (air bags). WARNING - DO NOT install the unit where it would likely cause injury in case of accident. - Page 9 C. Install the radio unit to the bracket using the two large black screw knobs, two spring lock washers, and two large flat washers. NOTE - Depending on the location where the radio unit will be mounted, it may be more convenient to install the microphone bracket before installing the radio unit into the radio bracket.
- Page 10 F. Push the modular microphone connector into the microphone jack (located in the front of the radio unit) until a click is heard. CAUTION - Some electronic fuel injection, anti- skid braking systems, cruise controls, and vehicle alarms may be prone to interference from radio frequency energy or may malfunction due to a lack of protection from RF energy.
-
Page 11: Description Of Radio Components
Description of Radio Components Controls and Connectors TX / RX Indicator - The tri-color LED identifies the following conditions by color: red when transmitting; green when tone-coded squelch calls are received; amber to signal busy channel; flashing green when in scan mode (if programmed). - Page 12 Controls and Connectors, Continued Antenna Connector - SO-239 connector. Must be connected to a properly installed 50 ohm antenna. Power Connector - Polarized plug: 13.8 VDC input for NEGATIVE GROUND SYSTEMS ONLY. External Speaker Connector - A 3.5 mm diameter jack is provided for a 4 ohm external speaker.
-
Page 13: Sm-2000 Series Operation
SM-2000 Series Operation Power On - Volume Rotate the on / off-volume control clockwise to turn the power on. Adjust to the desired volume level. Turn the radio off by rotating the volume control counter-clockwise to detent. Channel Select Set the channel selector knob to the desired channel. -
Page 14: Transmit
transmission has a CTCSS or DCS tone that matches a tone programmed for receiving. If the LED is not illuminated, a clear channel is present. If enabled, the channel can be monitored for activity before transmitting by going off-hook. Transmit When the channel is clear, press and hold the P-T-T bar on the side of the microphone. -
Page 15: Scan Modes
Scan Modes Channel Scan Channel scan is a programmable feature that allows you to monitor a number of channels. Your dealer will help you define a channel scan list to be programmed into a scan channel location (any channel, 1 - 4). Once that channel location is selected, scan is initiated. -
Page 16: Priority Channel Scan
Priority Channel Scan A single channel may be programmed as the priority channel. The radio will constantly monitor this channel while scanning and when the radio has stopped on an active channel. If a call is detected on the priority channel, the radio will automatically move to and remain on the priority channel for as long as the priority conversation takes place. -
Page 17: Other Programmable Scan Features
Other Programmable Scan Features Look-Back Any channel, when not in the scan mode, can be pro- grammed to “look-back” at the priority channel. This feature is ideal for those who do not need scan as defined above but want to make sure they never miss a call on the priority channel if another channel has been selected. -
Page 18: Priority Only Tx
Part and / or Parts of the FCC Rules and Regulations. Consult with your Maxon Dealer or contact the nearest FCC Field Office for pertinent information related to obtaining a license. -
Page 19: Software Copyrights
Maxon. Furthermore, the purchase of Maxon products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applica-... -
Page 20: Warranty Statement
This warranty is not assignable or transfer- able. Maxon shall have no obligation to make repairs or to cause replacement required which result from normal wear and tear or necessitated in whole or in part by catastrophe, fault... - Page 21 FOR ANY PRODUCT WHICH DOES NOT COMPLY WITH THE WARRANTY SPECIFIED, THE SOLE REMEDY WILL BE REPAIR OR REPLACEMENT. IN NO EVENT WILL MAXON AMERICA, INC. BE LIABLE TO THE BUYER OR ITS CUSTOMERS FOR ANY DAMAGES, INCLUDING ANY SPECIAL, INCIDENTAL,...
-
Page 22: Quick Reference Guide
Quick Reference Guide Controls and Function Buttons VOLUME Turns radio on and adjusts volume. VOLUME Turns radio off. CHANNEL Selects the operating channel. • Also initiates scan mode if • • programmed. • Used for after-market accessories. Monitors channel for activity; disables tone coded squelch options (only in receive mode). - Page 23 TX/RX The tri-color LED identifies: The radio is transmitting. Continuously on while P-T-T is being pressed. Green Reception of tone-coded squelch calls. Flashing Green The radio is in scan mode, if programmed. Amber Signals channel is busy. CHANNEL Green back-lit numbers indicates the channel selected.
- Page 24 Business Radio Division Maxon America, Inc. 10828 NW Air World Drive Kansas City, Missouri 64153 Phone: 816 / 891-6320 Fax: 816 / 891-8815...
