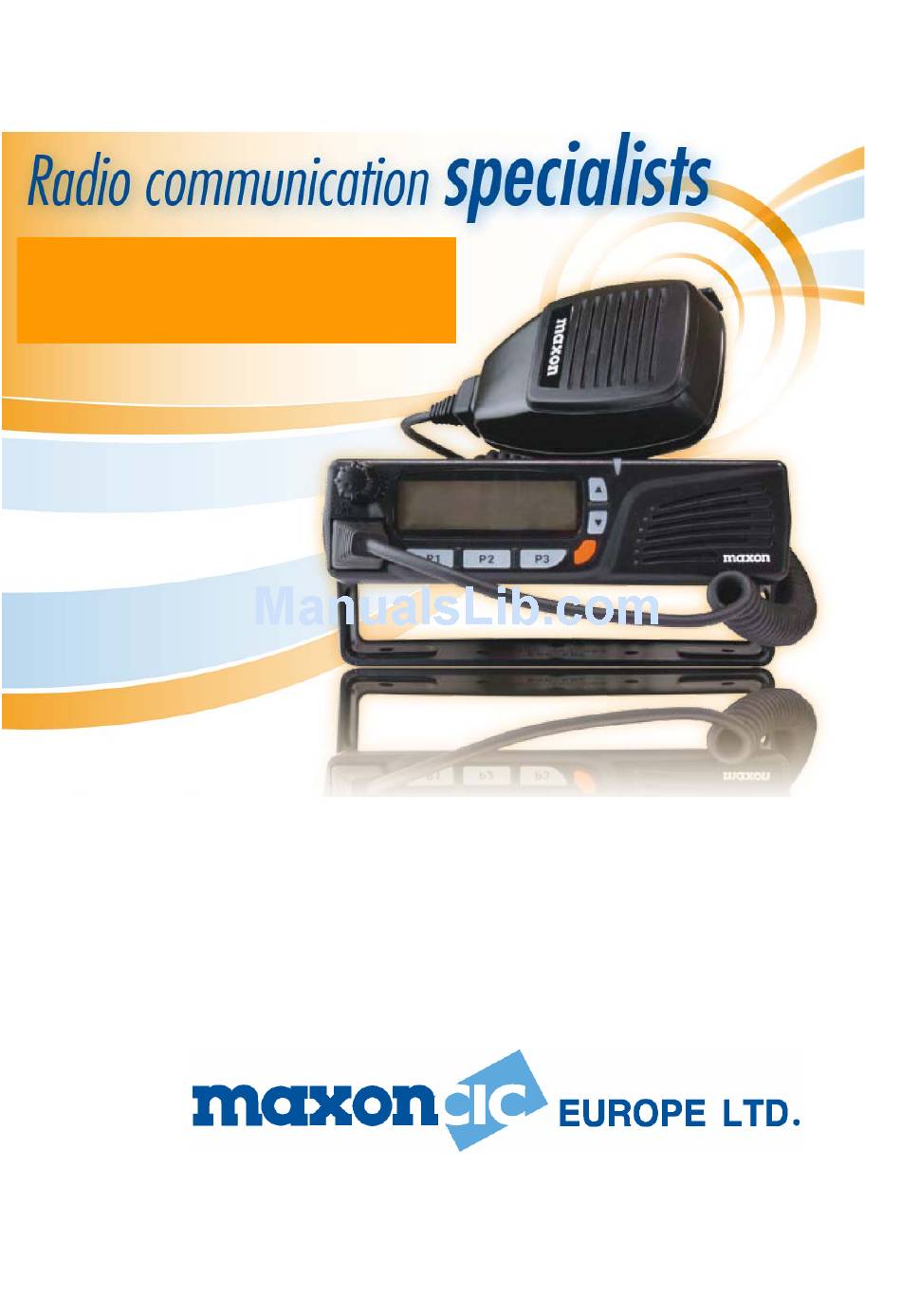

- Page 1 SM2102 User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Number 1. Safety- Warnings…………………………………………… 2. Introduction………………………………………………….. 3. Preparing for use…………………………………………… 4. Panel Description…………………………………………… 5. Key Features………………………………………………… 6. Status Indicators and Alert Tones………………………. 7. Basic Operation…………………………………………….. 8. Function Display……………………………………………. 9. Supplied Accessory and Optional Accessories...…….. DOC……………………………………………………………. - Page 3 1. SAFTEY WARNINGS 1. WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. 2. NEVER operate the radio transmitter suitable artificial load or a correctly specified antenna is connected. 3.
-
Page 4: Introduction
2. Introduction Thank you for purchasing the Maxon PM Mobile range The SM2102 mobile radios are packed full of sophisticated user and system features which allow the radios to be tailored to meet the requirements of most radio networks today. - Page 5 2. VOLUME CONTROL KNOB To turn the radio ON and OFF, rotate the knob clockwise ON and anticlockwise to turn OFF. Rotate the knob to adjust the audio output level up and down. 3. FUNCTION DISPLAY Displays a variety of information, such as an operating channel number, SECALL Number, DTMF number and Volume level, etc.
-
Page 6: Key Features
5. Key Features ■ Wideband frequency separation ■ 2W or 25W Programmable output power ■ 208 Programmable Channels ■ D-SUB 15Pin Data Connector and Modem ■ Programmable 12.5 /25 KHz Channel Spacing ■ Channel Scan ■ Priority Channel Scan ■ Look Back Channel ■... -
Page 7: Status Indicators And Alert Tones
6. Status Indicators and Alert Tones Status Indicators LCD Message or COLOR DESCRIPTION SM2102 AUDIBLE TONE Model and Software version Power On shall be displayed after LCD Five Beeps All Display. Button Single Beep Busy Yellow Correct Call Green Transmit... -
Page 8: Basic Operation
To turn the radio off, rotate the control anti-clockwise until a click is heard. Your SM2102 radio has a sophisticated microprocessor control, which provides a range of audible alert tones. Upon each power-up, a quick melody indicates that the self-test of the microprocessor functions has been completed. - Page 9 CAUTION: Operation of the transmitter without a proper antenna installed may result in permanent damage to the radio. NOTE: The radio’s LED will glow red continuously when you have the PTT button pressed and the radio is transmitting Receive When you have finished transmitting, release the PTT button to receive. You are now in receive mode.
-
Page 10: Function Display
Function Display 1. Signal strength indicator: Indicates relative signal strength level (1bar poor 4 bar good) 2. TX Indicator: Appears while transmitting 3. Scan Indicator: Appears at when scanning has been programmed. 4. P Scan Indicator: Appears at the Priority scan Channel when priority scanning has been programmed 5. - Page 11 SM2102 SERIES This product is marked with in accordance with the Class II product requirement specified in the R&TTE Directive 1999/5/EC. This equipment is intended for use in:- Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Iceland, Liechtenstein, Norway, Switzerland, Bulgaria, Romania &...
- Page 12 Maxon House, Cleveland Road, Hemel Hempstead, Hertfordshire, UK. HP2 7EY Tel: +44 (0) 1442 267777 Fax: +44 (0) 1442 215515 www.maxoncic.co.uk...
