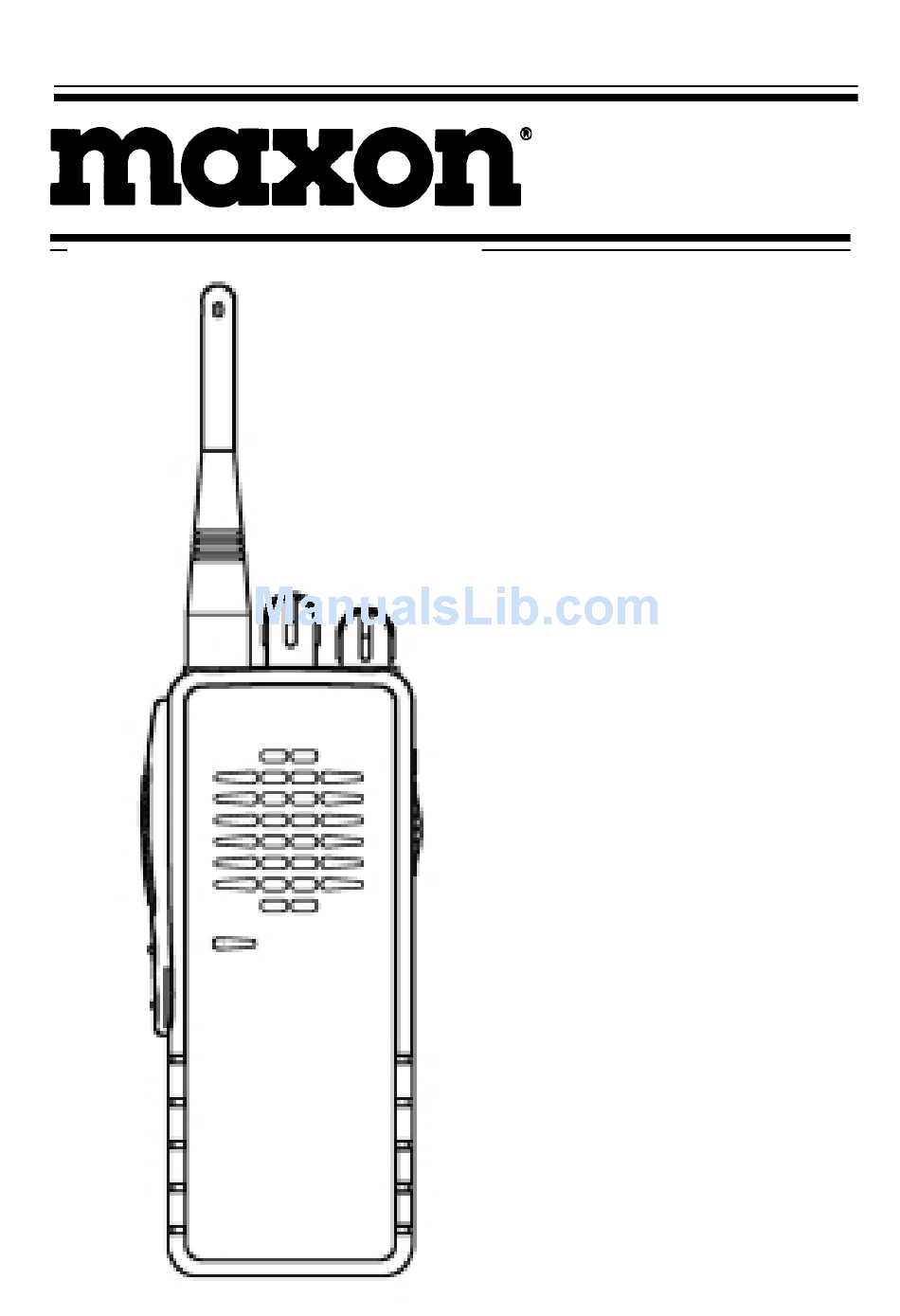

Page 1: Operating Instructions

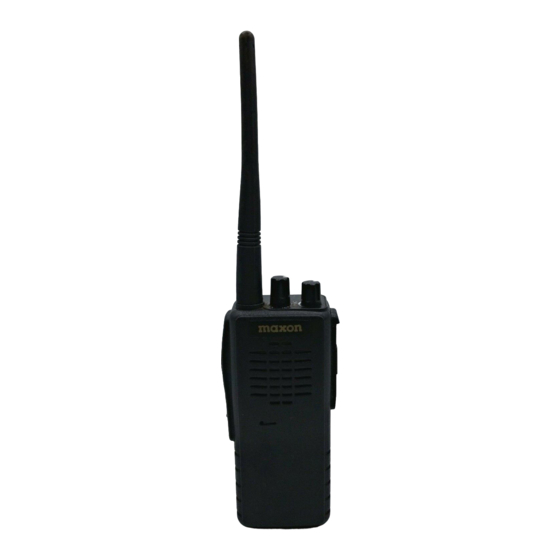

SP -300 Series Synthesized Scanning Radio (Models SP-310, SP-320, SP-330 & SP-340) Operating Instructions... - Page 2 We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs.
-
Page 3: Table Of Contents
Table of Contents Safety Information..............Unpacking Information............SP-300 Series Features............. Description of Radio Components......... Antenna Installation..............Installing and Removing the Battery Pack ......Attaching and Removing the Belt Clip........Battery Charging and Care............SP-300 Series Operation............Power On- Volume..............Transmit.................. Receive.................. -
Page 4: Safety Information
General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromag- netic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation... -
Page 5: Unpacking Information
Remove and carefully inspect the contents of your package(s) for the following items: Radio Battery Pack Antenna Spring Belt Clip Operating Instructions If any items are missing, please contact your Dealer or Maxon. SP-300 Series Features • Wideband frequency separation • 1/5 Watts programmable output power •... -
Page 6: Description Of Radio Components
Description of Radio Components Front view: 1) Antenna Receptacle 2) Channel Selector Knob 3) On/Off - Volume Control 4) Busy/TX/BT Indicator (top plate of radio) 5) Accessory Connector 6) Speaker 7) Microphone 8) Option Button 9) Monitor Button 10) Push-To-Talk (PTT) Button Not shown Belt Clip Battery Latch... -
Page 7: Antenna Installation
Antenna Installation Attach the antenna by turning clockwise into the antenna receptacle on top of the radio. Installing and Removing the Battery Pack Hold the radio face down in your hand. To attach the battery pack, pick up the pack by the sides and hold it so that the latch is facing upward. -
Page 8: Battery Charging And Care
Proper care and charging will extend life of your battery pack. Maxon offers two chargers for use with the SP-300 Series radio. Each model is sold separately and is available through your original purchasing Dealer. -
Page 9: Receive
NOTE: Federal Communications Commission Rules and Regulations require that you monitor a channel for activity before transmitting. NOTE: The tri-color LED located on the top panel can help with channel monitoring. It will glow amber if RF activity is present; or green if the transmission has a CTCSS or DCS tone that matches a tone programmed for receive in your radio. -
Page 10: Status Indicators And Audible Alert Tones
• Low battery condition • Selecting a channel with no programmed frequency * Indicates a function that is initially programmed into the radio by your Maxon Dealer. NOTE: All audible tones can be programmed off for silent operation. STATUS DESCRIPTION... -
Page 11: Scan Modes
Your Dealer will help you define a channel "scan list" to be programmed into a scan channel (any channel, 1- 4 on models SP-310 or 320) or (any channel, 1-16 on models SP-330 or SP-340). Once that channel location is selected, scan is initiated. -
Page 12: Other Scanning Features
Other Scanning Features • Look Back: Any channel, when not in the scan mode, can be programmed to "look back" at the "Priority" channel. This feature is ideal for those who do not need scan as defined above, but want to make sure that they never miss a call on the "Priority"... -
Page 13: Licensing And Service Information
Do not tamper with internal adjustments. Damage to the equipment and/or improper operation may result. There are no user serviceable items inside the radio. It is recommended that you return your radio to a qualified Maxon Dealer for any service or repairs. Recycling/Disposal of Batteries The U.S. -
Page 14: Software Copyrights
Maxon software programs stored in semi- conductor memories or other media. Laws in the United States and other countries preserve for Maxon certain exclusive rights for copy- righted software programs, including the exclusive right to copy or reproduce in any form the copyrighted software program. Accordingly,... -
Page 15: Limited Warranty
This warranty is offered to the initial end user and is not assignable or transferable. Topaz3 is not responsible for any ancillary equipment which is attached to or used in cojunction with Maxon products. - Page 16 For more information, contact: Topaz3, LLC 10828 NW Air World Drive Kansas City, Missouri 64153 (Within USA) Phone: 1-800-821-7848, Ext. 399 (Outside USA) Phone: 1-816-891-6320, Ext. 399 Fax: 816-891-8815 Expore our website: www.topaz3.com Printed in Thailand U.S. P/N: 680-090-0160...
