Maxon SM5402 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SM5402
Operating
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM5402 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxon SM5402

Summary of Contents for Maxon SM5402

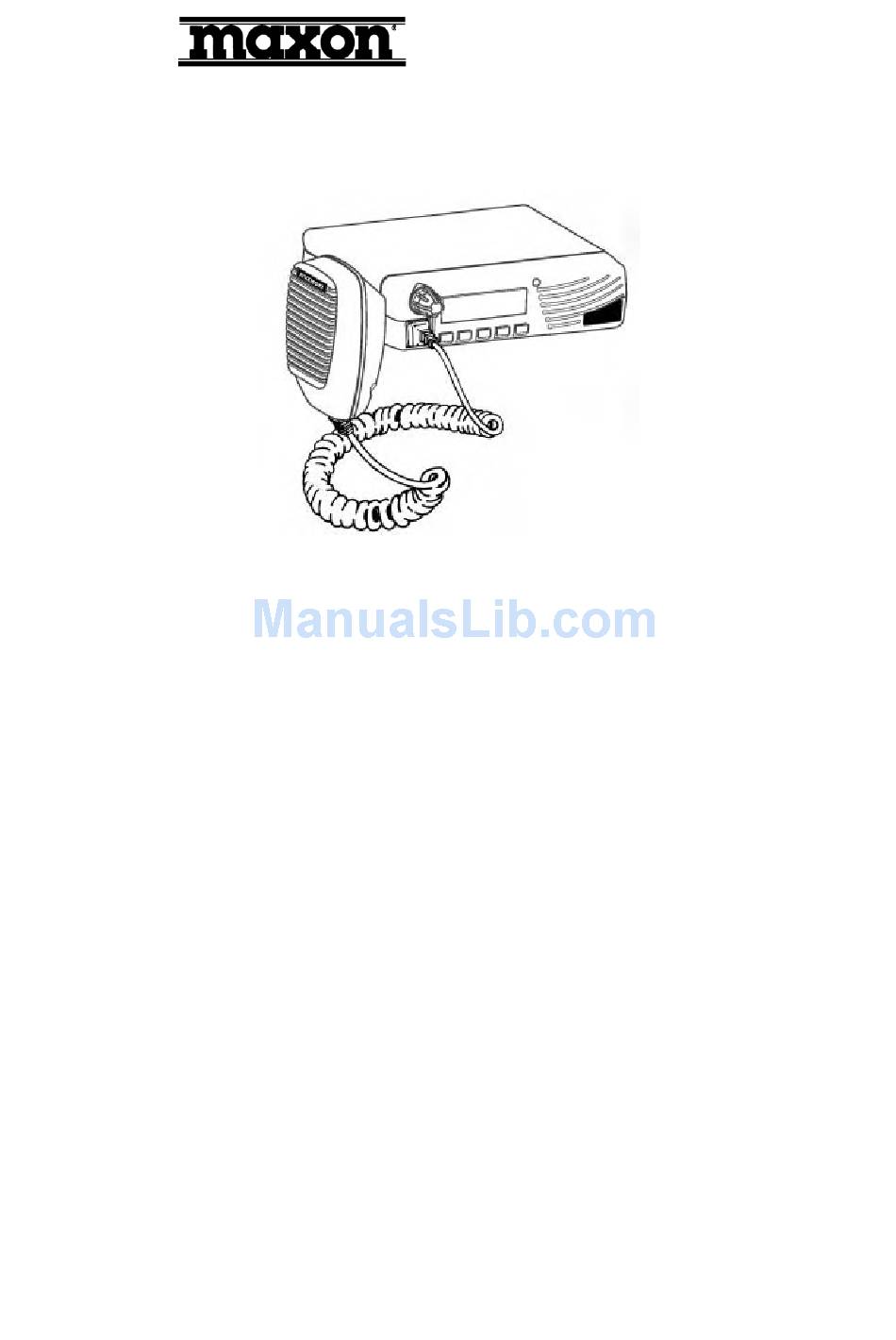

  • Page 1 SM5402 Operating Instructions...
  • Page 2 We urge you to thoroughly read this manual before operating the radio. Application of some functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs.
  • Page 3 ALWAYS use Maxon authorized accessories. Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be exceeded.
  • Page 4 WARNING - DO not operate the transmitter of a mobile radio when someone outside the vehicle is within two feet (0.6 meter) of the antenna. WARNING - DO not allow children to operate transmitter - equipped radio equipment. WARNING - DO not allow operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.
  • Page 5 Radio Microphone DC Power Supply Cord Radio Mounting Bracket and Hardware Microphone Bracket and Hardware Operating Instructions SM5402 Features Conventional radio operation 9 character display with icons Wideband frequency separation Programmable output power Programmable 12.5 / 25 kHz channel spacing...
  • Page 6 General Performance Specifications FTZ 17TR2049 July 88 TIA-603 IEC 68 Series EC 529 IP54 MIL STD 810 F Band (Tx & Rx) (Switching range without retuning) UHF (U2) 440 – 470MHz Channel Spacing 12.5kHz, / 25kHz (programmable) (12.5, /25kHz switchable by CPU control) RF Output Power 45W nominal (+/-10%) Modulation Type...
  • Page 7 Transmit @ 40W RF Normal output <10.0A Transmit @ 45W RF High output <11.0A Environmental Temperature Range Operating +15 to +35°C (nominal) -30 to +60°C (extreme), Storage Temperature Range -40 to +80°C (storage) Humidity EIA/TIA 603 (95%) Protection against ingress of IEC 529 IP54 dust and water Vibration...

  • Page 8: Installation Safeguards

    Installation Safeguards WARNING -DO NOT install the radio unit where it would interfere with the proper operation of automatic collision protection devices (air bags). WARNING - DO NOT install the radio unit where it would likely cause injury in case of accident. NOTE: The radio is not intended for operation in a positive ground vehicle.

  • Page 9: Description Of Radio Components

    alarms may be prone to interference from radio frequency energy or may malfunction due to a lack of protection from RF energy. If the vehicle contains such equipment, consult your Dealer to get help determining whether the electronic equipment in the vehicle will operate properly when the radio is transmitting.

  • Page 10: Channel Monitoring

    Turn the radio off by rotating the control counter clockwise. Trunked Mode Operation Your Maxon SM5402 Radio may be programmed to operate with both Trunked and Conventional modes. There are only a few differences in their operation and these are detailed as follows.
  • Page 11 transmission may occur. In Conventional Systems, there is no System “ handshaking” and voice transmission may start immediately Transmitting 1. Rotate the On / Off - Volume control clockwise to turn the power on. 2. Adjust On / Off - Volume control further clockwise to increase the volume level. Rotate counter clockwise to decrease volume level.

  • Page 12: Conventional Mode Operation

    Conventional Mode Operation Your Maxon SM5402 Radio may be programmed to operate in Conventional modes. Conventional mode may or may not require a Conventional repeater System. Radio to radio communications can also be accomplished in Conventional operation. How the Conventional mode is programmed is determined by your Dealer.

  • Page 13: Busy System Queuing

    Multiple-Function Keypad Description Your SM5402 Radio has five multiple function keypad buttons located on the front panel. An audible beep, if enabled by your Dealer, is heard each time an option button is depressed. * Up / Down Arrow Keys -These buttons will allow you to scroll Up or Down your preprogrammed Systems, Groups or option functions depending upon which button is pressed.

  • Page 14: Display Brightness

    from the list beginning with the oldest call. Pressing the mode button a second time will remove any unanswered calls and exit the call missed list. NOTE: Scanning will be disabled when your call list is being accessed. Display Brightness Display Brightness mode, allows you to change the brightness of the display.

  • Page 15: Public Address

    Second press and release of OPT will deactivate horn and light function. The horn and light function can be used in conjunction with the Dealer programmable Call Missed feature. The call missed feature will store up to 8 unanswered calls. Auxiliary Auxiliary mode, if previously selected as the OPT button function, will enable or disable an external speaker option which may have been added to your radio.
  • Page 16 Call Received.* Clear-To-Talk / Transmit, indicates you may now begin speaking. * Transmit not available, indicates you are denied transmit on that System / channel.* Busy System Queuing, indicates your radio has been placed in the queuing mode and is attempting to access the System.
  • Page 17 Two Beeps List Scan Modes Your SM5402 Radio may be programmed for one or more scan modes depending upon your Dealer programming. LTR Manual Group Scan To enable LTR manual Group scan, enter normal scan by a press and release of the scan button on the radios front panel.

  • Page 18: Conventional Scanning

    Scan Modes, Continued Conventional Group Scan To enable Conventional Group Scan, press and release the scan button on the front panel. The scan icon will show in the display. A press and hold of the scan button will activate priority scan. A second press and release will turn scan off.
  • Page 19 Your PM-200 series can be programmed for one of six different scan types, determined by your Dealer. To enable Scan or Priority scan functions , press and release the scan button for scan or press and hold for priority scan functions. Only those channel groups included in the scan list will be scanned.
  • Page 20 Priority only TX RX: Your radio will receive calls from its selected scan list. After a scanned call is received the scan wait time will be active allowing you to pick up the microphone and answer the call. If the call goes unanswered scanning will resume after scan wait time has expired.
  • Page 21 TMF Microphone Operation The optional TMF microphone can be used in conjunction with your radio to operate on telephone interconnect systems, if programmed by your Dealer. The ( Phone) icon will be displayed when an interconnect Group has been selected in the trunked mode, no icon will be shown for conven-tional operation.

  • Page 22: Clearing A Dialed Number

    The Federal Communications Commission requires the operator of this radio be properly licensed under the applicable Part and/or Parts of the FCC Rules and Regulations. Consult with your Maxon Dealer, or contact the nearest FCC field office for information about obtaining a license.

  • Page 23: Software Copyrights

    Maxon. Furthermore, the purchase of Maxon products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Maxon, except for normal non-exclusive royalty free license to use that arises by operation of law in the sale of a product.

  • Page 24: Product Warranty

    (2) years period following the date of purchase, it will be replaced or repaired at MAXON Dealer option at no charge when returned to the place of purchase. The defective unit must be accompanied by proof of the date of purchase in the form of a sales receipt.
  • Page 25 LIABLE TO THE BUYER OR ITS CUSTOMERS FOR ANY DAMAGES, INCLUDING ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR FOR THE LOSS OF PROFIT, REVENUE OR DATA ARISING OUT OF THE USE OF OR THE INABILITY TO USE THE PRODUCT. This warranty is void for sales and deliveries outside of the U.
