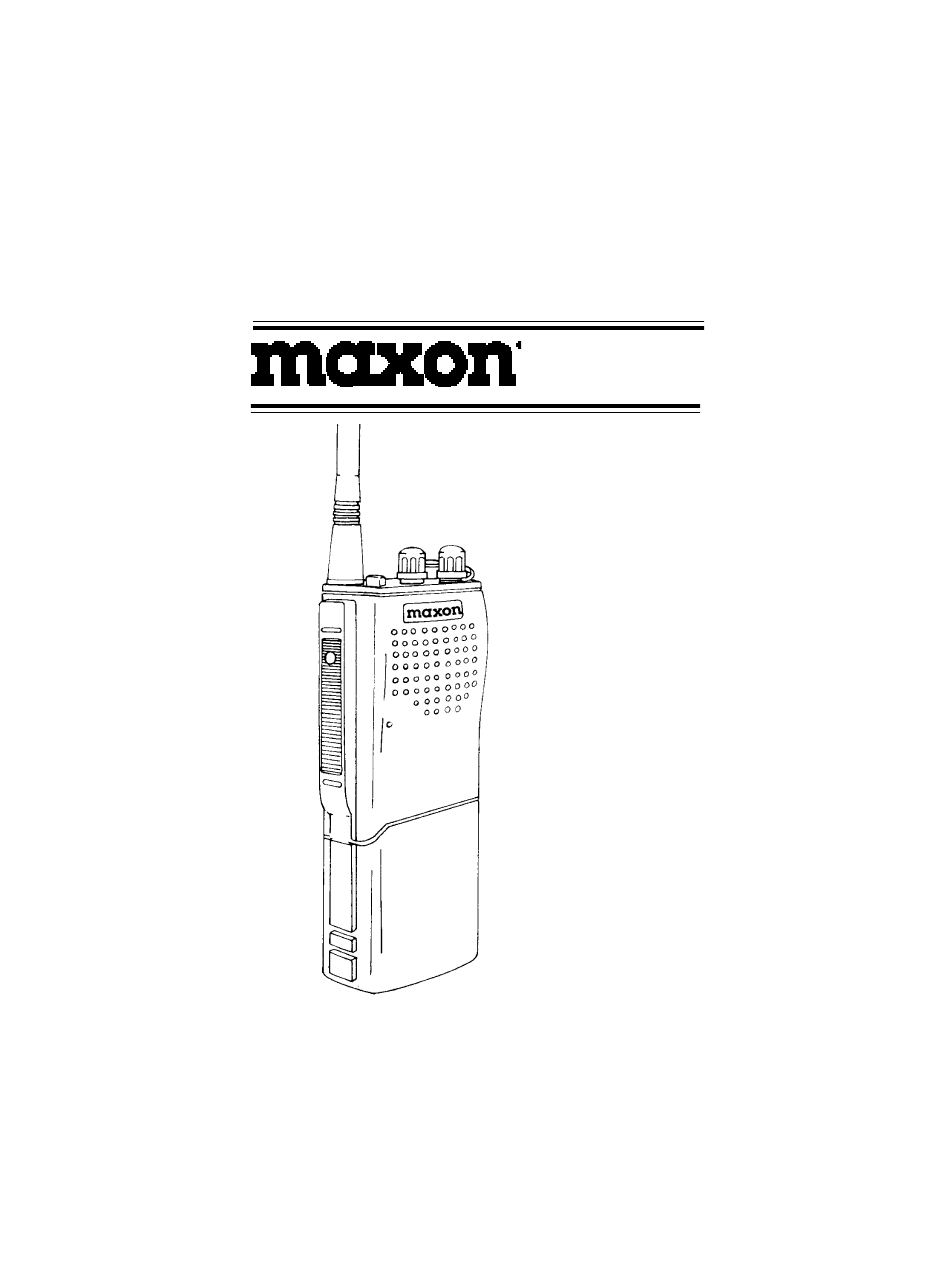

  • Page 1 SL-70W Series Synthesized Scanning Radio Operating Instructions...
  • Page 2 About Your SL-70W Series Radio Maxon's SL-70W Series radios feature 16 channel operation with superior performance and reliability. Operation and functions for Maxon's SL-70W Series radios are described in this manual. We urge you to thoroughly read this manual before operating the radio.
  • Page 3: Table Of Contents

    Table of Contents Safety Information..............Unpacking Information............SL-70W Series Features............Description of Radio Components......... Antenna Installation............... Battery Pack Removal / Belt Clip Installation......Battery Charging and Care............. SL-70W Series Operation............Power On-Volume..........Transmit..............Receive..............Power Off.............. Status Indicators and Audible Alert Tones......
  • Page 4: Safety Information

    General Docket 79-144, March 13, 1985, has adopted a safety standard for human exposure to Radio Frequency (RF) electromag- netic energy emitted by FCC regulated equipment. Maxon sub- scribes to the same safety standard for the use of its products. Proper...
  • Page 5: Unpacking Information

    Unpacking Information Remove and carefully inspect the contents of your package(s) for the following items: Radio Battery Pack Antenna Belt Clip Operating Instructions If any items are missing, please contact your Dealer or Maxon.
  • Page 6: Sl-70W Series Features

    SL-70W Series Features • Wideband operation • Channel scan • Priority channel scan • Look back channel • CTCSS/DCS tone signalling • Busy channel lockout • Time-out timer • Programmable 12.5 to 25 kHz channel spacing (per channel) • HI / LO power switch provides full 5 Watts or battery saving...
  • Page 7: Description Of Radio Components

    Description of Radio Components 1) Antenna Receptacle 2) Accessory Jack: Used with optional speaker microphone or mini-VOX unit. May also be used for an external 8 Ohm speaker or an earphone. 3) On / Off - Volume Control 4) Channel Selector Knob 5) BUSY / TX / BT Indicator: Tri-color Light Emitting Diode (LED) identifies radio status.
  • Page 9: Antenna Installation

    Antenna Installation Fasten the antenna to the radio by turning the antenna clockwise into the receptacle on top of the radio. Battery Pack Removal / Belt Clip Installation The battery must be removed from the radio body to install the belt clip.
  • Page 10: Battery Charging And Care

    Battery Charging and Care To ensure peak performance from your radio, the battery pack must be fully charged. Proper care and charging will allow maximum performance and life of your battery pack. The SA-1120 Pedestal Charger, available optionally for your SL-70W Series Radio, offers convenient charging capabilities.
  • Page 11: 70W Series Operation

    SL-70W Series Operations Power On-Volume Turn the radio on by rotating the on/off - volume control clockwise until you hear a click and the self test "alert" tone. Transmit CAUTION OPERATION OF THE TRANSMITTER WITHOUT A PROPER ANTENNA INSTALLED MAY RESULT IN PERMANENT DAMAGE TO THE RADIO 1) Press the monitor button to monitor the channel for activity.
  • Page 12: Power Off

    Status Indicators and Audible Alert Tones Your SL-70W Series has a sophisticated microprocessor control which provides a series of audible alert tones. Upon initial power up, a quick melody indicates that the self-test of the microprocessor functions has been completed satisfactorily.
  • Page 13: Scan Modes

    Scan Modes Scanning is a Dealer programmable feature that allows you to monitor a number of channels. Your Dealer will help you define a channel "scan list" to be programmed into a scan channel (any channel, 1-16). Once that channel location is selected, scan is initiated.
  • Page 14: Other Scanning Features

    Other Scanning Features • Look Back: Any channel, when not in the scan mode, can be programmed to "look back" at the "Priority" channel. This feature is ideal for those who do not need scan as defined above, but want to make sure that they never miss a call on the "Priority" channel if another channel has been selected.
  • Page 15: Licensing And Service Information

    Do not tamper with internal adjustments. Damage to the equipment and/or improper operation may result. There are no user serviceable items inside the radio. It is recommended that you return your radio to a qualified Maxon Dealer for any service or repairs. Recycling/Disposal of Batteries The U.S.
  • Page 16: Software Copyrights

    Maxon. Furthermore, the purchase of Maxon products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Maxon, except for normal non-exclusive royalty free license to use that arises by operation of law in the sale of a product.
  • Page 17: Maintenance

    Maintenance Your SL-70W Series Radio is designed to be maintenance free. To keep your radio in good working condition: Clean external surfaces with a clean cloth dampened in a solution of dishwasher detergent diluted in water. Apply the solution sparingly to avoid any moisture leaking into cracks and crevices.
  • Page 18: Limited Warranty

    Maxon shall have no obligation to make repairs or to cause replacement required which result from normal wear and tear or necessitated in whole or in part by catastrophe, fault or negligence...
  • Page 19 Maxon America, Inc. Business Radio Division 10828 NW Air World Drive Kansas City, Missouri 64153 816/891-6320, FAX: 816/891-8815 P/N: 680-090-0004...
