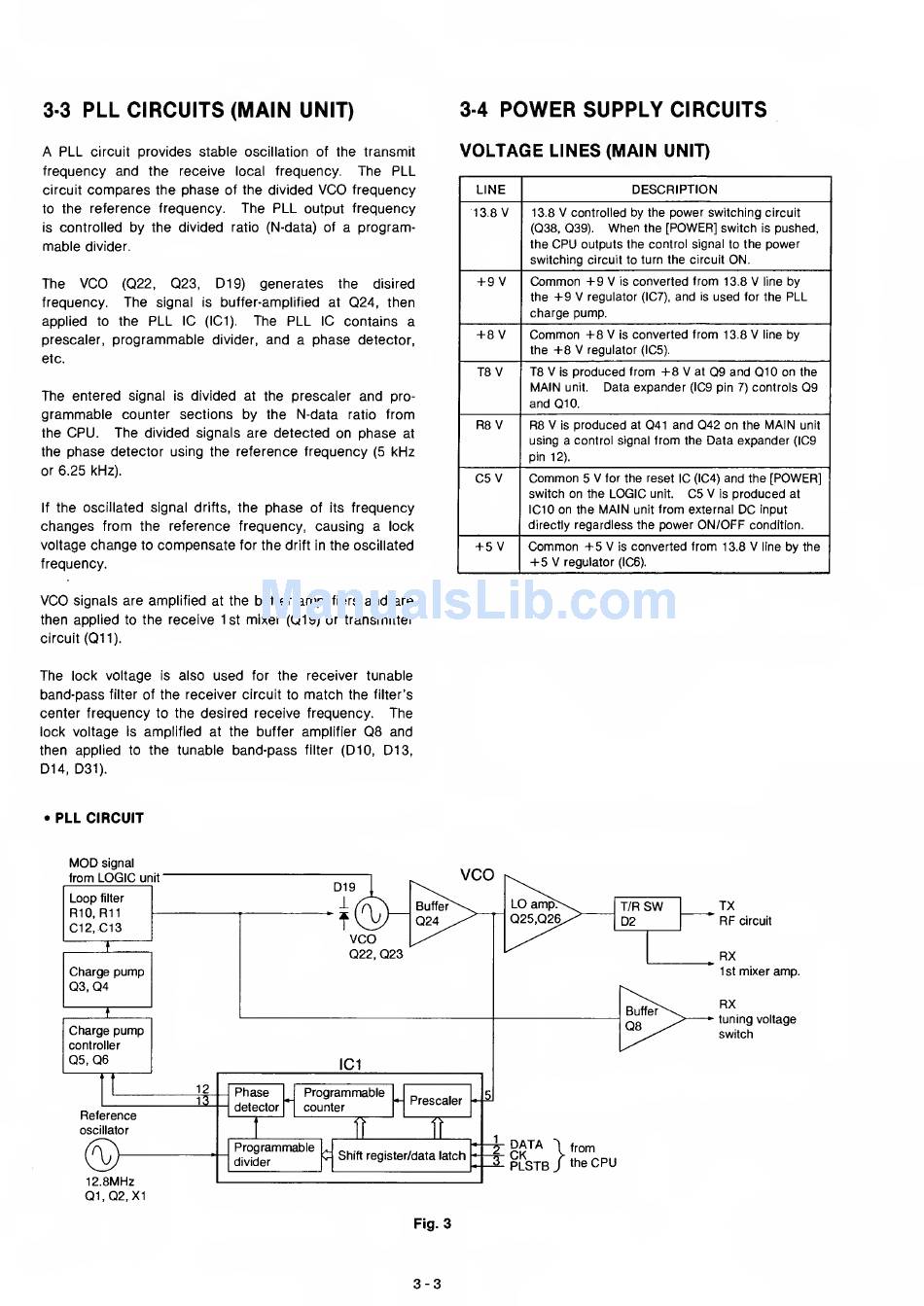

PLL CIRCUITS (MAIN
UNIT)
A
PLL
circuit
provides stable
oscillation of
the transmit
frequency and
the receive
local
frequency.
The PLL
circuit
compares
the
phase
of
the divided
VCO
frequency
to
the reference frequency.
The PLL
output frequency
is
controlled
by
the divided
ratio
(N-data) of
a program-
mable
divider.
The
VCO
(Q22,
Q23,
D19) generates
the disired
frequency.
The
signal
is
buffer-amplified
at
Q24, then
applied
to
the
PLL
1C (IC1).
The PLL
1C
contains a
prescaler,
programmable
divider,
and
a
phase
detector,
etc.
The entered
signal
Is
divided
at
the prescaler
and
pro-
grammable counter sections by
the N-data
ratio
from
the
CPU. The
divided signals are detected
on phase
at
the
phase
detector using the reference
frequency
(5
kHz
or
6.25
kHz).
If
the oscillated signal
drifts,
the
phase
of
its
frequency
changes from the reference frequency, causing a
lock
voltage
change
to
compensate
for
the
drift In
the
oscillated
frequency.
VCO
signals
are amplified
at
the buffer amplifiers
and
are
then applied
to
the receive
1st
mixer (019) or transmitter
circuit
(Oil).
3-4
POWER
SUPPLY
CIRCUITS
VOLTAGE
LINES (MAIN
UNIT)
LINE
DESCRIPTION
13.8
V
13.8
V
controlled by the
power
switching
circuit
(Q38, Q39).
When
the
[POWER]
switch
is
pushed,
the
CPU
outputs the control signal to the
power
switching
circuit to turn
the
circuit
ON.
-1-9
V
Common
-1-9
V
is
converted from
13.8
V
line
by
the -1-9
V
regulator
(IC7),
and
is
used
for
the
PLL
charge pump.
-i-e
V
Common
-t-8
V
is
converted from 13.8
V
line
by
the -1-8
V
regulator
(ICS).
T8
V T8 V
is
produced from
-1-8
V
at
09 and 01
0 on the
MAIN
unit.
Data expander
(IC9 pin
7)
controls
09
and 01
0.
R8 V R8 V
is
produced
at
041 and
042
on
the
MAIN
unit
using a control signal
from
the
Data expander
(IC9
pin
12).
C5 V
Common
5
V
for the reset 1C (IC4)
and
the
[POWER]
switch on
the
LOGIC
unit.
C5 V
is
produced
at
IC10 on
the
MAIN
unit
from
external
DC
input
directly
regardless the
power
ON/OFF
condition.
-1-5
V
Common
-1-5
V
is
converted from
13.8
V
line
by the
-1-5
V
regulator
(IC6).
The
lock voltage
is
also
used
for
the receiver tunable
band-pass
filter
of the receiver circuit
to
match
the
filter's
center frequency
to
the desired receive frequency.
The
lock voltage
is
amplified
at
the buffer amplifier
08
and
then applied
to
the tunable band-pass
filter
(DIO, D13,
D14, D31).
•
PLL CIRCUIT
TX
RF
circuit
RX
1
St
mixer
amp.
RX
tuning voltage
switch
Fig.
3
