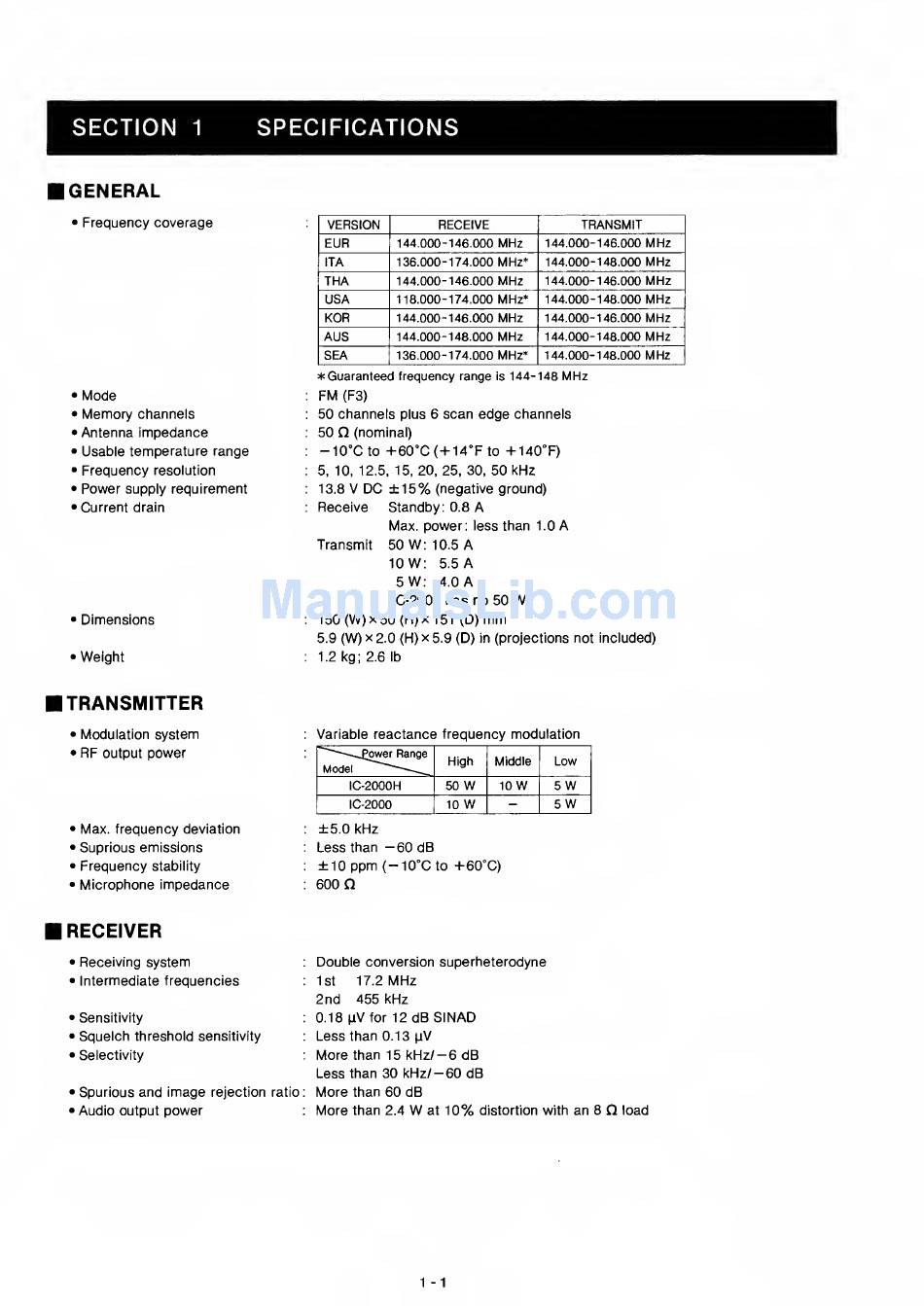

SECTION
1
SPECIFICATIONS
GENERAL
•
Frequency coverage
•
Mode
•
Memory
channels
•
Antenna impedance
•
Usable temperature range
•
Frequency
resolution
•
Power
supply requirement
• Current
drain
•
Dimensions
•
Weight
VERSION RECEIVE TRANSMIT
EUR
144.000-146.000
MHz
144.000-146.000
MHz
ITA
136.000-174.000
MHz*
144.000-148.000
MHz
THA
144.000-146.000
MHz
144.000-146.000
MHz
USA
118.000-174.000
MHz*
144.000-148.000
MHz
KOR
144.000-146.000
MHz
144.000-146.000
MHz
AUS
144.000-148.000
MHz
144.000-148.000
MHz
SEA 136.000-174.000 MHz* 144.000-148.000
MHz
Guaranteed frequency range
is
144-148
MHz
:
FM
(F3)
:
50 channeis
pius
6 scan
edge
channels
:
50
n
(nominal)
:
-10"Cto -F60°C(-M4°FtO -M40"F)
:
5,
10, 12.5, 15, 20, 25, 30,
50
kHz
:
13.8
V
DC ±15%
(negative ground)
:
Receive Standby:
0.8
A
Max. power:
less
than
1.0
A
Transmit
50
W:
10.5
A
10
W:
5.5
A
5W:
4.0
A
(IC-2000
has no 50
W)
:
150(W)x50(H)x
151
(D)mm
5.9
(W)x2.0 (H)x
5.9 (D) in
(projections not included)
:
1.2
kg; 2.6
lb
TRANSMITTER
•
Modulation system
•
RF
output
power
• Max. frequency
deviation
• Suprious emissions
•
Frequency
stability
•
Microphone impedance
:
Variable
reactance frequency modulation
—
_£ower Range
Model
High Middle
Low
IC-2000H
SOW
10
W
5
W
IC-2000 10
W
-
5
W
±5.0 kHz
Less than
-60
dB
±10 ppm
(-10°C
to
+60°C)
600
n
RECEIVER
• Receiving
system
•
Intermediate frequencies
• Sensitivity
• Squelch threshold
sensitivity
• Selectivity
• Spurious
and image
rejection
ratio
:
•
Audio
output
power
Double conversion superheterodyne
1st 17.2
MHz
2nd 455 kHz
0.18 mV
for
12
dB SINAD
Less than
0.13
pV
More than 15
kHz/—
6
dB
Less than 30
kHz/—
60
dB
More
than 60
dB
More
than
2.4
W
at
10%
distortion with
an 8
Q
load
1
