Labeling channels and buses

You can add a label to the channels and buses shown on the display for easy identification. The label is placed on the waveform
baseline indicator in the left side of the screen. The label can have up to 32 characters.

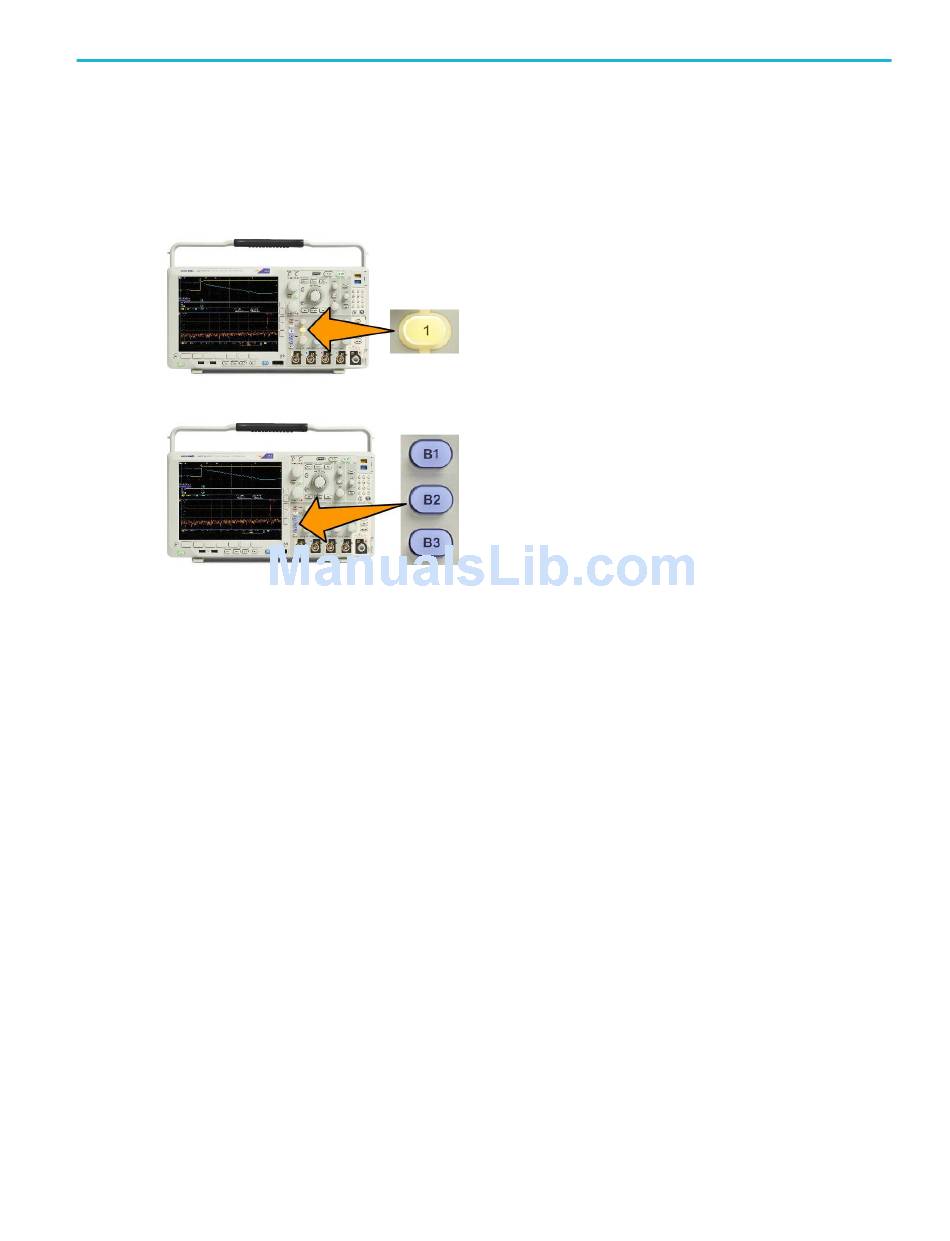

To label a channel, push a channel input button for an analog channel.
1. Push a front panel button for an input channel or a bus.
2. Push a lower menu button to create a label, such as for channel 1 or B1.
3. Push Choose Preset Label to view a list of labels.
4. Turn Multipurpose b to scroll through the list to find a suitable label. You can edit the label after you insert it if necessary.
5. Push Insert Preset Label to add the label.
If you are using a USB keyboard, use the arrow keys to position the insertion point and edit the inserted label, or type in a
new label. (Connecting a USB Keyboard to Your
6. If you do not have a USB keyboard connected, push the side and lower menu arrow keys to position the insertion point.
7. Turn Multipurpose a to scroll through the list of letters, numbers, and other characters to find the character in the name that
you want to enter.
8. Push Select or Enter Character to let the oscilloscope know that you have picked the proper character to use.
You can use the lower menu buttons to edit the label as needed.
9. Continue scrolling and pushing Select until you have entered all the desired characters. For another label, push the side
and lower menu arrow keys to reposition the insertion point.
10. Push Display Labels and select On to see the label.
MDO4000C Series Oscilloscope User Manual
Oscilloscope.)
Acquire the signal
69
