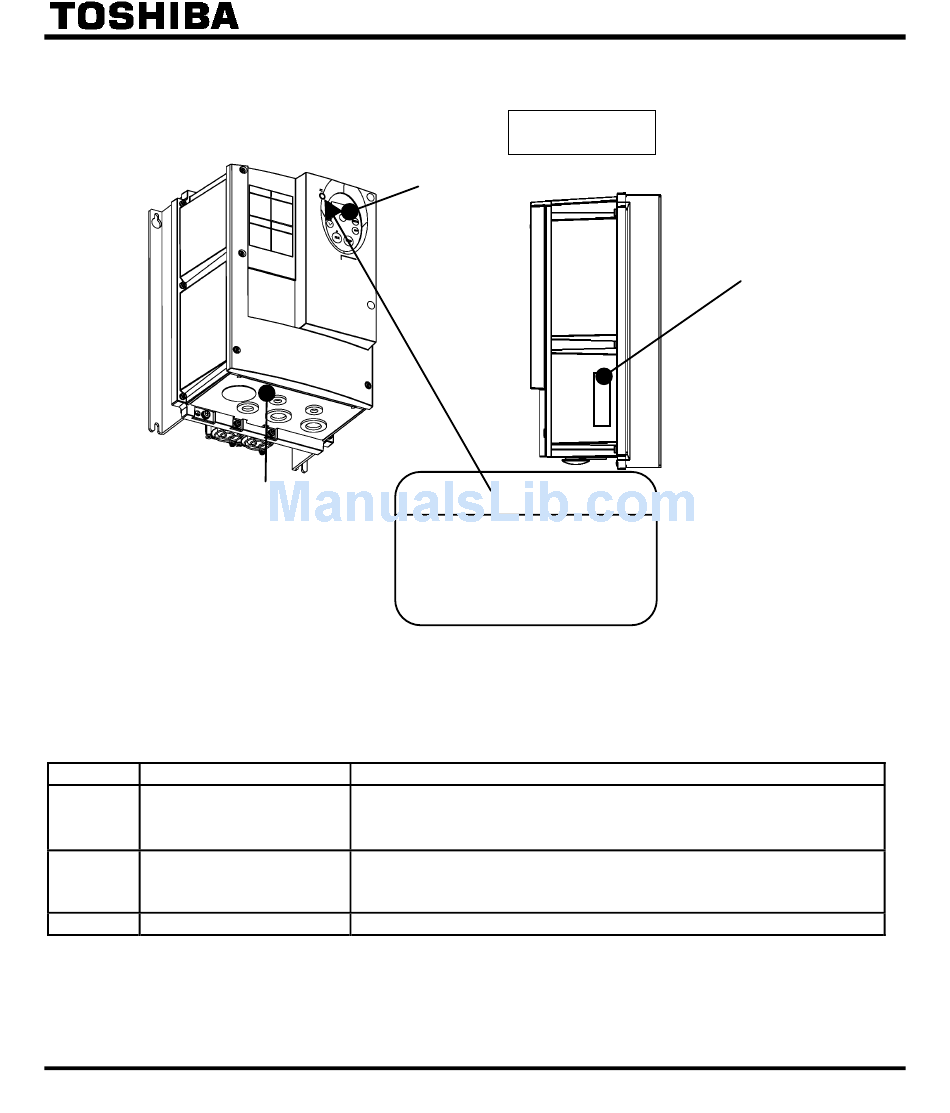

■Exterior Features

No. Devices
(1) Operation panel
(2) Wiring port plate
(3) Name plate
(2)
Indicates that high voltage is
still present within the inverter.
Do not open the cover while
this is lit.
Equipped with ▲,▼, MODE and ENT keys used to set parameters,
RUN and STOP used to drive the motor, LOC/REM used to change local
and remote, a 7-segment LED and a CHARGE lamp.
Steel plate with wiring ports. The effects of noise can be reduced to some
degree by fixing shielded parts of cables with cable grounds or similar
devices. See page 26.
Label on which the ratings of the inverter unit is printed.
Side view
(1)
CHARGE lamp
Remarks
2
Ｅ６５８１４７１
