Toshiba TOSVERT VF-FS1 Instruction Manual page 11

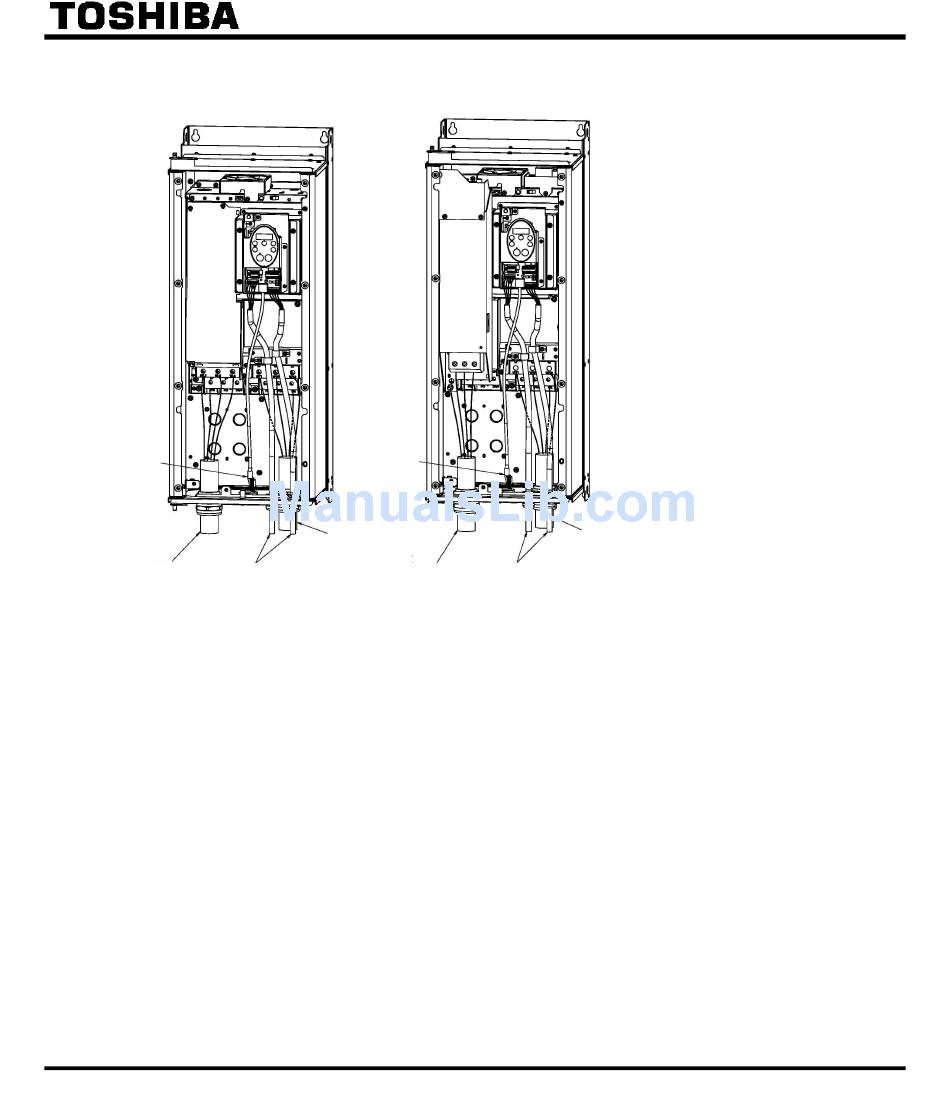

22kW – 75kW
(4)
(1)
(PLE -type)
PLE-type：EN61800-3, 1st Environment, C3
PDE-type：EN61800-3, 1st Environment, C1
Caution
• Circuit boards are exposed when the front cover is removed. Since high voltages are applied to some parts of the
circuit board, read Section 2.1, "Cautions on wiring," of the instruction manual E6581381 carefully before wiring.
When connecting cables, take care not to damage the circuit board with a screwdriver or a similar tool.
• Never turn on the power ON-OFF switch before attaching the front cover.
Or you could get a shock.
• Incase of PDE-type, the input current flow the capacitor in the filter circuit. Therefore, the input current during the
stopping the motor more than PLE-type.
• If you want to disconnect the capacitor from the grounding line to reduce the amount of leakage current, you can do
so easily using the switch or tap. Keep in mind, however, that disconnecting the capacitor from the grounding line
causes the inverter to become non-compliant with the EMC directive. Also note that the inverter must always be
turned off before the capacitor is disconnected or reconnected.
• The hole for optional communications device interconnect cable does not open (factory setting, 11.0kW-75.0kW).
Therefore, please open the hole yourself.
(4)
(2)
(3) (1)
（PDE-type）
(2)
(3)
11
Ｅ６５８１４７１
(1) Input power cable
(2) Output cable
(3) Control cable
(4) Optinal communications device
interconnect cable（option）
