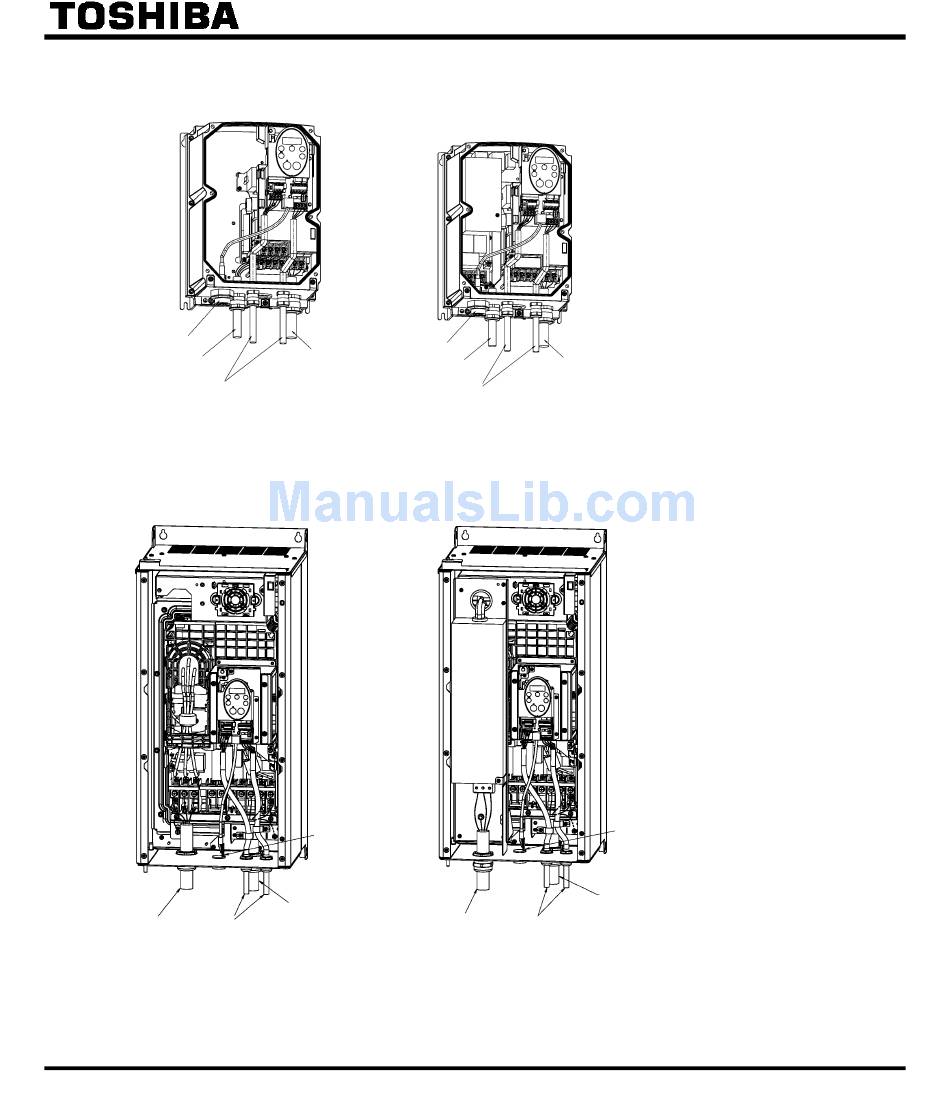

■Wiring diagram
0.75kW – 7.5kW
(4)
(1)
(3)
(PLE -type)
PLE-type：EN61800-3, 1st Environment, C2(up to 5.5kW) or C3
PDE-type：EN61800-3, 1st Environment, C1
11kW – 18.5kW
(1)
(3)
(PLE -type)
PLE-type：EN61800-3, 1st Environment, C3
PDE-type：EN61800-3, 1st Environment, C1
(4)
(2)
(1)
(3)
(4)
(2)
(1)
（PDE-type）
10
(1) Input power cable
(2) Output cable
(3) Control cable
(4) Optinal communications device
interconnect cable（option）
(2)
（PDE-type）
(1) Input power cable
(2) Output cable
(3) Control cable
(4) Optinal communications device
interconnect cable（option）
(4)
(2)
(3)
