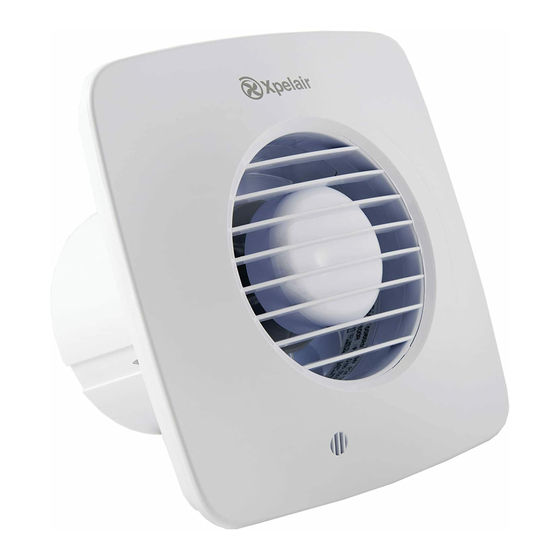

Xpelair Simply Silent
Installation and Maintenance Instructions
DX100R (93005AW) / DX100S (93025AW)
DX100TR (93006AW) / DX100TS (93026AW)
DX100PR (93007AW) / DX100PS (93027AW)
DX100HTR (93008AW) / DX100HTS (93028AW)
DX100HPTR (93009AW) / DX100HPTS (93029AW)
DX100PIRR (93010AW) / DX100PIRS (93030AW)

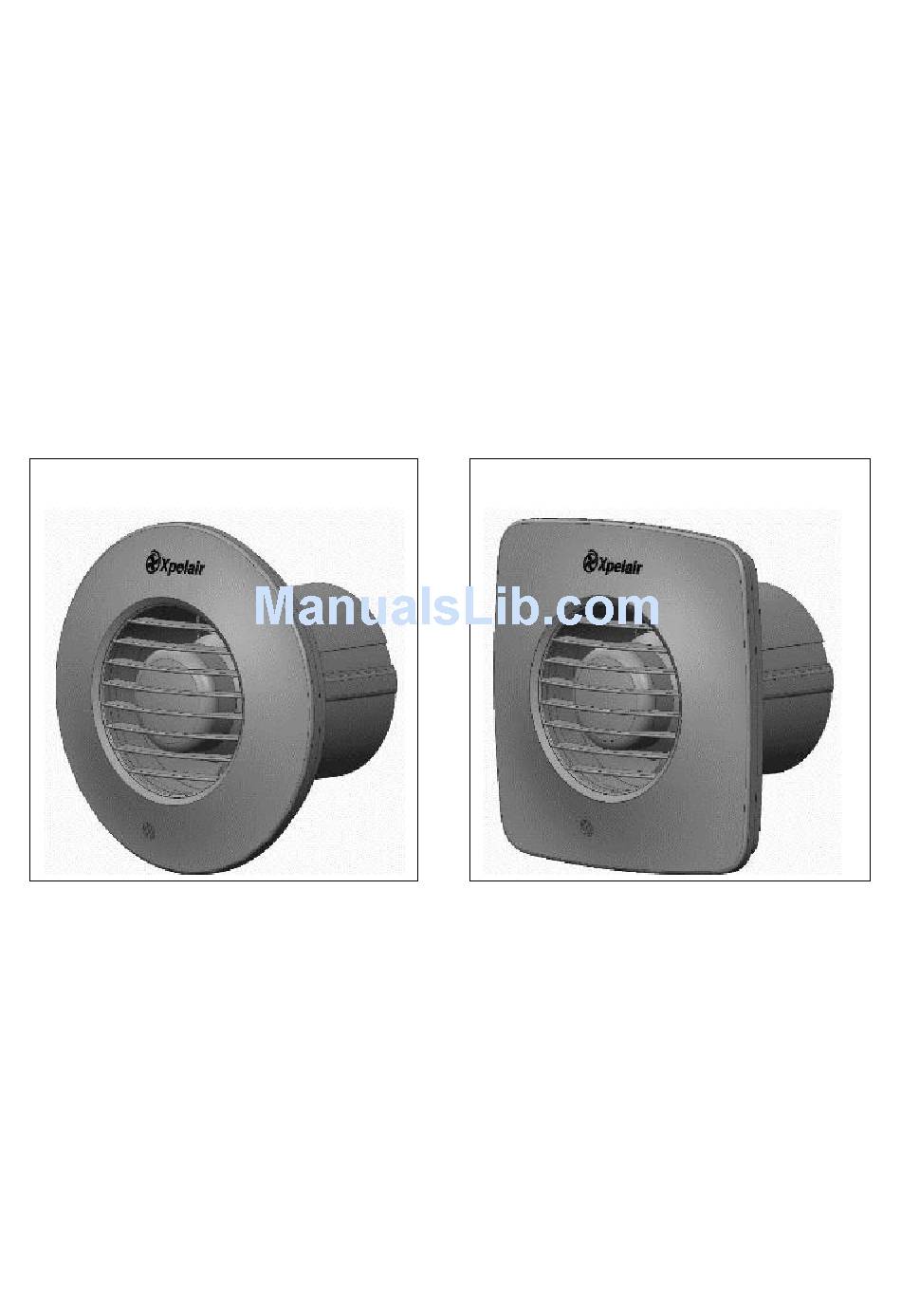

DX100 Range Round Fan
D
o read the entire instruction leaflet before commencing installation.
Do install each fan with a means for disconnection in all poles in the fixed wiring.
Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any
maintenance or cleaning.
Please leave this leaflet with the fan for the benefit of the user.
UK customers:
If you have any queries before or after installing this product call the Xpelair Technical Hotline +44 (0) 844 372 7766. Our
engineers are there to help you during normal office hours. Or you can fax at all other times on +44 (0) 844 372 7767.
Customers outside the UK should contact your local Xpelair distributor.
TM
DX100 Fan
Standard
Timer
Pull Cord
Humidistat, Timer
Humidistat, Pull Cord, Timer
Integral Body Movement Sensor
DX100 Range Square Fan
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Xpelair DX100R
Summary of Contents for Xpelair DX100R
- Page 1 UK customers: If you have any queries before or after installing this product call the Xpelair Technical Hotline +44 (0) 844 372 7766. Our engineers are there to help you during normal office hours. Or you can fax at all other times on +44 (0) 844 372 7767.
-
Page 2: Overall Dimensions (Mm)
Children shall not play with the appliance. Cleaning and maintenance of the appliance shall not be made by children. All Xpelair Simply Silent DX100 AC fans have the following features: Two speed extraction (Selectable at installation) DX100R/DX100S - Operate the fan using an on/off switch (not supplied). -
Page 3: Front Cover Removal
Back plate fixing positions Front Cover Removal Depress Cover Latch with tool & remove Cover... - Page 4 Factory settings: Timer 15 minutes, RH 75% Maximum 30 minutes Minimum 30 seconds...
-
Page 5: Wiring And Setting Up
Wiring and setting up... - Page 6 Wiring and setting up...
-
Page 8: Installation
The cross-sectional area of the supply cord used should be ranged from 1-1.5mm². DX100R / DX100S / DX100PR / DX100PS / DX100PIRR / DX100PIRS – 2 core, DX100TR / DX100TS / DX100HTR* / DX100HTR* / DX100HPTR* / DX100HPTS* – 3 core. - Page 9 For Australia Only – DX100R / DX100S / DX100PR / DX100PS / DX100PIRR / DX100PIRS Connection to the supply can be made by a flexible 2-core cable complete with 3 pin plug for insertion into an approved 10A GPO or directly wired through an approved 10A wall mounted surface switch with at least 3mm clearance between contacts.
- Page 10 The over-run timer is factory set at 15 minutes but can be adjusted from 30 seconds to 30 minutes by control T. Turn the controls clockwise to increase RH or time and anti-clockwise to decrease. Using the fan. DX100R / DX100S Only Operate the fan using the on/off switch (not supplied). Repeat to switch off. DX100TR / DX100TS Only ...
- Page 11 DX100PR / DX100PS Only Operate the fan by pulling and releasing the cord. Repeat to switch off. DX100HTR / DX100HTS Only. Automatic mode - The fan automatically adjusts to slow changes in natural humidity levels without operating the fan. If the humidity levels increase at a rate slower than 5% RH in 5 minutes, up to the pre-set humidity level, the fan will not be triggered by humidity.
- Page 12 UK only: We, Redring Xpelair Group Limited, provide a guarantee against faulty parts and manufacture for a period of 2 years from the date of purchase. In the unlikely event of a product breakdown during the guarantee period the product should be returned to the place of purchase or to Redring Xpelair Group Limited.
