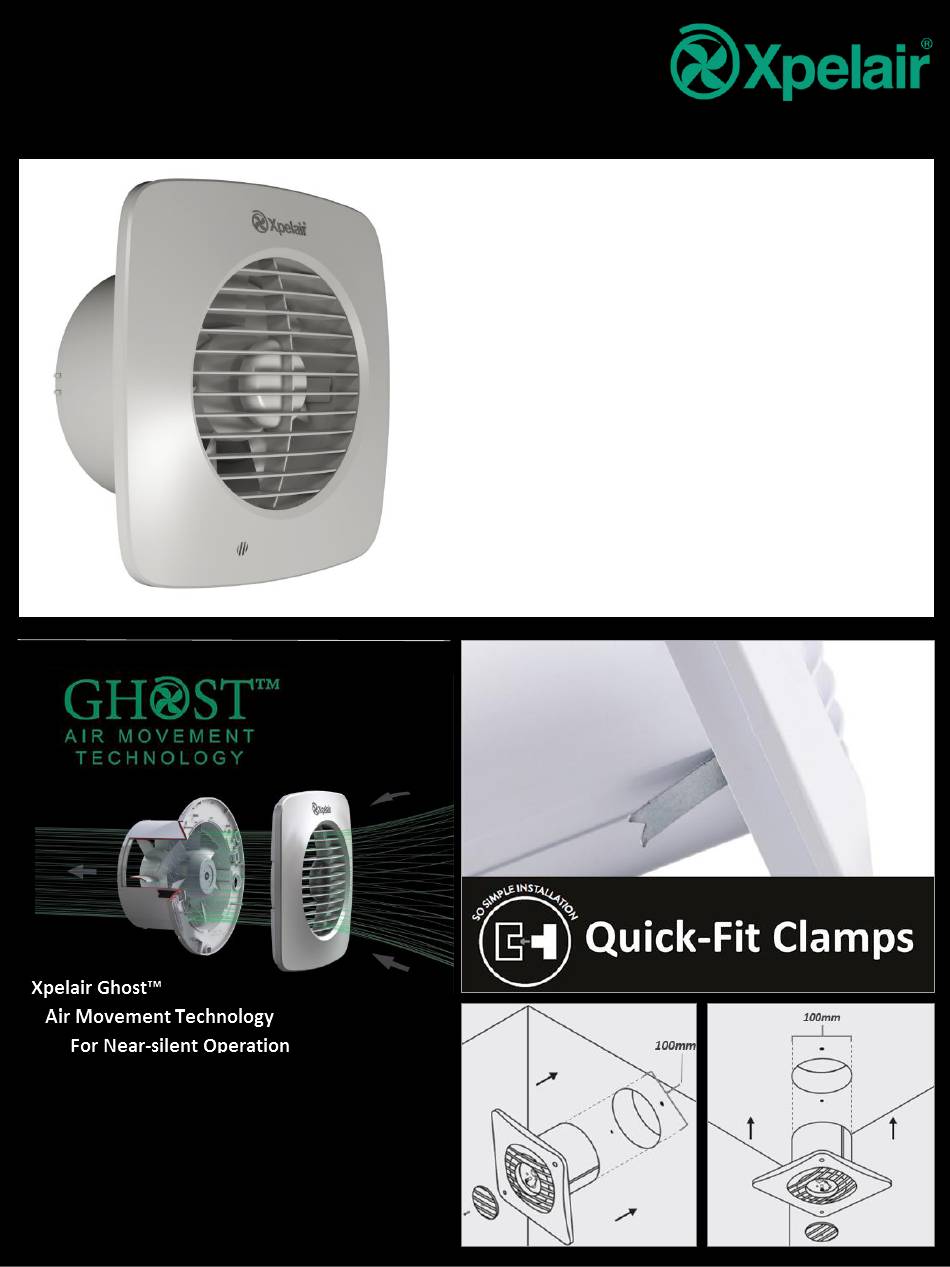

Simply Silent™ DX150
6"(150mm) Axial Extraction Fan
Optimised impeller blade design minimises noise
Flow straighteners guide air through duct
Long-life ball bearing motors suppress noise
Provides near-silent operation
Just 15dBA in low speed or 29dBA high speed
• Suitable for bathrooms, toilets, shower and utility rooms
• Controls humidity, odours and mould growth
• Sleek low-profile design, for wall or ceiling mounting
• Near-silent Ghost™ Air Movement Technology
• Precision 2-speed ball-bearing motors
• Extraction rate 60 /67 litres per second (low/high speed)
• So-Simple™ installation includes quick-fit clamps
• Front grille fascia can be removed for easier cleaning
• Optional wall kit available separately
• Building Regulation Part F compliant
• Standard, timer delay, pullcord or humidistat versions
Installation
Ceiling
Wall
Installation
Advertisement
Table of Contents
Related Manuals for Xpelair Simply Silent DX150
Summary of Contents for Xpelair Simply Silent DX150
- Page 1 Simply Silent™ DX150 6”(150mm) Axial Extraction Fan • Suitable for bathrooms, toilets, shower and utility rooms • Controls humidity, odours and mould growth • Sleek low-profile design, for wall or ceiling mounting • Near-silent Ghost™ Air Movement Technology • Precision 2-speed ball-bearing motors •...
- Page 2 30 minutes. • 6”(150mm) Wall kit • External grille see XPL93021AW Made in the UK • Ducting / wall tube Xpelair, Newcombe House, Newcombe Way, Peterborough, PE2 6SE. Tel. 01733 456789 A Glen Dimplex Group company...
-
Page 3: Installation And Maintenance Instructions
UK customers: If you have any queries before or after installing this product call the Xpelair Technical Hotline +44 (0) 844 372 7766. Our engineers are there to help you during normal office hours. Or you can fax at all other times on +44 (0) 844 372 7767. -
Page 4: Overall Dimensions (Mm)
Children shall not play with the appliance. Cleaning and maintenance of the appliance shall not be made by children. All Xpelair Simply Silent DX150 AC fans have the following features: Two speed extraction (Selectable at installation) ... -
Page 5: Front Cover Removal
Back plate fixing positions Wall tube quickfix clamps Front Cover Removal Factory settings: Timer 15 minutes, RH 75% Minimum 30 seconds Maximum 30 minutes... -
Page 6: Wiring And Setting Up
Wiring and setting up... - Page 7 A 150mm diameter prepared hole. Appropriate ancillaries for termination. These items are available from Xpelair: 3m flexible ducting Ref: 89665AA. If the duct passes through a cold space use insulated duct ref: 91461AA. Installing the isolating switch and cables.
- Page 8 For Australia Only – DX150S / DX150R / DX150PS / DX150PR Connection to the supply can be made by a flexible 2-core cable complete with 3 pin plug for insertion into an approved 10A GPO or directly wired through an approved 10A wall mounted surface switch with at least 3mm clearance between contacts. For Australia Only –...
- Page 9 Fan Settings. SPEED SETTING The fans are factory set to low speed, but have two speed settings for different applications. Select either high or low speed by connecting the jumper between the centre and high or low speed pin on the jumper (see Figure E) DX150TS / DX150TR Only.
- Page 10 UK only: We, Redring Xpelair Group Limited, provide a guarantee against faulty parts and manufacture for a period of 2 years from the date of purchase. In the unlikely event of a product breakdown during the guarantee period the product should be returned to the place of purchase or to Redring Xpelair Group Limited.
