Overview

The Cruizer™ guidance system offers advanced guidance with an easy-to-
use touch screen. In addition, the Cruizer simulates radar for speed-
compensated applications and supplies Differential GPS data to other
controllers or optional systems. The Cruizer may be used with:
• Raven SmarTrax™ or SmartSteer™ automatic steering control systems.
• Raven TM-1™ Tilt Module for tilt-corrected guidance.
• Raven SmartBoom™ for automatic section control.
• Raven SmartRow™ for automatic planter control.

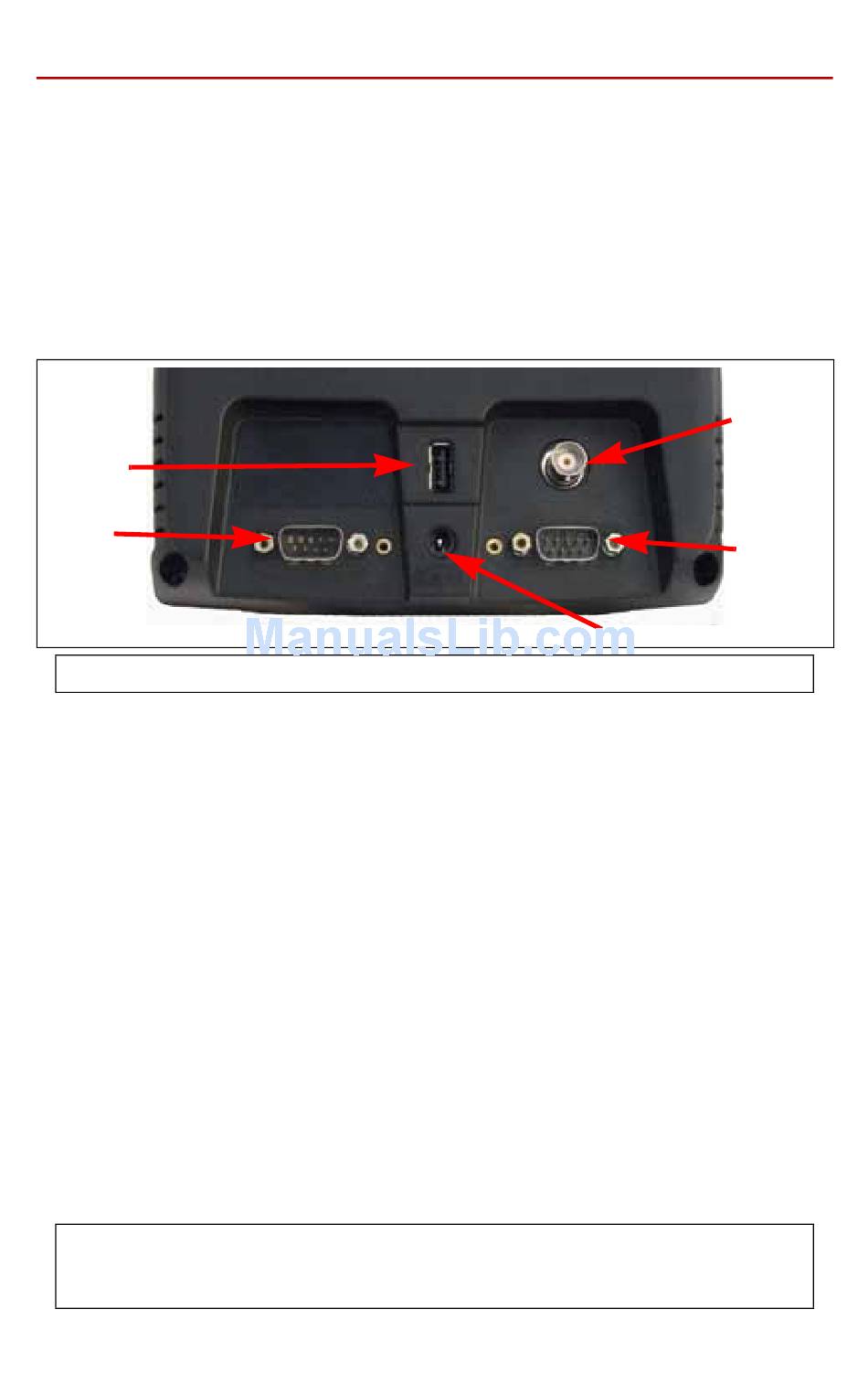

FIGURE 1. Back Panel of Cruizer Console
USB Port
Ports
B and D
Warning: Cruizer consoles are NOT weather resistant.
This manual is designed for use with Cruizer software version 2.2. Updates
for Raven manuals are available at the Applied Technology Division website:
www.ravenprecision.com/Support/index2.jsp
Sign up for e-mail alerts to receive notification when updates for Raven
products are available on the Raven website.

Care and Maintenance

• Harsh chemicals may damage the touch screen. Clean the touch screen
and console exterior as needed with a soft cloth dampened with glass
cleaner. Apply the cleaner to the cloth and then wipe the screen gently.
• To avoid scratching the touch screen, do not use any type of sharp
instrument. Only a fingertip or an approved stylus should be used.
• Do not expose the Cruizer console to precipitation, condensation, or other
liquids. Store the console in a dry environment when not in use.
• The suction cup is not meant as a permanent mounting solution. It is
recommended that the suction mount only be used when the console is in
operation. Clean the mounting surface with alcohol or a similar cleaner prior
to attaching the suction mount. Clean the mounting surface and suction cup
periodically.
Warning: Raven Industries is not liable for damage to the Cruizer
console, or any other in cab items, due to failure of the
suction mount.
Antenna
Port
Port
A and C
Power Port
2
