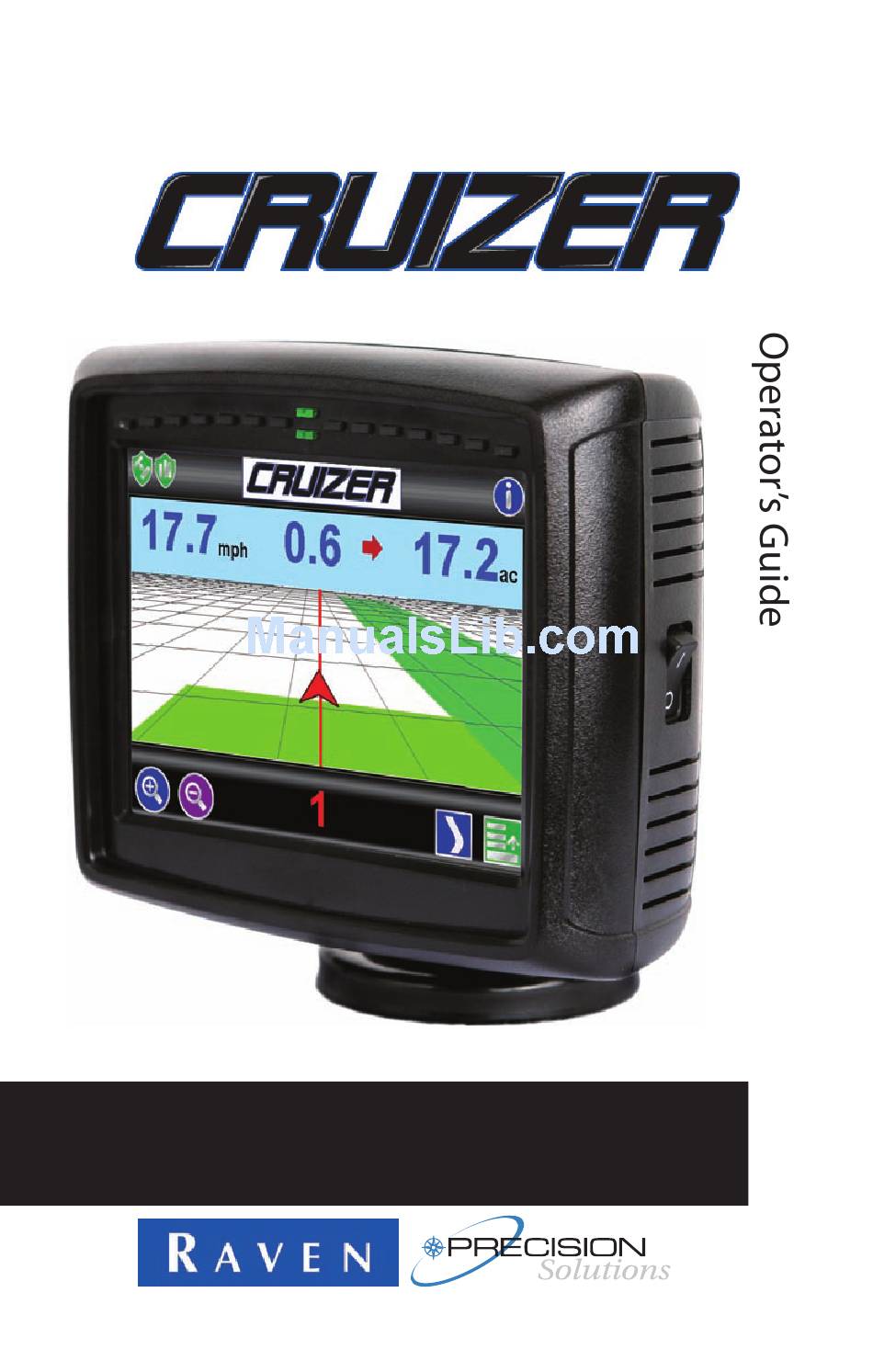

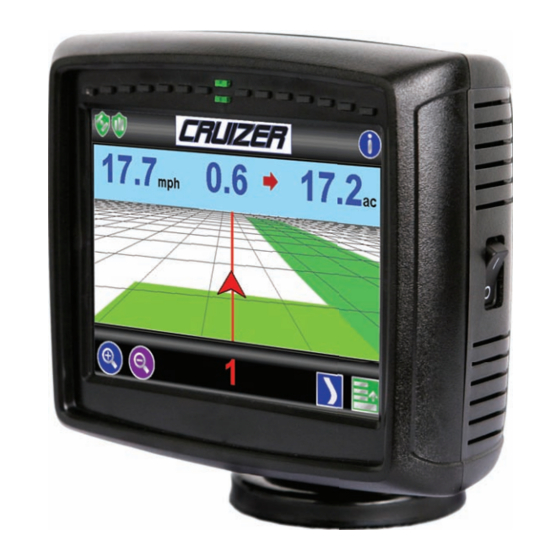

- Page 1 Cruizer...
-
Page 2: Installation
DGPS antenna has a clear 360° view of the sky. The simplest setup is achieved by mounting the antenna on the center-line of the vehicle. Route the antenna cable to the back of the Cruizer console and connect to the antenna port. -
Page 3: Initial Startup
Initial Startup The first time you power on your new console, Cruizer will need to be configured for your preferences, the desired units of measurement (inches or meters), and your specific machine. A Configuration Wizard will automatically start when the console is powered up and should only take a few minutes to complete. -
Page 4: Guidance Screen
Guidance Screen Once you have selected the desired Guidance Pattern, Cruizer will display the Guidance Screen which will look similar to the following: Touching icons or areas of the screen will access different information available through Cruizer’s interface. Touch the: GPS Status icon to display the GPS Status screen. - Page 5 Touch this icon to access the Menu. Touch this icon to new Guidance path. Field Boundary features of the access A-B Line options Cruizer console. and features. Touch this icon to The Nudge Left and Right icons will re-calibrate your A-B shift the A-B Line in 1 inch (2 cm) Line to the vehicle’s...
-
Page 6: Field Review Mode
When the Pan/Vehicle Lock is on, the vehicle position will always be displayed on screen. In Field Review Mode, if the lock symbol does not appear in this icon, Pan Lock is enabled and Cruizer will automatically pan the screen when the vehicle icon moves off of the current display area. -
Page 7: Configuration Menu
Configuration Menu Sub-Menus System submenu - GPS submenu - Computer Touch this icon to display Touch this icon to display submenu - Touch this the Light Bar, Tilt, and the Output, icon to access the Switch calibration screen E-Dif, GPS Health, and Display, Region, Updates, icons. -
Page 8: Troubleshooting
Cruizer software. Unzip or extract the download to your flash drive. Note: Cruizer will not be able to locate the update files if you put them in a folder on the flash drive. The files must be extracted to the flash drive’s root directory (X:\ where X is the letter of your flash drive.
