The following offset values may be modified on the Antenna Position
screen:
• Fore/Aft - The fore/aft offset is the distance of the boom or implement in
front or behind the GPS antenna.
Note: The fore/aft offset must be measured perpendicular to the boom
or implement width.
• Left/Right - The left/right offset is the distance from the GPS antenna to the
center line of the boom or implement.
Note: The left/right offset must be measured parallel to the boom or
implement width.
• Height - Touch this area and use the on-screen keypad to enter the height
(in inches or centimeters) of the DGPS antenna above ground. This value is
only required if terrain compensation or a tilt correction device is used with
the Cruizer console.
3. Touch Home
screen.

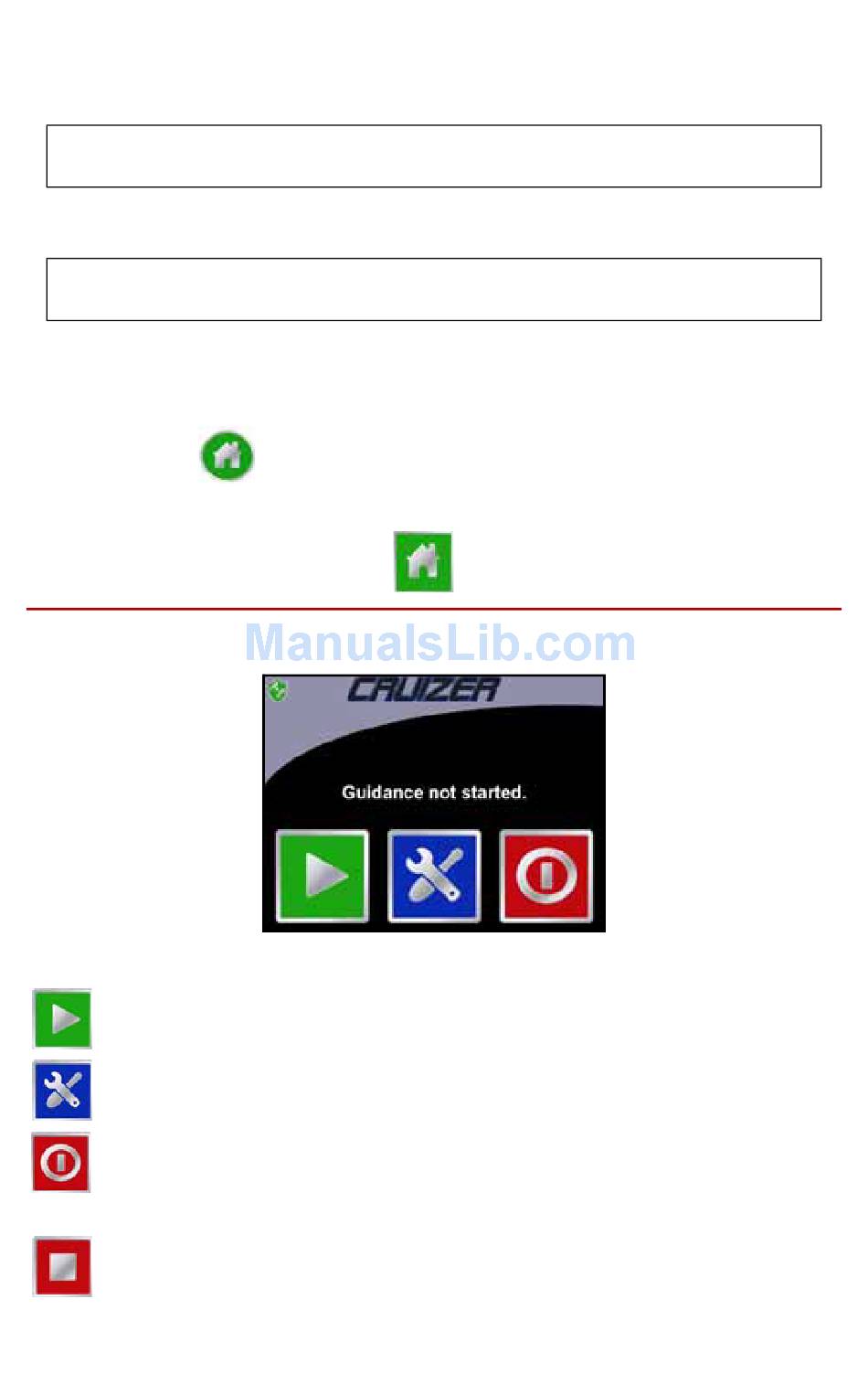

Home Screen

The version of firmware currently loaded on the Cruizer console is displayed
in the upper, right corner of the
Touch the following icons displayed on the
Start Job - Begins a new job or return to the guidance screen for a
job already in progress.
Tools Menu - Accesses the
available from the
Shutdown - Powers down the Cruizer console. The Shutdown icon
is displayed each time the console is powered up or when Guidance
is not active. Shutdown the console before toggling the power switch
off.
End Job - Ends the open job. If Guidance is running, the End Job
icon appears on the
5
to complete the Initial Setup Wizard and view the Home
Home
Tools
Home Screen.
Home Screen.
Screen.
x.x.x
Home Screen
Menu. The
to:
Tools Menu is only
