GPS

GPS Output - The GPS Output screen displays the available output
messages and the current output rates for each message. Baud rate
settings for Port A and B are also accessed via this screen. See the
Baud Rate Settings
Set all output messages to zero if connecting an optional SmarTrax,
SmartSteer or TM-1 system to the Cruizer using the recommended
cables shown in the
Health - Displays DGPS signal and status information. Touch a point
shown in the satellite constellation display to view signal information
for each satellite currently used by the Cruizer.
Differential - Select the differential satellite PRN for GPS guidance.
If an e-Dif or L-Dif authorization code has been entered, the operator
may select the desired correction source for use with the Cruizer
guidance system.

Favorites Menu

The Favorites Menu
easy access during operations. Once set up, Cruizer will display the
Favorites Menu

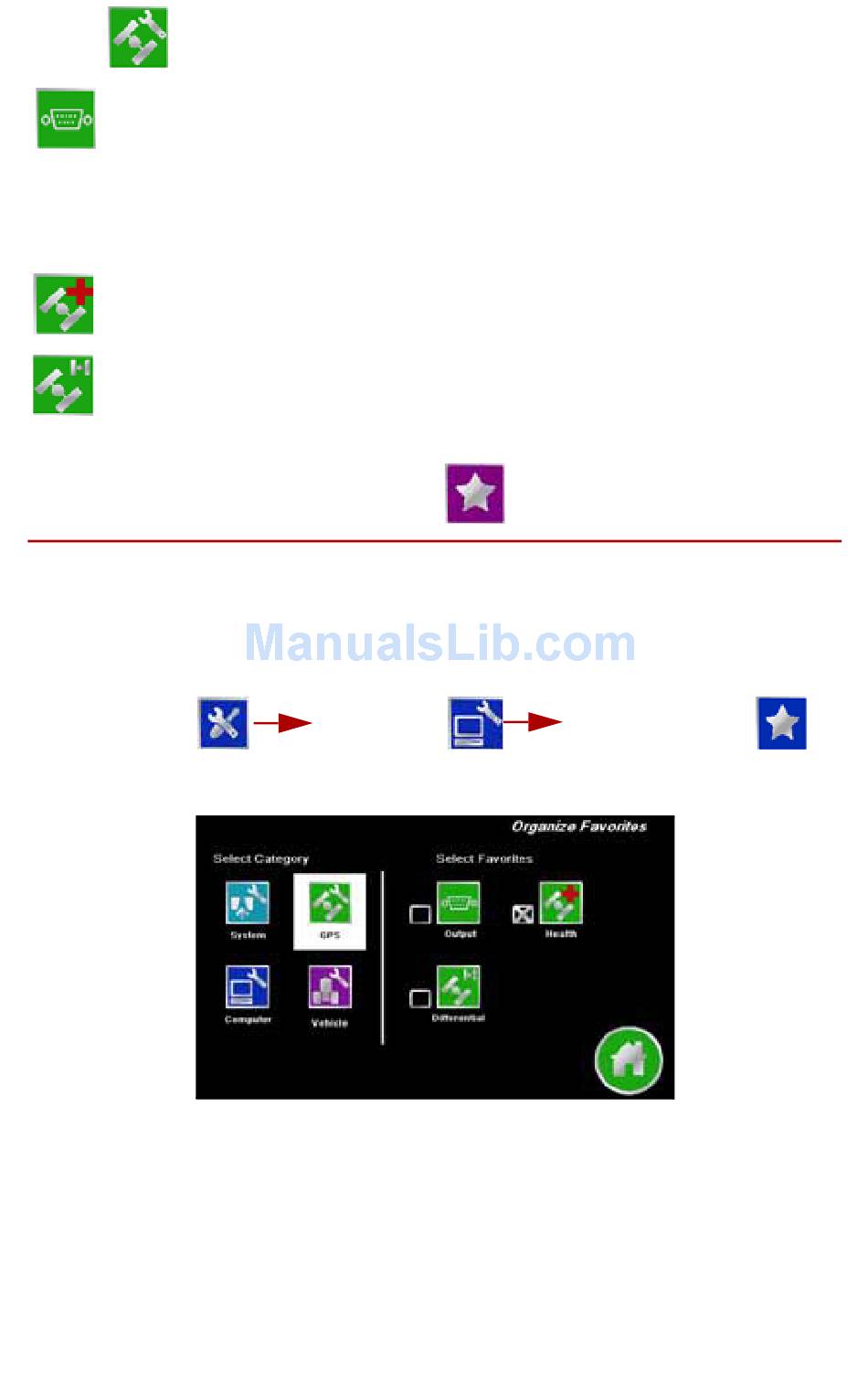

To setup the Favorites
1. From the Home
Tools Menu
2. On the Organize Favorites screen, select a category to view available tools
screens.
3. In the Favorites area, select the tools screen to display within the
Favorites Menu.
section on page 19 for details.
System Cable Drawings
allows the operator to select frequently used tools for
when the Tools Menu
Menu:
Screen, select:
Computer
section on page 22..
icon is selected.
Favorites Menu .
