Panel variants - left

InLine comfort panels are available in six different panel
variants, which differ according to use and panel connec-
tions.
Stand-alone panels (S & ST)
Connection panel (C)
Extension panel (E)
Return panels (R & RT)
Link panel (L)
Finishing panel (F)
8
Each panel variant can be supplied in a left or right hand
version. See p. 6 for information on defining left and right
side of the panel.

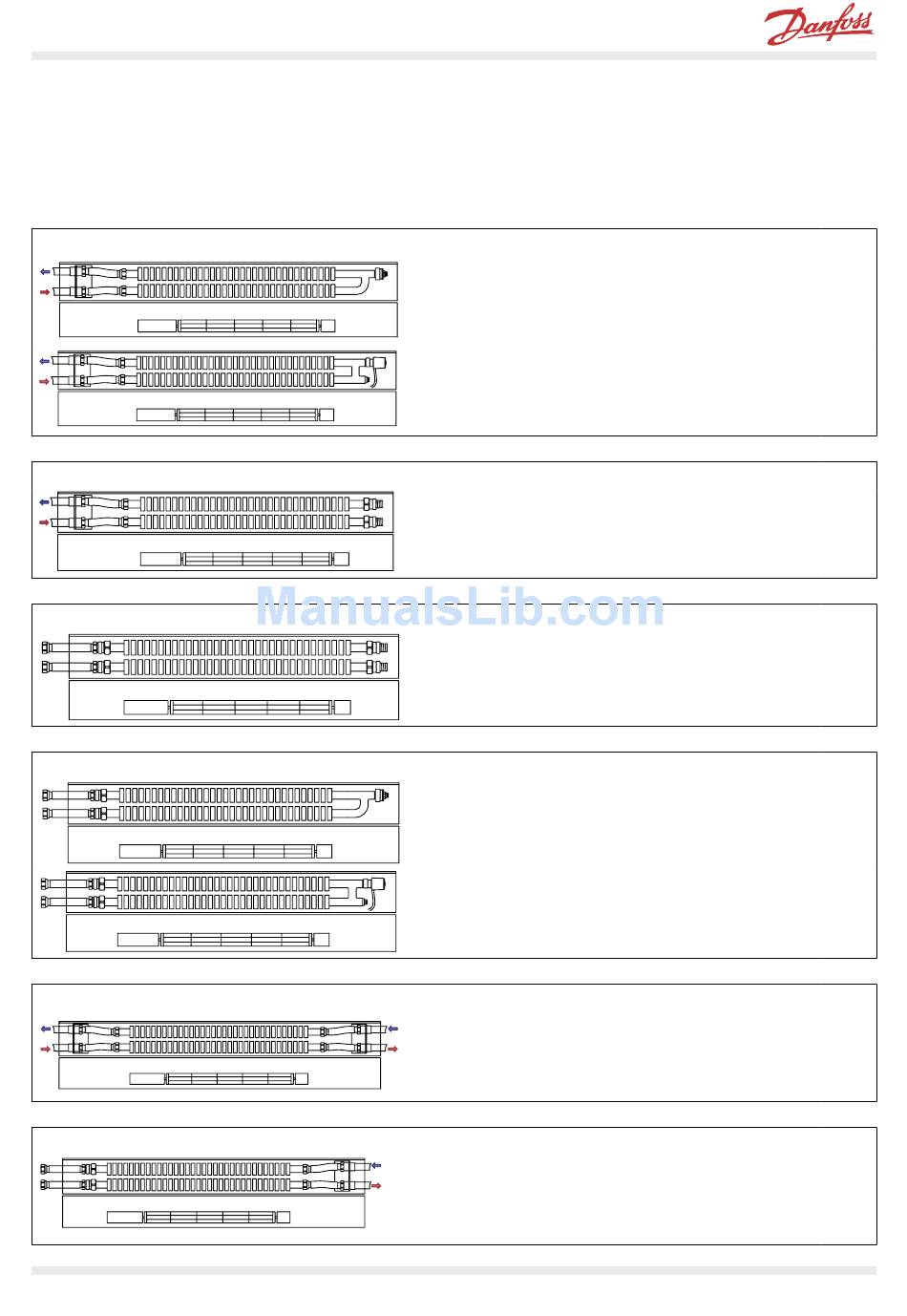

S-panel: Stand-alone panel unit with connection to
system pipework, incl. return bend with air vent.
ST-panel: Stand-alone panel unit with connection to
system pipework, incl. return valve with TWA-A thermal
actuator and air vent.
C-panel with connection to system pipework and nip-
ples for direct panel extension with other panels.
E-panel for use with direct connection to two panels.,
incl. flexible hoses and nipples.
R-panel: Panel for finishing panel string, incl. flexible
hoses and air vent.
RT-panel: Panel for finishing panel string, incl. flexible
hoses, air vent and TWA-A thermal actuator.
L-panel for series connection of panels of the same string
that are not connected directly into a panel. Closed at
both ends with connection to tube system.
F-panel for ending a series connection panel string before
tubing is connected to the next panel, incl. flexible
hoses and system connection.
