Dimensions

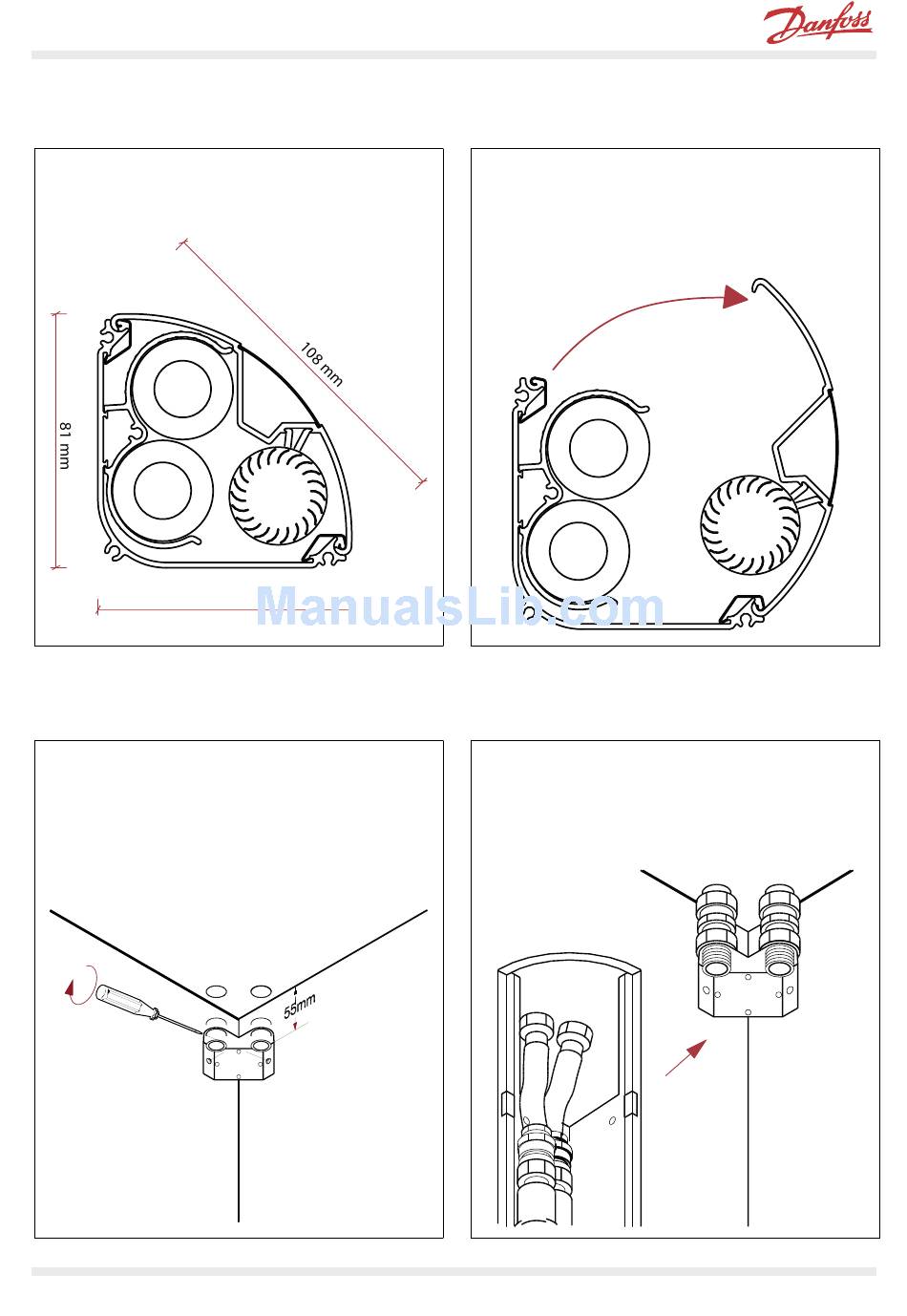

Product dimensions
Convec InLine panels measure 81 mm in width, 81 mm
in height and 108 mm across.
Installation
Connection bracket
A connection bracket is used to connect to the pipe
work system to prevent transmission of any expansions
from the system onto the panel.
The connection bracket can be installed early in the
construction period, which allows the system pipe
work to be completed at an early stage.
CONVEC
81 mm
VD.YC.D2.02
Hinge
The Front profile of the InLine panel is fixed firmly to
the installation profile with hinge clips which allows
the panel to be opened without disassembling the
front profile. The panel can be opened to both sides.
Installing the panel
The InLine installation profile can easily be slided over
the connection bracket.
The installation profile can hereafter be fixed firmly to
the support trough pre-drilled holes.
© Danfoss 01/2006
