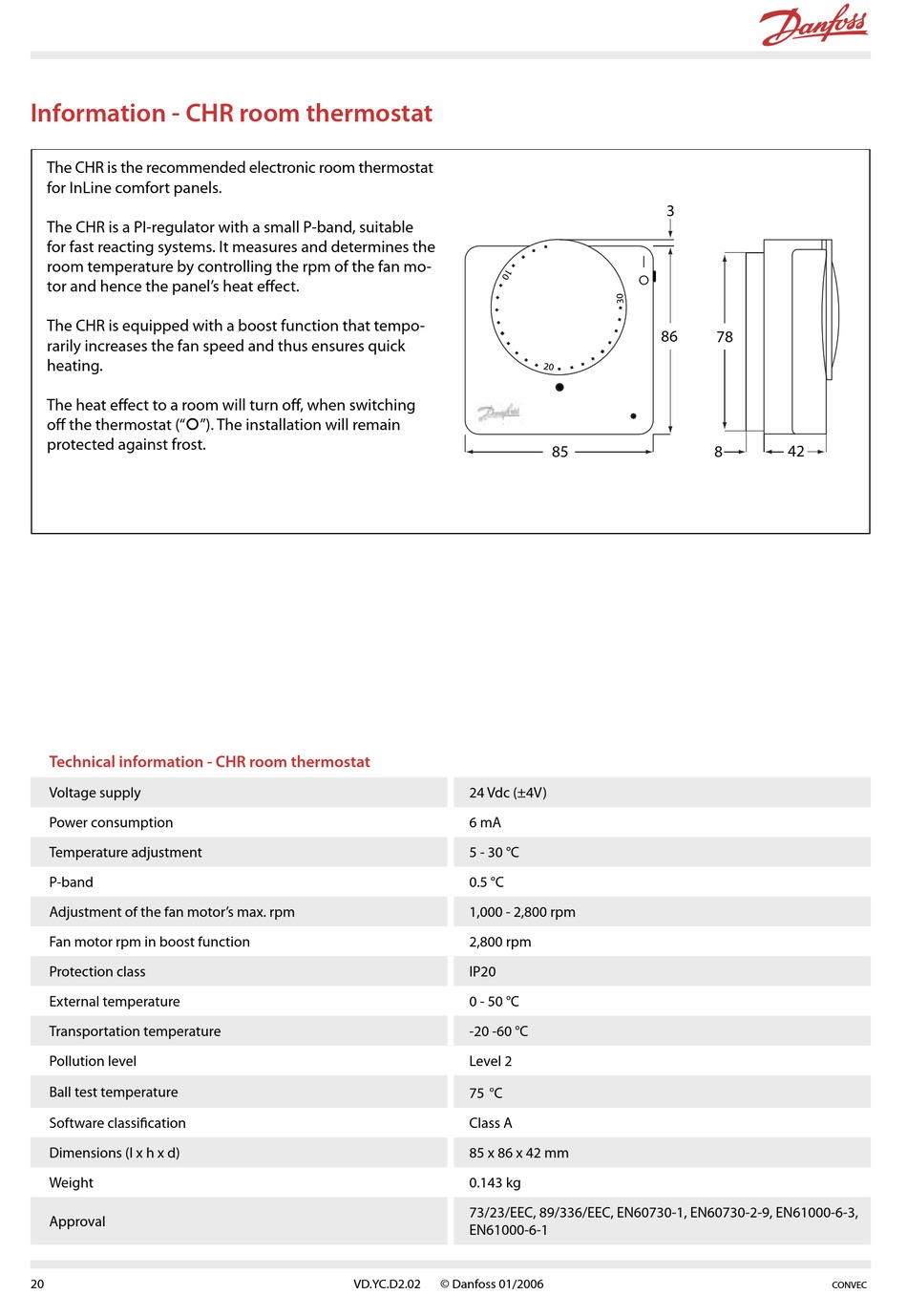

Information - CHR room thermostat

The CHR is the recommended electronic room thermostat
for InLine comfort panels.
The CHR is a PI-regulator with a small P-band, suitable
for fast reacting systems. It measures and determines the
room temperature by controlling the rpm of the fan mo-
tor and hence the panel's heat effect.
The CHR is equipped with a boost function that tempo-
rarily increases the fan speed and thus ensures quick
heating.
The heat effect to a room will turn off, when switching
off the thermostat (""). The installation will remain
protected against frost.
Technical information - CHR room thermostat
Voltage supply
Power consumption
Temperature adjustment
P-band
Adjustment of the fan motor's max. rpm
Fan motor rpm in boost function
Protection class
External temperature
Transportation temperature
Pollution level
Ball test temperature
Software classification
Dimensions (l x h x d)
Weight
Approval
20
24 Vdc (±4V)
6 mA
5 - 30 °C
0.5 °C
1,000 - 2,800 rpm
2,800 rpm
IP20
0 - 50 °C
-20 -60 °C
Level 2
75 °C
Class A
85 x 86 x 42 mm
0.143 kg
73/23/EEC, 89/336/EEC, EN60730-1, EN60730-2-9, EN61000-6-3,
EN61000-6-1
VD.YC.D2.02 © Danfoss 01/2006
3
|
�
86
78
85 8
42
CONVEC
