Akva Vita TDP-F
District heating flat station for direct heating
and domestic hot water systems
Akva Vita TDP-F
Table of contents
DH-SMT/PL
Akva Vita TDP-F .............................................1
Table of contents ...........................................1
Safety notes ...................................................2
Delivery ..........................................................2
Transport and storage ..................................2
Mounting .......................................................3
Pipes connections ...........................................4
Electrical connection .......................................4
Filling, start-up ................................................4
Control ...........................................................5
Maintenance ..................................................7
Troubleshooting DHW ..................................8
Troubleshooting HE ......................................9
VI.KR.Z1.02 ©
Danfoss 09/2006
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss Akva Vita TDP-F
Summary of Contents for Danfoss Akva Vita TDP-F
-
Page 1: Table Of Contents

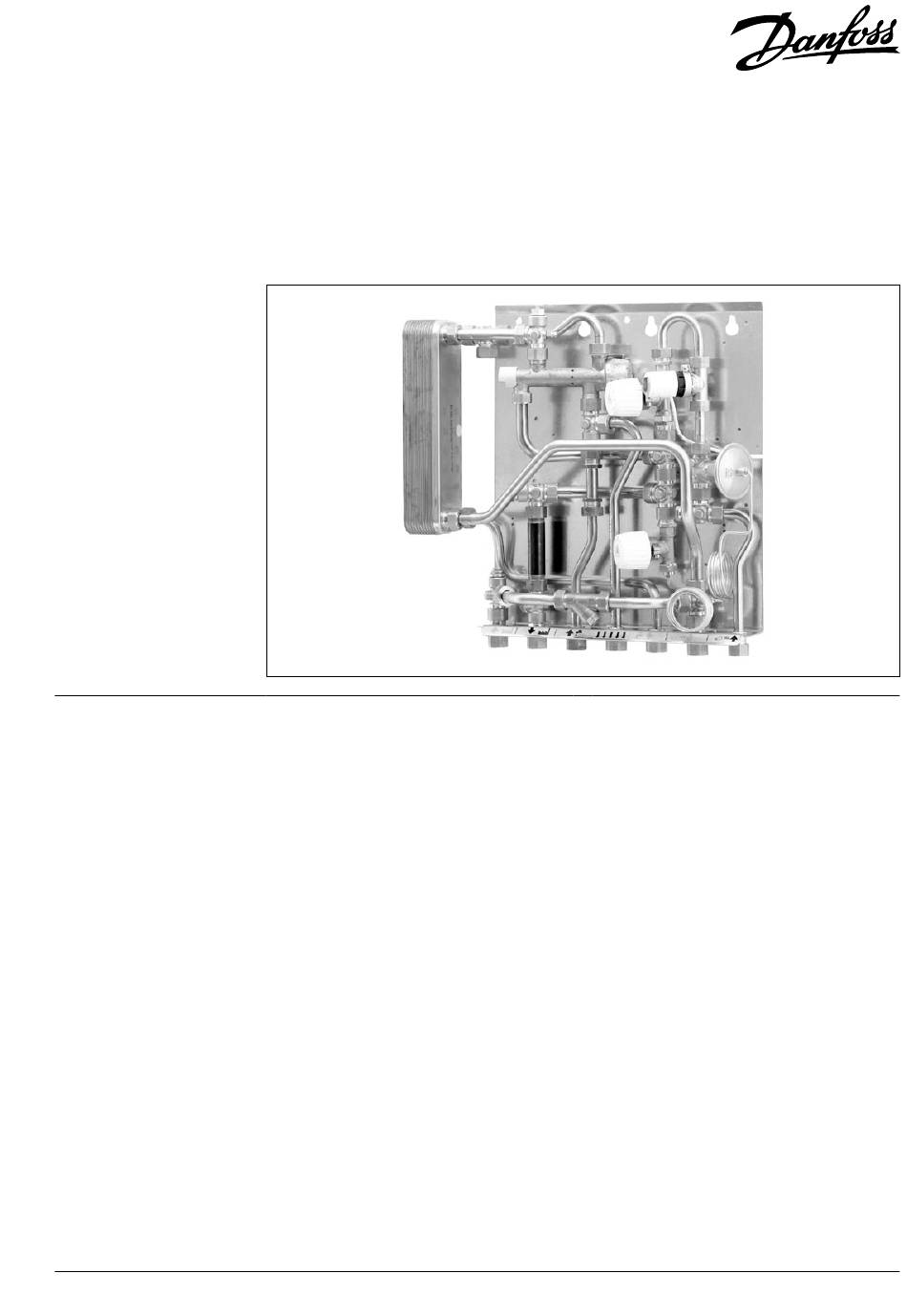

Akva Vita TDP-F District heating flat station for direct heating and domestic hot water systems Akva Vita TDP-F Table of contents Akva Vita TDP-F ..........1 Table of contents ...........1 Safety notes ...........2 Delivery ............2 Transport and storage ........2 Mounting ............3 Pipes connections ...........4... -
Page 2: Safety Notes
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Safety notes Following instructions refer to the standard The risk of persons being injured and equipment design of the Akva Vita TDP-F flat station. damaged increases considerably if the Special versions of flat stations are available... -
Page 3: Mounting
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Mounting The flat station must be installed and connected - Remember pump assembly and non-return by authorized service personnel. valve mounting in the circulation installation system. (not part of the delivery) -
Page 4: Pipes Connections
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Pipes connections Internal installation and district heating* pipes connections must be made by means of threaded or welded connections. Connections: 1 District heating (DH) supply 2 District heating (DH) return... -
Page 5: Control
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Control 1. Differential pressure controller The differential pressure controller reduces the fluctuating pressure in the district heating network to a small and invariable operating pressure in the flat station. - Page 6 Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW 4. DHW temperature control The DHW temperature is controlled by a proportional valve – the PM controller. The DHW temperature control is realized by turning the lever towards the red (hot) or blue (cold) mark.
-
Page 7: Maintenance
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Thermostatic by-pass (optional) As an option the flat station can be equipped with a by-pass thermostat, Danfoss FJVR, which ensures that hot water is available immediately when tapping starts. -
Page 8: Troubleshooting Dhw
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Troubleshooting Problem Possible cause Solution If the quantity of tapping water Locate defect in another part In general: Does the PM is normal (temperature of the installation... -
Page 9: Troubleshooting He
Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Troubleshooting If operating disturbances occur, the following basic - the supply temperature of the district heating features should be checked before carrying out is at the normal level (summer, at least 60 °C actual troubleshooting: - winter, at least 70 °C),... - Page 10 Instructions Akva Vita TDP-F - district heating flat station for direct HE and DHW Danfoss Redan A/S Sindalsvej 33-35 DK-8240 Risskov, Denmark Phone: +45 87 43 89 43 Fax: +45 87 43 89 44 redan@danfoss.com www.redan.danfoss.dk VI.KR.Z1.02 © DH-SMT/PL Danfoss 09/2006...
