Control
InLine comfort panels can either be controlled by a CHR room
thermostat or via an external 0-10 V BMS signal.
When using a CHR room thermostat, the panel and thermostat
are connected with a 4-lead cable. If more panels are added to
the same thermostat, they are connected with a 2-lead cable.

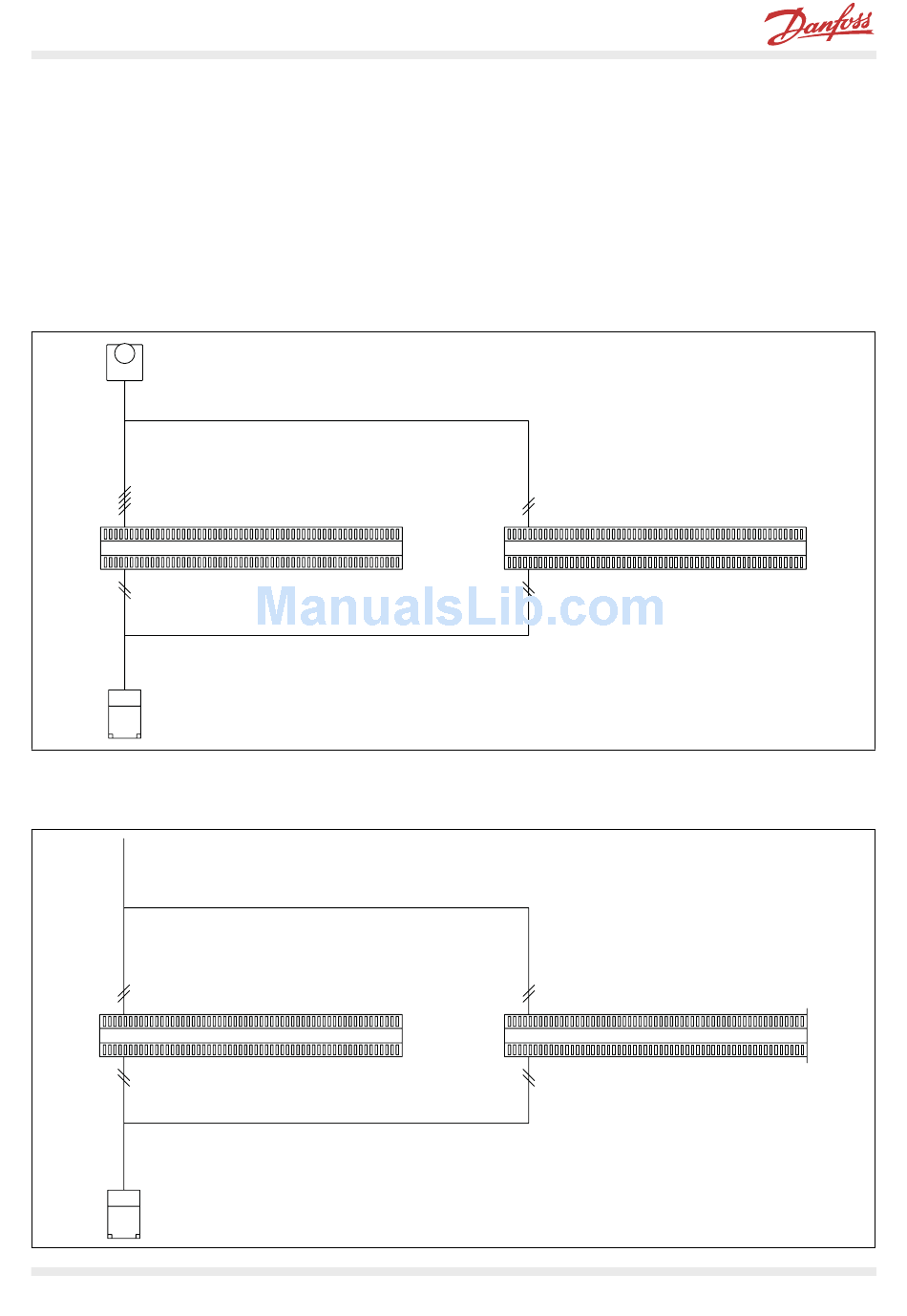

Control using CHR room thermostat
CHR room thermostat
TDM power supply
Control with 0-10 V BMS signal
0-10 V BMS signal
TDM power supply
CONVEC
When a 0-10 V CTS signal is used to control the panels, "0" is
connected directly into the panel.
PLEASE NOTE!
power supplies.
VD.YC.D2.02 © Danfoss 01/2006
"0" will be shared jointly when using several
17
