MAKING MODERN LIVING POSSIBLE
Convec Comfort Panels
InLine product programme
Product Description . . . . . . . . . . . . . . . . . . 2
Technical information / specifications . . . . . . . . . 3
Design . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . 5
Adjustment . . . . . . . . . . . . . . . . . . . . . . 6
Applications . . . . . . . . . . . . . . . . . . . . . 7
Panel variants - left . . . . . . . . . . . . . . . . . . 8
Panel variants - right . . . . . . . . . . . . . . . . . 9
Panel configuration I . . . . . . . . . . . . . . . . .10
Panel configuration II . . . . . . . . . . . . . . . . .11
Heat output I . . . . . . . . . . . . . . . . . . . . .12
Heat output II . . . . . . . . . . . . . . . . . . . . .13
Heat output III . . . . . . . . . . . . . . . . . . . .14
Table of corrections - noise level . . . . . . . . . . . .15
Calculation of pressure loss . . . . . . . . . . . . . .16
Controls . . . . . . . . . . . . . . . . . . . . . . .17
Systems with CHR room thermostat . . . . . . . . . .18
Systems with BMS control . . . . . . . . . . . . . . .19
Information - CHR room thermostat . . . . . . . . . .20
Adjustment of the CHR room thermostat . . . . . . . .21
Information - CHM motor control . . . . . . . . . . .22
Information - TDM power supply . . . . . . . . . . . .23
Power consumption . . . . . . . . . . . . . . . . . .24
Ordering InLine Comfort Panels . . . . . . . . . . . .25
Accessories . . . . . . . . . . . . . . . . . . . . . .26
Notes . . . . . . . . . . . . . . . . . . . . . . . . .27
Placing orders . . . . . . . . . . . . . . . . . . . .28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss InLine
Summary of Contents for Danfoss InLine
-
Page 1: Table Of Contents
Panel configuration II ....11 Ordering InLine Comfort Panels ... .25 Heat output I .....12 Accessories . -
Page 2: Product Description

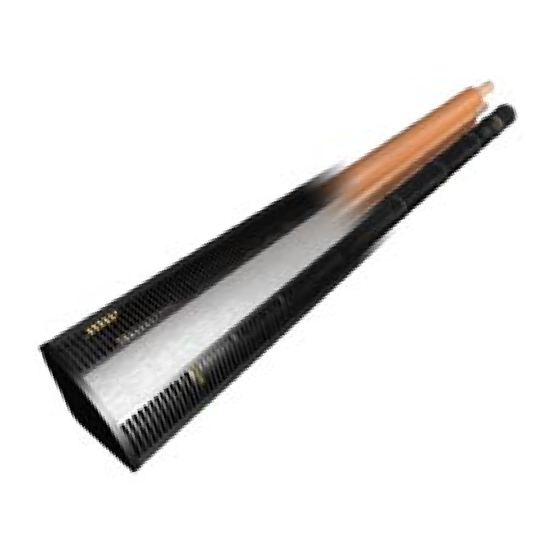

Product Description Convec InLine Panel InLine is a compact comfort panel that can be used for both heating and cooling applications in buildings. This product sheet only covers InLine in heating applications. Please con- tact Danfoss for advice on InLine in cooling applications. -
Page 3: Technical Information / Specifications
Visual optimisation (empty panel casing) Safety and handling during the building period InLine can be supplied as an empty panel casing (without During the building period and before installation, it is motor or pipes) for use in projects where for aesthetic rea- important to store and handle InLine panels correctly. -
Page 4: Design
Design Front profile (aluminium) Motor Finned pipe, flow (copper) Impeller coupling (plastic) Finned pipe, return (copper) Fan (aluminium) Sliding bush Bearing block (aluminium/brass) Pipe holder (aluminium) Installation profile (aluminium) Hinge clip (steel) Panel end (aluminium) VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 5: Dimensions
Product dimensions Hinge Convec InLine panels measure 81 mm in width, 81 mm The Front profile of the InLine panel is fixed firmly to in height and 108 mm across. the installation profile with hinge clips which allows the panel to be opened without disassembling the front profile. -
Page 6: Adjustment
Defining the connection side of the panel In order to define the left and right connection side of an InLine panel, it is necessary to look at the panel from the “Fan-side” of the panel. Left Right VD.YC.D2.02... -
Page 7: Applications
One pipe system InLine panels can be used in a traditional two pipe InLine panels can also be used in a one pipe system. system or connected in series of lengths of up to 15 However, this will create a different output from each m with the potential for intermediary pipe work. -
Page 8: Panel Variants - Left
Panel variants - left InLine comfort panels are available in six different panel Each panel variant can be supplied in a left or right hand variants, which differ according to use and panel connec- version. See p. 6 for information on defining left and right tions. -
Page 9: Panel Variants - Right
Closed at both ends with connection to tube system. Finishing panel (F) F-panel for ending a series connection panel string before tubing is connected to the next panel, incl. flexible hoses and system connection. VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 10: Panel Configuration I
Max. 3500 mm Max. 3500 mm Max. 7000 mm Panel extension, 3 or more panels Connection panel x number of panel extensions Return panel Max. 3500 mm Max. 3500 mm Max. 3500 mm Max. 15000 mm VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 11: Panel Configuration Ii
Series connection using finishing panels Connection panel Finishing panel Can be connected to a: - new series connection panel - new panel extension - stand-alone panel Max. 3500 mm Max. 3500 mm Max. 7000 mm VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 12: Heat Output I
681 W 60 l/h 2.80 - 2.99 m 755 W 66 l/h 3.00 - 3.19 m 829 W 73 l/h 3.20 - 3.39 m 902 W 79 l/h 3.40 - 3.50 m 983 W 86 l/h VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 13: Heat Output Ii
990 W 87 l/h 2.80 - 2.99 m 1,108 W 98 l/h 3.00 - 3.19 m 1,227 W 108 l/h 3.20 - 3.39 m 1,347 W 119 l/h 3.40 - 3.50 m 1,467 W 129 l/h VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 14: Heat Output Iii
625 W 27 l/h 2.80 - 2.99 m 703 W 31 l/h 3.00 - 3.19 m 781 W 34 l/h 3.20 - 3.39 m 859 W 38 l/h 3.40 - 3.50 m 938 W 41 l/h VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 15: Table Of Corrections - Noise Level
Fan speed, rpm. Example: An InLine panel of 3.0 metres provides, at a flow of 21 l/h, fan speed at 1500 rpm and a temperature set of 70/40/20° an effect of 709 W. To increase the effect to 900 W will entail a correction factor of 900/709 = 1.26. The diagram shows that the fan speed has to be 1950 rpm, creating a noise level of approximately 32 dB(A). -
Page 16: Calculation Of Pressure Loss
√ Σ √ Pressure loss Δp is calculated using the formula Δp = (q/K v ) where q = flow in m Pressure loss in this example is therefore: Δp = (0.225/0.67) = 0.1 bar VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 17: Controls
Control InLine comfort panels can either be controlled by a CHR room When a 0-10 V CTS signal is used to control the panels, “0” is thermostat or via an external 0-10 V BMS signal. connected directly into the panel. -
Page 18: Systems With Chr Room Thermostat
CHM # 01 Room #n... -
Page 20: Information - Chr Room Thermostat
Information - CHR room thermostat The CHR is the recommended electronic room thermostat for InLine comfort panels. The CHR is a PI-regulator with a small P-band, suitable for fast reacting systems. It measures and determines the room temperature by controlling the rpm of the fan mo- �... -
Page 22: Information - Chm Motor Control
C.valve - 24V - max. 1.1A C.valve + H.valve - 24V - max. 1.1A H.valve + RPM (0-10V) Heating/cooling from CHR* 0Vdc 24 Vdc 0Vdc Power supply from trafo 24-28Vdc 24Vdc... -
Page 23: Information - Tdm Power Supply
Information - TDM power supply The TDM voltage supply supplies 24 Vdc to the InLine 73 mm 62 mm panel and can withstand a maximum load of 1A. The TDM voltage supply is double isolated and manufac- tured of polyurethane. -
Page 24: Power Consumption
Power consumption The Convec InLine panel’s power consumption depends The fan motor must have a maximum load with a total upon the rpm of the fan and the panel length (= number of power that does not exceed 10 W. -
Page 25: Ordering Inline Comfort Panels
Unique panel description for personal use, e.g. HALL002 or ROOM232-03 Example: An InLine stand-alone panel with TWA-A thermal actuator and a length of 2345, left connection, to be used as panel no. 3 in room no. 128 can be defined with the following panel order number: ILST-2345-L-NO3ROOM128 VD.YC.D2.02... -
Page 26: Accessories
Spare parts Product Description Order no. Fan wheel 400 mm fan wheel unit. 088H4803 Bearing block 088H4802 Motor control Board with cables for installing in panel. 088H4051 Motor, right rotating 088H4800 Motor, left rotating 088H4801 VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 27: Notes
Remarks VD.YC.D2.02 © Danfoss 01/2006 CONVEC... -
Page 28: Placing Orders
Placing orders Danfoss A/S looks forward to receiving your order and Customer’ s (person placing order) name and address. would be happy to help you place your order for a Convec InLine climate panel. Delivery address. We require the following information in order to correctly ...
