 Lens rotates to nearly any angle for

flexible installations

 Low-profile design blends in with

nearly any décor



" Sony Super HAD II CCD

 3.7mm Pinhole lens

 Metal case for vandal resistance

Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.

EV-6640-N3WQ (NTSC)

EV-6640-P3WQ (PAL)

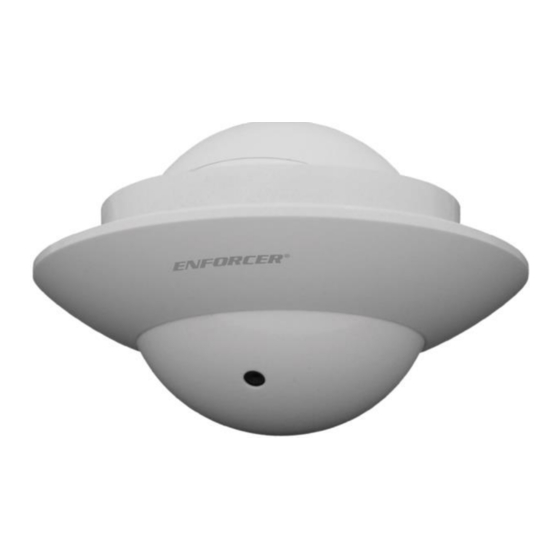

Flush-Mount UFO Camera

Manual

 2D-NR (2D Digital Noise Reduction)

cleans and sharpens images by

reducing camera noise

 DWDR (Digital Wide Dynamic Range)

captures a clean, high-resolution

image even in strong backlight.

 Small size protrudes only 1" (26mm)

Table of Contents

Need help?

Do you have a question about the EV-6640-N3WQ and is the answer not in the manual?

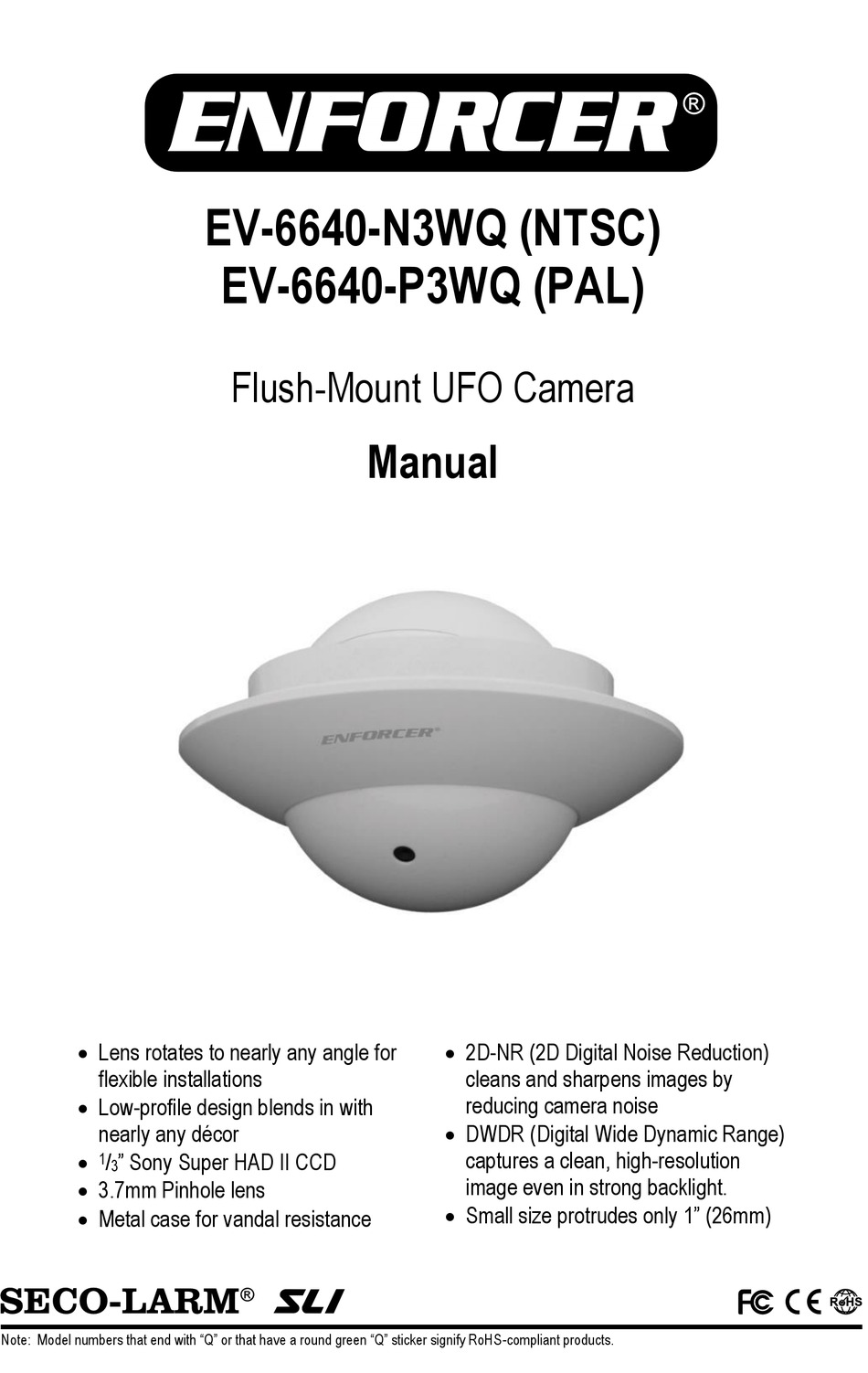

Page 1 EV-6640-N3WQ (NTSC) EV-6640-P3WQ (PAL) Flush-Mount UFO Camera Manual  Lens rotates to nearly any angle for  2D-NR (2D Digital Noise Reduction) flexible installations cleans and sharpens images by reducing camera noise  Low-profile design blends in with  DWDR (Digital Wide Dynamic Range) nearly any décor...
Page 2: Specifications
ENFORCER Flush-Mount UFO Camera Specifications: EV-6640-N3WQ EV-6640-P3WQ Type Flush-Mount UFO Camera ” Sony Super HAD II Resolution 700 TVL Video output format NTSC Effective pixels 976x492 pixels 976x582 pixels DNR (2D-NR) DWDR 960H* Scanning system 2:1 Interlace Sync Internal Video output 1.0Vp-p Composite video, 75Ω...
Page 3 ENFORCER Flush-Mount UFO Camera Overview: Standard installation Camera Mounting Ring bracket Flange Ball screws x3 (inside ceiling/wall) Wall Ceiling Base Surface-mount installation – Requires the EV-6640SWQ (Sold Separately) Camera Mounting Flange Ball screws x3 Wall Ceiling Run the power and...
Page 4: Troubleshooting
ENFORCER Flush-Mount UFO Camera Troubleshooting:  Check that the camera is powered up.  Check that the power supply’s polarity is correct The screen is blank.  Check that the monitor is powered up.  Check that the video cable connecting the camera to the monitor is connected properly.
