4-in-1 HD TVI, CVI, AHD, Analog
Model #
EV-Y2201-A2WQ
EV-Y2201-A2GQ
EV-Y2201-AMWQ
EV-Y2201-AMGQ
Features:
• 1080p Resolution
• ICR Module
• 3D-NR (3D Digital Noise Reduction)
• DWDR (Digital Wide Dynamic Range)
• Joystick OSD control

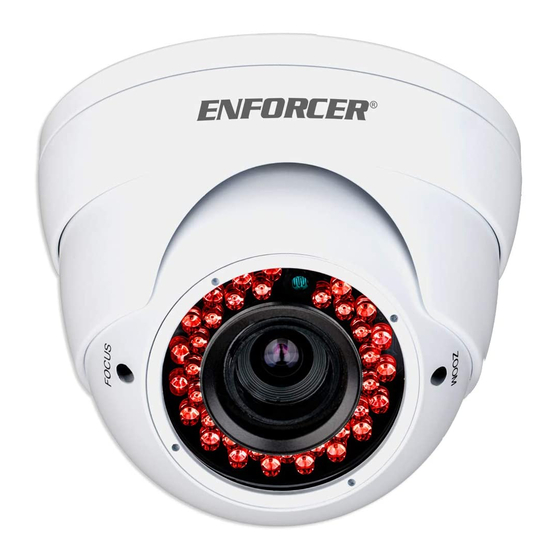

Rollerball Cameras
Manual
EV-Y2201-AMWQ shown
Lens
Resolution
2.8mm
1080p
2.8mm
1080p
2.8~12mm
1080p
2.8~12mm
1080p
Voltage
12VDC
12VDC
12VDC
12VDC
• Heavy-duty vandal-resistant design
• Rugged, weatherproof (IP65) construction
• Split-glass design eliminates IR reflection
• Cables concealed in bracket to
prevent tampering
Style
Color
Rollerball
White
Rollerball
Gray
Rollerball
White
Rollerball
Gray
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER EV-Y2201-A2WQ
Summary of Contents for ENFORCER EV-Y2201-A2WQ
- Page 1 4-in-1 HD TVI, CVI, AHD, Analog Rollerball Cameras Manual EV-Y2201-AMWQ shown Model # Lens Resolution Voltage Style Color EV-Y2201-A2WQ 2.8mm 1080p 12VDC Rollerball White EV-Y2201-A2GQ 2.8mm 1080p 12VDC Rollerball Gray EV-Y2201-AMWQ 2.8~12mm 1080p 12VDC Rollerball White EV-Y2201-AMGQ 2.8~12mm 1080p 12VDC...
-
Page 2: Specifications
ENFORCER 4-in-1 HD Rollerball Cameras (TVI, CVI, AHD, Analog) Specifications: Model EV-Y2201-A2WQ EV-Y2201-A2GQ EV-Y2201-AMWQ EV-Y2201-AMGQ Housing color White Gray White Gray Type Varifocal Rollerball Camera Fixed Rollerball Camera Formats TVI / CVI / AHD / Analog (TVI Default) CMOS " 2MP Aptina CMOS... -
Page 3: Optional Mounting Brackets
ENFORCER 4-in-1 HD Rollerball Cameras (TVI, CVI, AHD, Analog) Overview: OSD Controller Settings: Case Camera ball Screws (2 shown, use all 4 in installation) To set format via the OSD controller, press the controller in the direction of the desired setting, hold for 5 seconds, and release when the camera restarts. -
Page 4: Troubleshooting
ENFORCER 4-in-1 HD Rollerball Cameras (TVI, CVI, AHD, Analog) Troubleshooting: • Check that the camera is powered up • Check that the power supply’s polarity is correct The screen is black • Check that the monitor is powered up • Check that the video cable connecting the camera to the monitor is connected properly •...
