" Sony Super HAD CCD
1
3
12VDC/24VAC
NVD Bullet Cameras have an ultra-low lux rating of 0.000006 allowing the
camera to see in almost total darkness.
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.

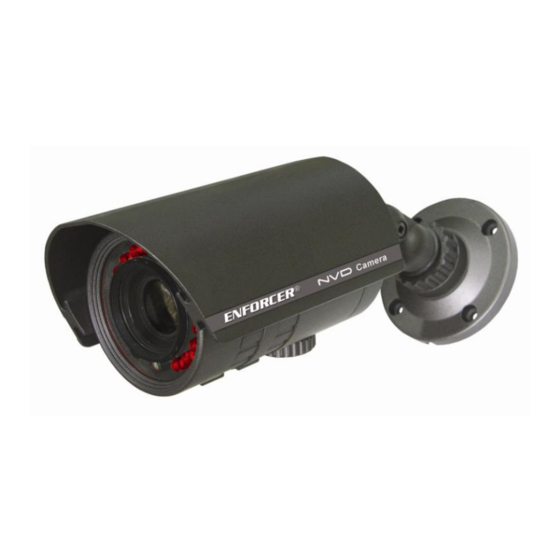

NVD Bullet Cameras
On-Screen Display Manual
3 Cameras in 1:
Model #
EV-1626-NKGQ
EV-1626-NWGQ
Lens Size
2.8~12mm
6~50mm
OSD with service monitor port
550 TV lines
Advertisement
Table of Contents
Related Manuals for ENFORCER ENFORCER EV-1626-NWGQ
Summary of Contents for ENFORCER ENFORCER EV-1626-NWGQ
- Page 1 NVD Bullet Cameras On-Screen Display Manual 3 Cameras in 1: Model # Lens Size EV-1626-NKGQ 2.8~12mm EV-1626-NWGQ 6~50mm ” Sony Super HAD CCD OSD with service monitor port 12VDC/24VAC 550 TV lines NVD Bullet Cameras have an ultra-low lux rating of 0.000006 allowing the camera to see in almost total darkness.
- Page 2 On-Screen Display Manual Precautions: PLEASE READ THIS MANUAL THOROUGHLY BEFORE USING THE CAMERA TO BECOME FAMILIAR WITH THE CORRECT OPERATIONAL PROCEDURES. Precautions While Camera is in Use: Do not open the camera body or touch Do not disconnect the power cord from ...
-
Page 3: Table Of Contents
On-Screen Display Manual Table of Contents: Features............. Day/Night ........... Menu Diagram ........... 3DNR ............Special Menu Diagram ......Special ............Menu Setup ..........Adjust ............Lens ............Reset ............Exposure............ Exit............. White Balance ........... Troubleshooting ........Features: 3DNR (DNR with 3D Filtering) DSP Chip Gives day and night images high resolution and provides quality images at low-light levels. -
Page 4: Menu Diagram
On-Screen Display Manual Menu Diagram: SETUP MENU SETTINGS SETTING OPTIONS LENS DC/MANUAL Range: 0~100 Level Adjustable SHUTTER (seconds) FLK, 1/60, 1/250, 1/500, 1/2000, 1/5000, 1/10000, 1/100000 BRIGHTNESS Range: 0~100 Level Adjustable OFF / LOW / MIDDLE / HIGH SENSE-UP Range: x2~x258 Level Adjustable OFF / BLC (GAIN: LOW, MIDDLE, HIGH/DEFAULT: LEFT/RIGHT, WIDTH, TOP / EXPOSURE... -
Page 5: Special Menu Diagram
On-Screen Display Manual Special Menu Diagram: DEFAULT SPECIAL MENU SETTING OPTIONS SETTINGS CAMERA TITLE ON / OFF DIGITAL–EFFECT FREEZE / MIRROR / D-ZOOM / GAMMA / NEG. IMAGE MOTION AREA SELEC: AREA 1~4 AREA DISPLAY: ON / OFF LEFT / RIGHT: 0~100 Level Adjustable WIDTH: 0~100 Level Adjustable TOP / BOTTOM: 0~100 Level Adjustable HEIGHT: 0~100 Level Adjustable... -
Page 6: Lens
On-Screen Display Manual Lens: This function controls the brightness of the image. 1. Move the arrow indicator to LENS using the UP and DOWN buttons on the SETUP menu screen. 2. Select the desired lens type by pressing the LEFT and RIGHT buttons. 3. - Page 7 On-Screen Display Manual AGC (AUTOMATIC GAIN CONTROL): A higher gain increases brightness, but also increases any noise. A. OFF: Deactivates the AGC function. B. LOW: Sets automatic gain control to LOW. C. MIDDLE: Sets automatic gain control to MIDDLE. D.
- Page 8 On-Screen Display Manual BLC, continued BLC OFF BLC ON C. Select a mode using the LEFT and RIGHT buttons, then press the SET button. Select BLC to adjust the desired BLC area and GAIN level. GAIN: Adjust the BLC sensitivity. DEFAULT: Go back to factory setting.
-
Page 9: White Balance
On-Screen Display Manual D-WDR (Digital Wide Dynamic Range): A. Select D-WDR using the UP and DOWN buttons on the EXPOSURE menu screen. B. Select the desired feature by using the LEFT and RIGHT buttons. D-WDR : When there are both bright SENSE-UP and dark image areas, D-WDR makes both of them distinct. -
Page 10: Day/Night
On-Screen Display Manual Day / Night: 1. Select DAY / NIGHT using the UP and DOWN buttons on the SETUP menu screen. 2. Select the desired mode using the LEFT and RIGHT buttons. COLOR: The picture is always displayed in color. ... -
Page 11: Special
On-Screen Display Manual Special: 1. Select SPECIAL by using the UP and DOWN buttons. 2. Select one of the modes by using the UP and DOWN buttons. CAM TITLE: When input, the Camera ID is displayed on the monitor. A. -
Page 12: Factory Default
On-Screen Display Manual Cam Title, continued E. To select the camera title position on screen, move the cursor to POS and press the SET button. Created camera title is displayed. G. Select a new position by using the four directional buttons. Press the SET button to confirm the position. - Page 13 On-Screen Display Manual D-Effect, continued MIRROR OFF MIRROR ON C. D-ZOOM: Digital zoom available. (1x~32x) PAN: -100~100 adjustable range. TILT: -100~100 adjustable range. D. GAMMA: 0.05~1.00 adjustable range. E. NEG. IMAGE: ON: Activates negative image. OFF: Normal image. F. RETURN: Return to SPECIAL menu. ...
- Page 14 On-Screen Display Manual PRIVACY: Hides desired on-screen area. A. Set up the area mode using the four directional buttons. AREA SELECT: Determines the area selected. AREA DISPLAY: Determines whether the area display is activated or disabled. LEFT / RIGHT and TOP / BOTTOM: Determines the desired area position between 0~100.
-
Page 15: Adjust
On-Screen Display Manual Adjust: When the SETUP menu screen is displayed, select ADJUST using the UP and DOWN buttons. 2. Select the desired mode by using the UP and DOWN buttons. SHARPNESS: Improves image clarity. Setting the level too high can distort the image or cause noise. -
Page 16: Troubleshooting
On-Screen Display Manual Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. The screen is blank. Check that the monitor is powered up. Check that the video cable connecting the camera to the monitor is connected properly.
