Sony Super HAD II CCD IR Day/Night Weatherproof
/
3
IR LEDs for Nighttime Use Up to 50ft (15m) Range
NTSC
Model
480 TV Lines
EV-1026-N2SQ
EV-1026-N3SQ
EV-1026-N6SQ
600 TV Lines
EV-1606-N2SQ
EV-1606-N3SQ
EV-1606-N6SQ
SECO-LARM
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Day/Night Camera
Manual
PAL
Model
EV-1026-P2SQ
EV-1026-P3SQ
EV-1026-P6SQ
EV-1606-P2SQ
EV-1606-P3SQ
EV-1606-P6SQ
Lens
Viewing
Size
Angle
2.9mm
120°
3.6mm
92°
6.0mm
53°
2.9mm
120°
3.6mm
92°
6.0mm
53°
(EV-1026-N3SQ shown)
# of
IR LEDs
12
24
24
12
24
24
Advertisement
Table of Contents
Related Manuals for ENFORCER EV-1026-N2SQ
Summary of Contents for ENFORCER EV-1026-N2SQ

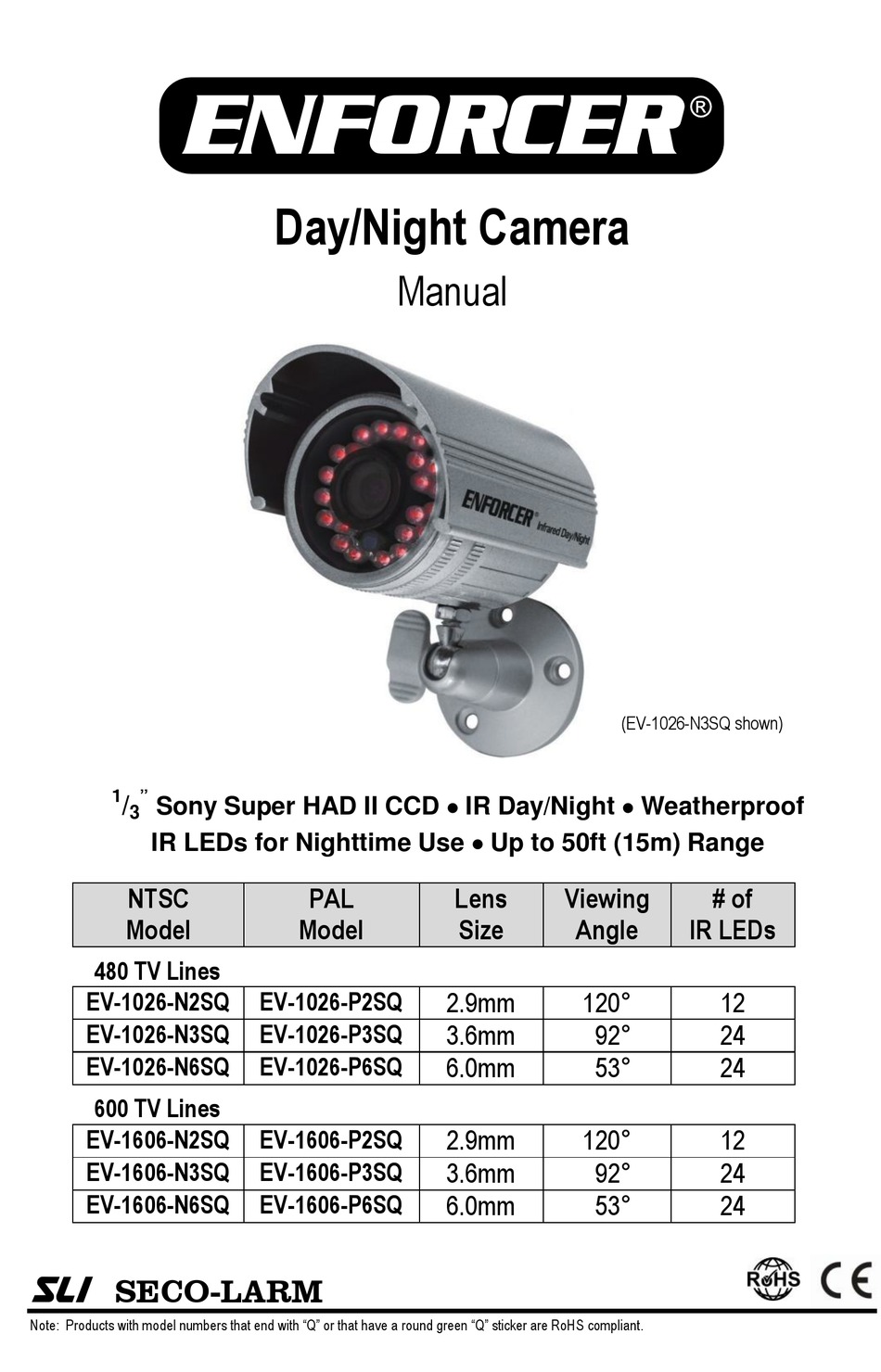

- Page 1 IR LEDs for Nighttime Use Up to 50ft (15m) Range NTSC Lens Viewing # of Model Model Size Angle IR LEDs 480 TV Lines 2.9mm 120° EV-1026-N2SQ EV-1026-P2SQ 3.6mm 92° EV-1026-N3SQ EV-1026-P3SQ 6.0mm 53° EV-1026-N6SQ EV-1026-P6SQ 600 TV Lines EV-1606-N2SQ EV-1606-P2SQ 2.9mm...
-
Page 2: Specifications
ENFORCER Day/Night Camera Specifications NTSC 1026-N2SQ 1026-N3SQ 1026-N6SQ 1606-N2SQ 1606-N3SQ 1606-N6SQ Model # 1026-P2SQ 1026-P3SQ 1026-P6SQ 1606-P2SQ 1606-P3SQ 1606-P6SQ Type IR bullet camera ” Sony Super HAD II Resolution 480 TV lines 600 TV lines Pickup elements 510x492 pixels (NTSC), 500x582 pixels (PAL) - Page 3 ENFORCER Day/Night Camera Overview: Sunshield Female BNC connector Thumb screw DC Jack DC Plug with terminal block (EV-1026-N3SQ shown) Mounting Important: bracket Do not cut DC jack or female BNC connector as warranty will be voided. Important: Do not remove label or open case as warranty will be voided.
-
Page 4: Troubleshooting
ENFORCER Day/Night Camera Troubleshooting Check that the camera is powered up. Check that the power supply’s polarity is correct. The screen is blank. Check that the monitor is powered up. Check that the video cable connecting the camera to the monitor is connected properly.
