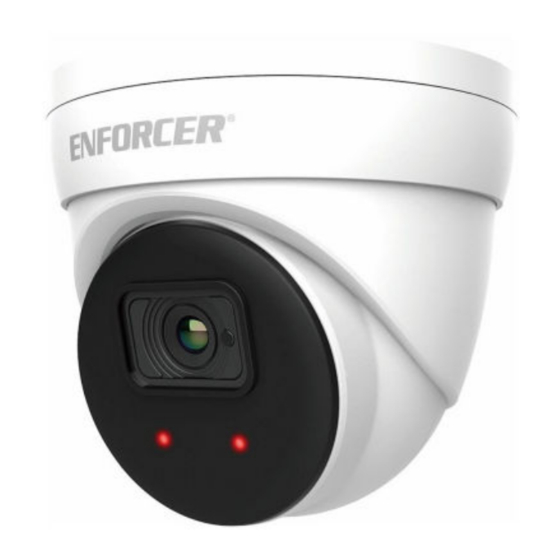

IP 8MP (4K) 2.8mm
Turret Camera
with WDR
EV-N2806-2W4WQ
Installation Manual
Features
1
/
" 8MP Sony CMOS sensor
•
2.8
• 30FPS@4K (3840x2160)
• 2.8mm Lens
• Tri-stream encoding:
H.265, H.264, and MJPEG
• True Wide Dynamic Range (WDR)
• Digital Noise Reduction (3DNR)
• True Day & Night function with ICR module
• ICR sensitivity adjustment
• Corridor mode
• IP66 weatherproof
• IR Range 98' (30m)
• Smart IRs adjust IR strength to conditions
• MicroSD Slot (512GB max)
• PoE (IEEE802.3af), 12VDC
®
• ONVIF
Profile G, S, and T conformant
• Operating temperature: -40°~131° F
(-40°~55° C)
®
ONVIF
is a trademark of ONVIF, Inc
AI Functions
• Human and Vehicle Detection
• Perimeter Intrusion Detection
• Line Crossing Detection
• Stationary Object Detection
• Cross Counting
• Heat Map
• Crowd Density Detection
• Queue Length Detection
• Face Detection
• Facial Recognition
• License Plate Detection
• License Plate Recognition
For the full Web Administration manual,
download from the camera's product page on
www.seco-larm.com.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER EV-N2806-2W4WQ
Summary of Contents for ENFORCER EV-N2806-2W4WQ
- Page 1 IP 8MP (4K) 2.8mm Turret Camera with WDR EV-N2806-2W4WQ Installation Manual Features AI Functions " 8MP Sony CMOS sensor • Human and Vehicle Detection • • 30FPS@4K (3840x2160) • Perimeter Intrusion Detection • 2.8mm Lens • Line Crossing Detection • Tri-stream encoding: •...
- Page 2 IP 8MP (4K) 2.8mm Turret Camera with WDR Parts List 1x Camera 1x Mounting Template 3x Mounting Screws 1x Manual 1x Weatherproof Connector Specifications Type Turret camera Sensor " 8MP Sony CMOS Video encoding H.265/H.264/MJPEG Megapixels Resolution 3840x2160 (4K) Backlight Disable (Default), Back Light, HLC, WDR 2DNR 3DNR...
- Page 3 IP 8MP (4K) 2.8mm Turret Camera with WDR Overview (Continued) Micro SD / Reset button compartment Micro SD Card slot RJ45 Ethernet Jack Reset button DJ Jack Top of camera IMPORTANT NOTES • Do not cut DC jack or RJ45 jack as warranty will be voided. •...
- Page 4 IP 8MP (4K) 2.8mm Turret Camera with WDR Troubleshooting • Check that the camera is powered up. • Check that the power supply’s polarity is correct. The screen is blank • Check that the monitor is powered up. • Check that the video cable connecting the camera to the monitor is connected properly.
