4-in-1 HD TVI, CVI, AHD
Analog Cameras
On-Screen Display Manual
Model
EV-Y2251-A2WQ
EV-Y2251-AMWQ
Lens
Resolution
2.8mm
2MP
2.8~12 mm
2MP

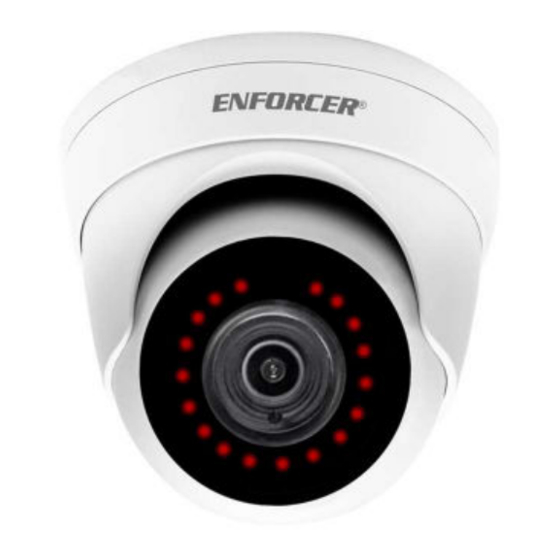

EV-Y2251-A2WQ shown
Voltage
12VDC
12VDC
Style
Color
Turret
White
Turret
White

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-Y2251-A2WQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER EV-Y2251-A2WQ

Summary of Contents for ENFORCER EV-Y2251-A2WQ

  • Page 1 4-in-1 HD TVI, CVI, AHD Analog Cameras On-Screen Display Manual EV-Y2251-A2WQ shown Model Lens Resolution Voltage Style Color EV-Y2251-A2WQ 2.8mm 12VDC Turret White EV-Y2251-AMWQ 2.8~12 mm 12VDC Turret White...

  • Page 2: Table Of Contents

    4-in-1 HD TVI, CVI, AHD Analog Cameras Table of Contents: Programmable Features ........2 Day & Night ............6 Set Format via the DIP Switch ......3 Image Enhance ..........6~7 Main Menu ............3 Video Output ............. 8 Menu Diagram ..........4 Exit ..............

  • Page 3: Set Format Via The Dip Switch

    4-in-1 HD TVI, CVI, AHD Analog Cameras Set Format via the DIP Switch To set the Format via the DIP switch, move the DIP switches to the following combinations. CVBS Format Dip Switch 1 DIP Switch 2 TVI (Default) CVBS (Analog) Main Menu NOTE: An ...

  • Page 4: Menu Diagram

    4-in-1 HD TVI, CVI, AHD Analog Cameras Menu Diagram Main Menu Setting Setting Options Brightness 1~100 (Default: 29) 0~7 (Default: 4) Auto — Global Exposure — — Center — 0~63 (Default: 40) Auto Manual White Bal 0~63 (Default: 30) — Gray world —...

  • Page 5: Auto White Balance

    4-in-1 HD TVI, CVI, AHD Analog Cameras Exposure (Continued) EXPOSURE MODE:  GLOBAL – Choose to automatically adjust light level based on environment.  BACKLIGHT (BLC) – Choose to allow the camera to automatically control the light level to overcome strong backlight conditions.

  • Page 6: Day & Night

    4-in-1 HD TVI, CVI, AHD Analog Cameras Auto White Balance (AWB) (Continued)  MANUAL – Select MANUAL to manually adjust the blue and red color temperature values for the area. o RED – Set the red gain value. Adjust from 0~63 (Default: 40). o BLUE –...
  • Page 7 4-in-1 HD TVI, CVI, AHD Analog Cameras Image Enhance (Continued)  CONTRAST – Adjust the difference between the lightest and darkest parts of an image or video stream. o LEVEL – Higher values will result in increased difference of light and dark. Adjust from 0~16 (Default: 5).

  • Page 8: Video Output

    4-in-1 HD TVI, CVI, AHD Analog Cameras Video Output This function is used to change the Video Output and Video Standards. Select VIDEO OUTPUT on the Main Menu screen.  o TVI – 1080p/25/30 FPS o CVBS – NTSC, PAL o AHD –...
