4-in-1 HD TVI, CVI, AHD, Analog Cameras
On-Screen Display Manual
Model #
EV-Y1201-A2WQ
EV-Y1201-AMWQ
EV-Y2201-A2WQ
EV-Y2201-A2GQ
EV-Y2201-AMWQ
EV-Y2201-AMGQ
EV-Y2201-AMWAQ

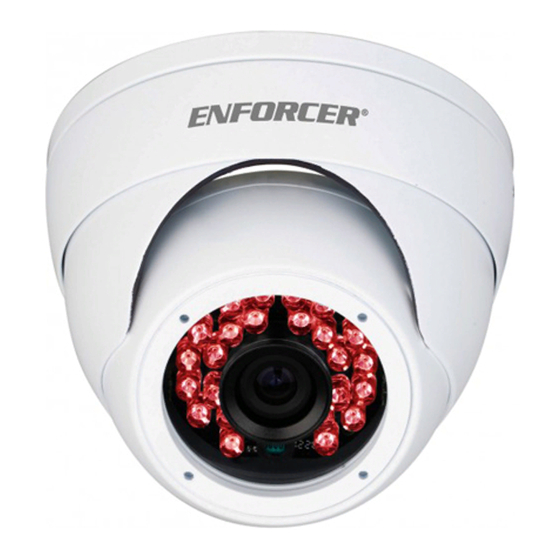

EV-Y2201-AMWQ shown
Lens
Resolution
2.8mm
1080p
2.8~12mm
1080p
2.8mm
1080p
2.8mm
1080p
2.8~12mm
1080p
2.8~12mm
1080p
2.8~12mm
1080p
Voltage
Style
12VDC
Bullet
12VDC
Bullet
12VDC
Rollerball
12VDC
Rollerball
12VDC
Rollerball
12VDC
Rollerball
12VDC
Dome
Color
White
White
White
Gray
White
Gray
White

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-Y1201-A2WQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER EV-Y1201-A2WQ

Summary of Contents for ENFORCER EV-Y1201-A2WQ

  • Page 1 4-in-1 HD TVI, CVI, AHD, Analog Cameras On-Screen Display Manual EV-Y2201-AMWQ shown Model # Lens Resolution Voltage Style Color EV-Y1201-A2WQ 2.8mm 1080p 12VDC Bullet White EV-Y1201-AMWQ 2.8~12mm 1080p 12VDC Bullet White EV-Y2201-A2WQ 2.8mm 1080p 12VDC Rollerball White EV-Y2201-A2GQ 2.8mm 1080p...

  • Page 2: Table Of Contents

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Table of Contents: Programmable Features........2 White Balance ..........11 How to use the OSD Controller ......3 Day & Night ..........12~13 Switching between HD Analog Outputs ... 3 Noise Reduction (NR) ........13 Navigating the OSD..........

  • Page 3: How To Use The Osd Controller

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) How to use the OSD Controller: 1. Press down on the joystick to open the on-screen display (OSD) menu. 2. Use the joystick to navigate the OSD menu. 3. To select an item, press down (enter) on the joystick.

  • Page 4: Menu Diagram

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Menu Diagram: MAIN MENU SETTING SETTING OPTIONS MANUAL SET FOR FIXED LENS CAMERAS INDOOR MIN SHUTTER: 1/30 LENS MODE (PAGE 7) OUTDOOR MAX SHUTTER: 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000...
  • Page 5 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Menu Diagram (continued): MAIN MENU SETTING SETTING OPTION D->N (DELAY): 0~60 N->D (DELAY): 0~60 D->N (AGC): 1~255 D->N (DELAY): 0~60 AUTO N->D (AGC): 1~255 N->D (DELAY): 0~60 DAY&NIGHT (PAGES 12~13) COLOR BURST: OFF / ON...
  • Page 6 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Menu Diagram (continued): MAIN MENU SETTING SETTING OPTION LANGUAGE: ENG / CHN1 / CHN2 / GER / FRA / ITA / SPA / POL / RUS / POR / NED / TUR...

  • Page 7: Lens

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Lens: This function is used to select the camera’s lens operation. 1. Select LENS on the Main Menu screen. 2. Select the desired Lens operation by moving the joystick to the left or right and pressing enter to enter the sub-menu (if applicable).
  • Page 8 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Exposure (continued): SENS-UP: Activates the digital slow shutter for use in darker images. o OFF: Turn SENS-UP off. o AUTO: Turn SENS-UP to automatic mode. Enter menu to adjust settings.  SENS-UP: Higher values increase the brightness of the image but also potentially increase after images.

  • Page 9: Backlight

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Exposure (continued): DEFOG: Adjust the camera’s defog settings for clearer images in environments with fog or mist. o OFF: Turn DEFOG off. o AUTO: Turn DEFOG to automatic mode. Enter menu to adjust settings.
  • Page 10 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Backlight (continued): HSBLC: Select Highlight Suppression Back Light Compensation (HSBLC) to improve the clarity of the picture by blocking a strong backlight. Enter menu to adjust settings. o SELECT: Select the HSBLC area to be modified.

  • Page 11: White Balance

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) White Balance: This function is used to adjust the color temperature and image color of the picture. 1. Select WHITE BAL on the Main Menu screen. 2. Select the desired White Balance operation by moving the joystick to the left or right and pressing enter to enter the sub-menu (if applicable).

  • Page 12: Day & Night

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Day & Night: This function is used to adjust the transition between color and black & white modes automatically based on the current lighting conditions. 1. Select DAY & NIGHT on the Main Menu screen.

  • Page 13: Noise Reduction (Nr)

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Day & Night (continued): COLOR: Select COLOR to force the camera to display in color mode at all times. B/W: Select B/W to force the camera to display in B/W mode at all times.

  • Page 14: Special

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Special: This function accesses the special features of the camera including the camera title, digital effects, motion detection, privacy masks, OSD language, and defective pixel correction (DPC). 1. Select SPECIAL on the Main Menu screen.
  • Page 15 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Special (continued): MOTION: This function is used to detect moving objects on-screen. o OFF: Turn motion detection off. o ON: Turn motion detection on.  SELECT: Select which of the four motion detection zones to modify.
  • Page 16 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Special (continued): PRIVACY: This function is used to distort or block out certain portions of the image for privacy reasons. o OFF: Turn the privacy feature off. o ON: Turn the privacy feature on.
  • Page 17 ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Special (continued): DEFECT: The camera can compensate for defective white or black pixels with defective pixel correction (DPC). o LIVE DPC: The camera will automatically compensate for false white or black pixels.

  • Page 18: Adjust

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Adjust: This function access video output functions such as sharpness, monitor type, and video output. 1. Select ADJUST on the Main Menu screen. 2. Select the desired menu operation by moving the joystick to the left or right and pressing enter to enter the sub-menu (if applicable).

  • Page 19: Exit

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Exit: This function is used to save all OSD changes and exit the menu screen, reset all values to their factory defaults, or exit the menu screen without saving any changes. 1. Select EXIT on the Main Menu screen.

  • Page 20: Troubleshooting

    ENFORCER 4-in-1 HD Cameras (TVI, CVI, AHD, Analog) Troubleshooting:  Check that the camera is powered up.  Check that the power supply’s polarity is correct. The screen is blank.  Check that the monitor is powered up.  Check that the video cable connecting the camera to the monitor is connected properly.
