ENFORCER EV-N1506-NW4WQ Installation Manual

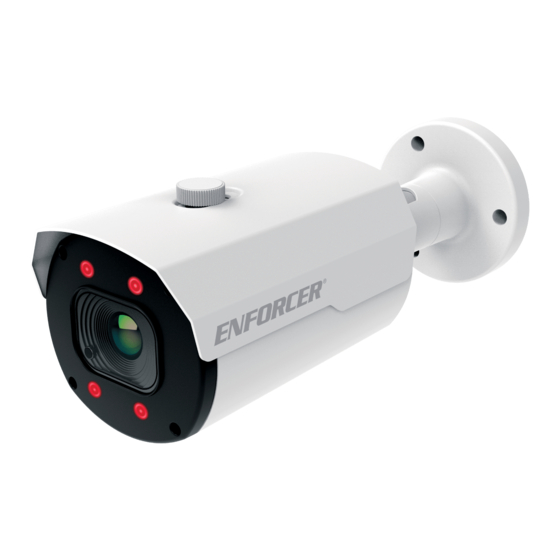

IP 5MP 2.8~12mm Motorized Bullet
Camera with WDR
EV-N1506-NW4WQ
Installation Manual
Features
1
/ " 5MP SmartSens CMOS sensor
•
2.7
• 30FPS@ 5MP (2880x1620)
• 2.8~12mm Motorized lens
• Tri-stream encoding:
H.265, H.264, and MJPEG
• True Wide Dynamic Range (WDR)
• Digital Noise Reduction (3DNR)
• True Day & Night function with ICR module
• ICR Sensitivity adjustment
• Corridor mode
• IP66 Weatherproof
• IR Range 147' (45m)
• Smart IRs adjust IR strength to conditions
• MicroSD slot (512GB max)
• PoE (IEEE802.3af), 12VDC
• ONVIF ® Profile G, S, and T conformant
• Operating Temperature: -40°~131°F
(-40°~55°C)
ONVIF ® is a trademark of ONVIF, Inc
AI Functions
• Human and Vehicle Detection
• Perimeter Intrusion Detection
• Line Crossing Detection
• Stationary Object Detection
• Cross Counting
• Heat Map
• Crowd Density Detection
• Queue Length Detection
• Face Detection
For the full Web Administration manual,
download from the camera's product
page on www.seco-larm.com.
