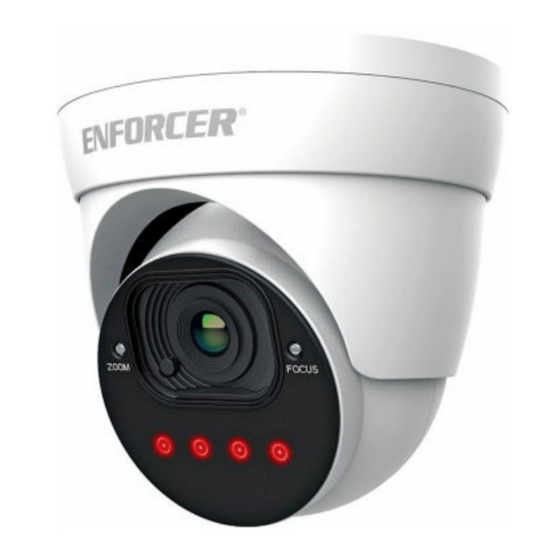

- Page 1 4-in-1 HD Cameras with WDR On-Screen Display Manual EV-Y2501-AMWWQ shown Model Lens Resolution Voltage Style Color EV-Y2501-A2WWQ 2.8mm Turret EV-Y2501-AMWWQ 2.8~12 mm 12VDC White EV-Y1501-A2WWQ 2.8mm Bullet EV-Y1501-AMWWQ 2.8~12 mm...
-
Page 2: Table Of Contents
4-in-1 HD Cameras with WDR Table of Contents Programmable Features ........2 Image Enhance ..........6~7 OSD DIP Switch ..........3 Video Setting ............ 7 Main Menu ............3 Language ............7 Menu Diagram ..........4 WDR ..............8 Exposure ............5 Exit .............. -
Page 3: Osd Dip Switch
4-in-1 HD Cameras with WDR OSD DIP Switch Set the Format via the OSD DIP Switch (located on the camera), move the DIP Switches to the following combinations. The format selected will determine the settings shown on the On-Screen Display Menu. Format Dip Switch 1 DIP Switch 2... -
Page 4: Menu Diagram
4-in-1 HD Cameras with WDR Menu Diagram Main Menu Setting Setting Options Brightness 1~100 (Default: 36) 0~7 (Default: 4) Global — R Gain: 0~100 (Default: 50) B Gain: 0~100 (Default: 50) Mode R Gain: 0~100 (Default: 50) Grayworld B Gain: 0~100 (Default: 50) —... -
Page 5: Exposure
4-in-1 HD Cameras with WDR Exposure This function is used to select the camera’s exposure settings, including brightness, and exposure modes: Global and BLC. 1. Select Auto Exposure "AE" on the Main Menu screen. 2. Select the desired Exposure operation. ... -
Page 6: Day & Night
4-in-1 HD Cameras with WDR Day and Night This function is used to adjust the transition between color and black & white modes automatically based on the current lighting conditions. 1. Select DAY / NIGHT on the Main Menu D A Y N I G H T screen. -
Page 7: Video Setting
4-in-1 HD Cameras with WDR Image Enhance (Continued) SATURATE – This function is used to increase or decrease the amount of color hue within the frame. o AUTO o Manual – Adjust from 0~20 (Default: 10). 3DNR – Select 3D Digital Noise Reduction (3DNR) for general lighting conditions. -
Page 8: Wdr
4-in-1 HD Cameras with WDR WDR provides clear images even under circumstances where backlight illumination can vary. WDR Off WDR On WDR – ON/OFF (Default: ON) Privacy This function is used to create privacy zones on the display. 1. Select FUNC on the Main Menu screen. 2. -
Page 9: Exit
4-in-1 HD Cameras with WDR Exit RESET – Restore all OSD settings to factory defaults and exit the OSD menu. SAVE & END – Save all OSD changes and exit the OSD menu. EXIT– Exit the OSD menu without saving any changes. FCC COMPLIANCE STATEMENT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
