Configuring the If you have chosen a mode suited to the high-speed I/O needs of your application,
HSIO Mode we're ready to proceed to configure the PLC to operate accordingly. In the block

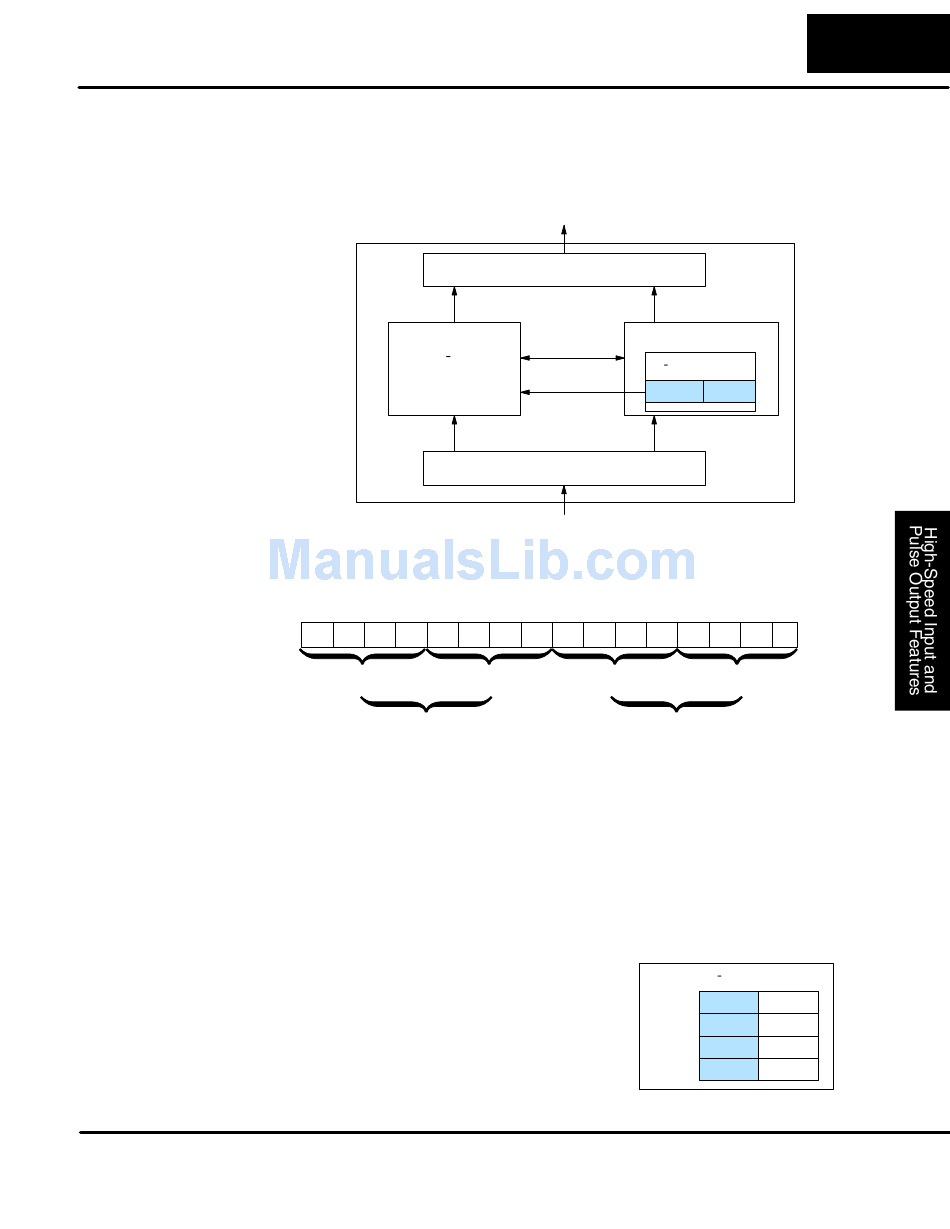

diagram below, notice the V-memory detail in the expanded CPU block. V-memory
location V7633 determines the functional mode of the high-speed I/O circuit. This is
the most important V-memory configuration value for HSIO functions!
The contents of V7633 is a 16-bit word, to be entered in binary–coded decimal. The
figure below defines what each 4-bit BCD digit of the word represents.
Bits 0 – 7 define the mode number 00, 10.. 60 previously referenced in this chapter.
The example data "2050" shown selects Mode 50 – Pulse Catch (BCD = 50). The
DL05 PLC ignores bits 8 - 15 in V7633.
Configuring In addition to configuring V7633 for the
Inputs X0 – X2 HSIO mode, you'll need to program the
next three locations in certain modes
according to the desired function of input
points X0 – X2. Other memory locations
may require configuring, depending on the
HSIO mode (see the corresponding
section for particular HSIO modes).
DL05
PLC
High Speed
I/O Circuit
15 14 13 12 11
Bits
0 0 0 0 0
0
Bits 8 - 15 are not used
in V7633.
High-Speed Input and Pulse Output Features
Output Circuit
Y0, Y1
I/O data
Mode Select
X0 - X2
Input Circuit
Memory Location V7633
10
9 8 7 6 5
0 0 0 0 1 0
0 5
HSIO Mode Setup (BCD)
00 = Not Used
10 = High-Speed Counting Mode
20 = Quadrature Counting Mode
30 = Pulse Output Train
40 = High-Speed Interrupts
50 = Pulse Catching
60 = Discrete Filtered Inputs (default)
Y2 - Y5
CPU
V memory
V7633 xxxx
X3- X7
4 3 2 1 0
1 0 0 0 0
0
V memory
Mode V7633 xxxx
X0 V7634 xxxx
X1 V7635 xxxx
X2 V7636 xxxx
