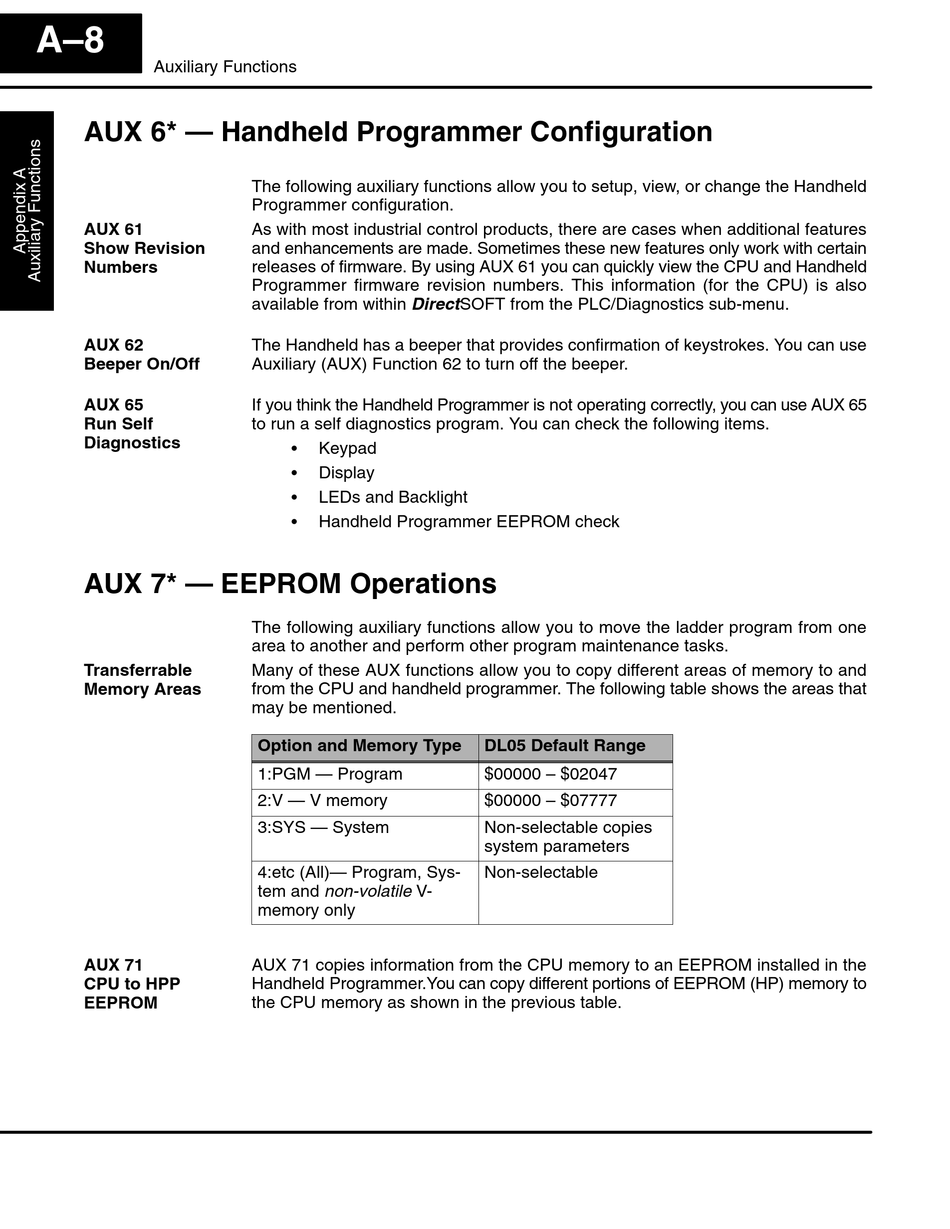

A–8
Auxiliary Functions
AUX 6* — Handheld Programmer Configuration
AUX 61
Show Revision
Numbers
AUX 62
Beeper On/Off
AUX 65
Run Self
Diagnostics
AUX 7* — EEPROM Operations
Transferrable
Memory Areas
AUX 71
CPU to HPP
EEPROM
The following auxiliary functions allow you to setup, view, or change the Handheld
Programmer configuration.
As with most industrial control products, there are cases when additional features
and enhancements are made. Sometimes these new features only work with certain
releases of firmware. By using AUX 61 you can quickly view the CPU and Handheld
Programmer firmware revision numbers. This information (for the CPU) is also
available from within DirectSOFT from the PLC/Diagnostics sub-menu.
The Handheld has a beeper that provides confirmation of keystrokes. You can use
Auxiliary (AUX) Function 62 to turn off the beeper.
If you think the Handheld Programmer is not operating correctly, you can use AUX 65
to run a self diagnostics program. You can check the following items.
S
Keypad
S
Display
S
LEDs and Backlight
S
Handheld Programmer EEPROM check
The following auxiliary functions allow you to move the ladder program from one
area to another and perform other program maintenance tasks.
Many of these AUX functions allow you to copy different areas of memory to and
from the CPU and handheld programmer. The following table shows the areas that
may be mentioned.
Option and Memory Type
1:PGM — Program
2:V — V memory
3:SYS — System
4:etc (All)— Program, Sys-
tem and non-volatile V-
memory only
AUX 71 copies information from the CPU memory to an EEPROM installed in the
Handheld Programmer.You can copy different portions of EEPROM (HP) memory to
the CPU memory as shown in the previous table.
DL05 Default Range
$00000 – $02047
$00000 – $07777
Non-selectable copies
system parameters
Non-selectable
