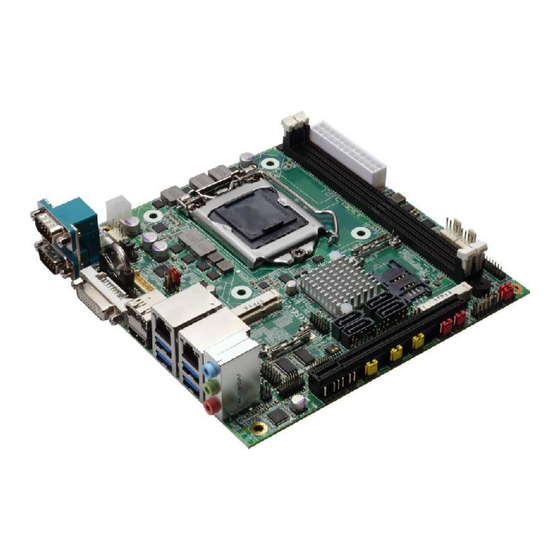

Commell LV-67S User Manual

Mini-itx desktop motherboard
Hide thumbs Also See for LV-67S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
LV-67S
Mini-ITX Desktop Motherboard
User's Manual
Edition 1.1
2016/02/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV-67S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commell LV-67S

Summary of Contents for Commell LV-67S

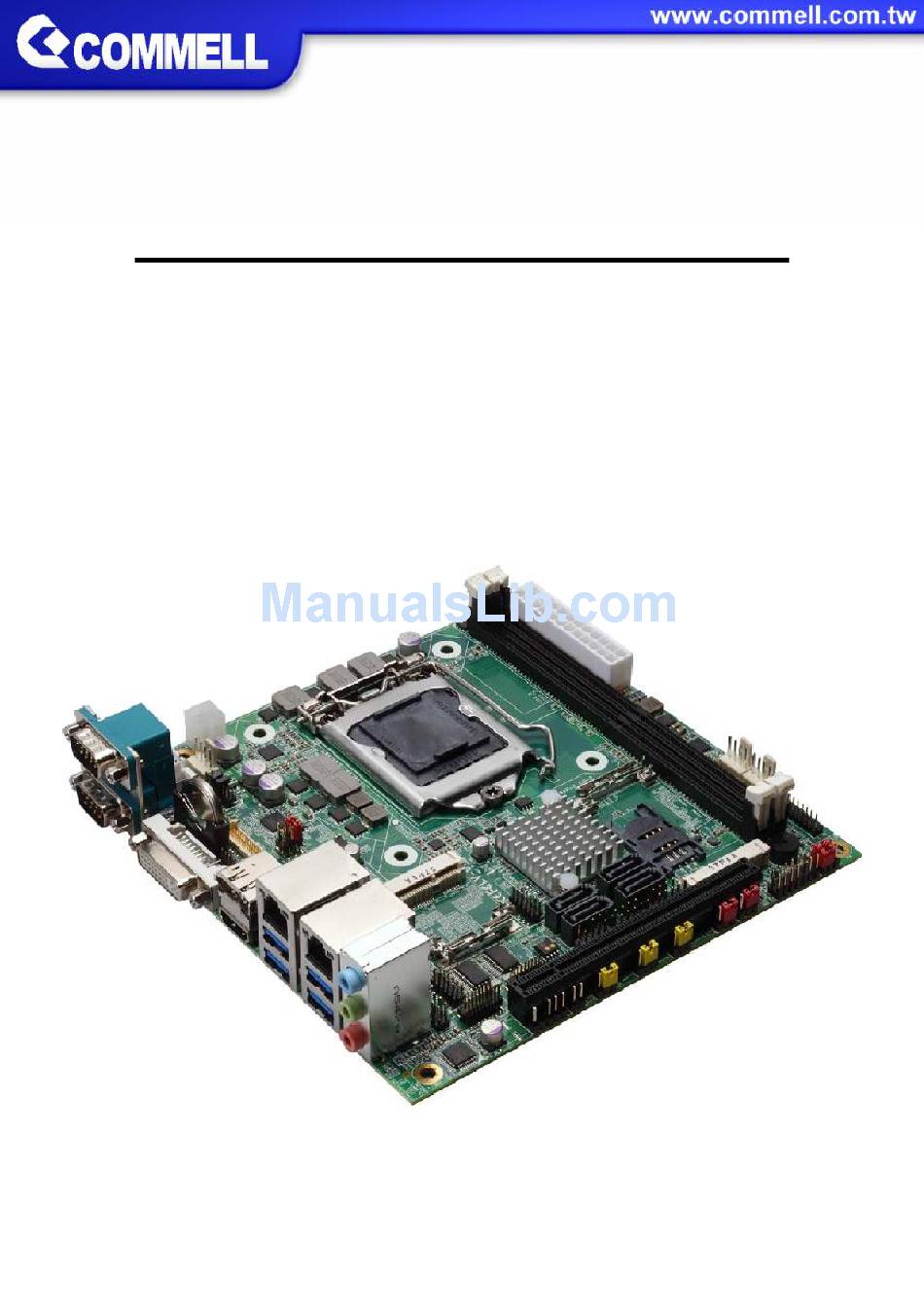

  • Page 1 LV-67S Mini-ITX Desktop Motherboard User’s Manual Edition 1.1 2016/02/18...
  • Page 2 LV-67S User’s Manual Copyright Copyright 2015, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    LV-67S User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LV-67S Mini-ITX Motherboard 1 x VGA Cable 1 xUSB2.0 Cable (OALVGAN-S) / (1040568) (OALUSBA-3) / (1040172) 2 x SATA Cable (OALSATA3-L) / (1040529)

  • Page 4: Table Of Contents

    LV-67S User’s Manual Index Chapter 1 <Introduction>..................5 1.1 <Product Overview>..................5 1.2 <Product Specification>..................6 1.3 <Mechanical Drawing>..................7 1.4 <Block Diagram> ....................8 Chapter 2 <Hardware setup> ................... 9 2.1 <Connector Location and Reference>............. 9 2.1.1 <Internal connectors list>..............10 2.1.2 <External connectors list>...
  • Page 5 LV-67S User’s Manual Appendix C <Programmable Watch Dog Timer>............. 30 Contact information ....................32...

  • Page 6: Chapter 1

    All in One multimedia solution LV-67S provides high performance onboard graphics, 18/24-bit single/dual channel LVDS interface, DisplayPort, DVI-I, CRT and High Definition Audio, to meet the requirement of the multimedia application.

  • Page 7: Product Specification

    LV-67S User’s Manual 1.2 <Product Specification> System Intel® Skylake Core™ i7, i5, i3 S-series and Xeon® E3-1200 v5 Product Processor Family Processor, FCLGA1151 package Chipset Intel® C236 PCH-H 2 x DDR4 DIMM 1866/2133 MHz up to 32GB, Support Non-ECC, Memory...

  • Page 8: Mechanical Drawing

    LV-67S User’s Manual 1.3 <Mechanical Drawing>...

  • Page 9: Block Diagram

    LV-67S User’s Manual 1.4 <Block Diagram> 1 x HDMI Channel A DDR4 DIMM 1.2V 1 x DisplayPort Channel B 1 x DVI-I DDR4 DIMM 1.2V Gen Processor PTN3355 PCI Express X16 1 x CRT PTN3460 DMI GEN3 1 x LVDS...

  • Page 10: Chapter 2

    LV-67S User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_LVDS CN_CRT CN_AUDIO CN _INV CN_DIO CPUFAN CN_COM5/6 CN_12V MINI_CARD1 CN_COM3/4 PCI_E16X CN_LPC SATA3-3 CN_PS2 SATA3-4 CN_USB2-1 SATA3-2 SATA3-1 CN_USB2-2 SIMM MINI_CARD2 JFRNT DDR4_A DDR4_B CN_USB 3-1 SYSFAN...

  • Page 11: Internal Connectors List

    LV-67S User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 288-pin DDR4 DIMM slot SATA3-1/2/3/4 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV...

  • Page 12: Cpu And Memory Setup

    LV-67S User’s Manual 2.2 <CPU and Memory Setup> 2.2.1 <CPU installation> LV-67S has a LGA1151 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67S need RMA please Keep CPU socket cover on the CPU Socket.

  • Page 13: Memory Setup

    LV-67S User’s Manual 2.2.2 <Memory Setup> LV-67S has two 288-pin DDR4 DIMM support up to 32GB of memory capacity and 1.2 Voltage. The memory frequency supports 1866/2133 MHz. Only Non-ECC memory is supported. Please check the pin number to match the socket side well before installing memory module.

  • Page 14: Jumper Location And Reference

    LV-67S User’s Manual 2.3 <Jumper Location and Reference> JVLCD JCSEL2 JCSEL1 CN_SMBUS JAUXTIN JMSATA2 JMSATA1 JVSATA3-2 JRTC JVUSB 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA1 MiniCard 1 MSATA Setting JMSATA2...

  • Page 15: Clear Cmos And Power On Type Selection

    LV-67S User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

  • Page 16: Ethernet Interface

    LV-67S User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I219-LM I210-AT 2.4.3 <Display interface>...
  • Page 17 LV-67S User’s Manual CN_LVDS JVLCD CN_CRT CN_INV CN_CRT: CRT 16-pin connector Signal Signal -CRTATCH IOGND1 IOGND1 IOGND1 -CRTATCH 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low)

  • Page 18: Serial Port Interface

    LV-67S User’s Manual A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+ LVDS_DDCSCL LVDS_DDCSDA Note: Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default)
  • Page 19 LV-67S User’s Manual CN_COM3/4 JCSEL2 CN_COM5/6 JCSEL1 COM1: RS232 DB9 connector Signal Signal Set by JP1 COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Use JCSEL1 and JCSEL2 to select communication mode...
  • Page 20 LV-67S User’s Manual COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 COM3 Set by JP3 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 COM4 Set by JP4 COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm)

  • Page 21: Usb Interface

    LV-67S User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 RS485 RS422 2.4.5 <USB interface> USB3.0 USB3.0 CN_USB2-1 CN_USB2-2 JVUSB CN_USB3-1 -20-...
  • Page 22 LV-67S User’s Manual CN_USB 2-1/2-2: USB2.0 10-pin header Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ CN_USB3-1 USB3.0 20-pin header Description Description (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+...

  • Page 23: Audio Interface

    LV-67S User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in Line out Mic in CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -22-...

  • Page 24: Expansion Slot

    LV-67S User’s Manual 2.4.7 <Expansion slot> MINI_CARD1 JMSATA2 JMSATA1 SIMM PCI_E16X MINI_CARD2 MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD1 support mSATA by JMSATA1 MINI_CARD2 support mSATA by JMSATA2, and connect SIM card with 3G module.

  • Page 25: Front Panel Switch And Indicator

    LV-67S User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -24-...

  • Page 26: Gpio And Other Interface

    LV-67S User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO CPUFAN CN_SMBUS CN_LPC SYSFAN AUXFAN When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level.
  • Page 27 LV-67S User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_SMBUS: SMBus 5-pin connector Signal SMBDAT SMBCLK...

  • Page 28: Power Supply

    LV-67S User’s Manual 2.5 <Power supply> 2.5.1 <Power input> CN_12V CN_12V: ATX12V 4-pin connector Signal Signal ATX: main power 24-pin connector (As input) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V -27-...

  • Page 29: Appendix A

    LV-67S User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the...
  • Page 30 LV-67S User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
  • Page 31 LV-67S User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection.
  • Page 32 LV-67S User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F5 -o 4F 00 ;set “00” is second mode, set “04” is minute mode -o 4E F6 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute...
  • Page 33 Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -32-...
