Hardware and Parts List
1. Frame Parts
x 6 pcs (4 top/bottom horizontal frame pcs + 2 side vertical frame pcs)
2. Tension Rods
3. Screen Material
4. Center joints
5. Elbow Joints
6. Wall brackets
7. M5x50 wood screws
8. Hollow wall anchor
9. M5x15 screws x 16 pcs
10. Center Support Bar
11. Support joiner
12. Fix Plates
Note: Please make sure all parts are included in your package before proceeding to assemble your Elite
Screens fixed frame projection screen.

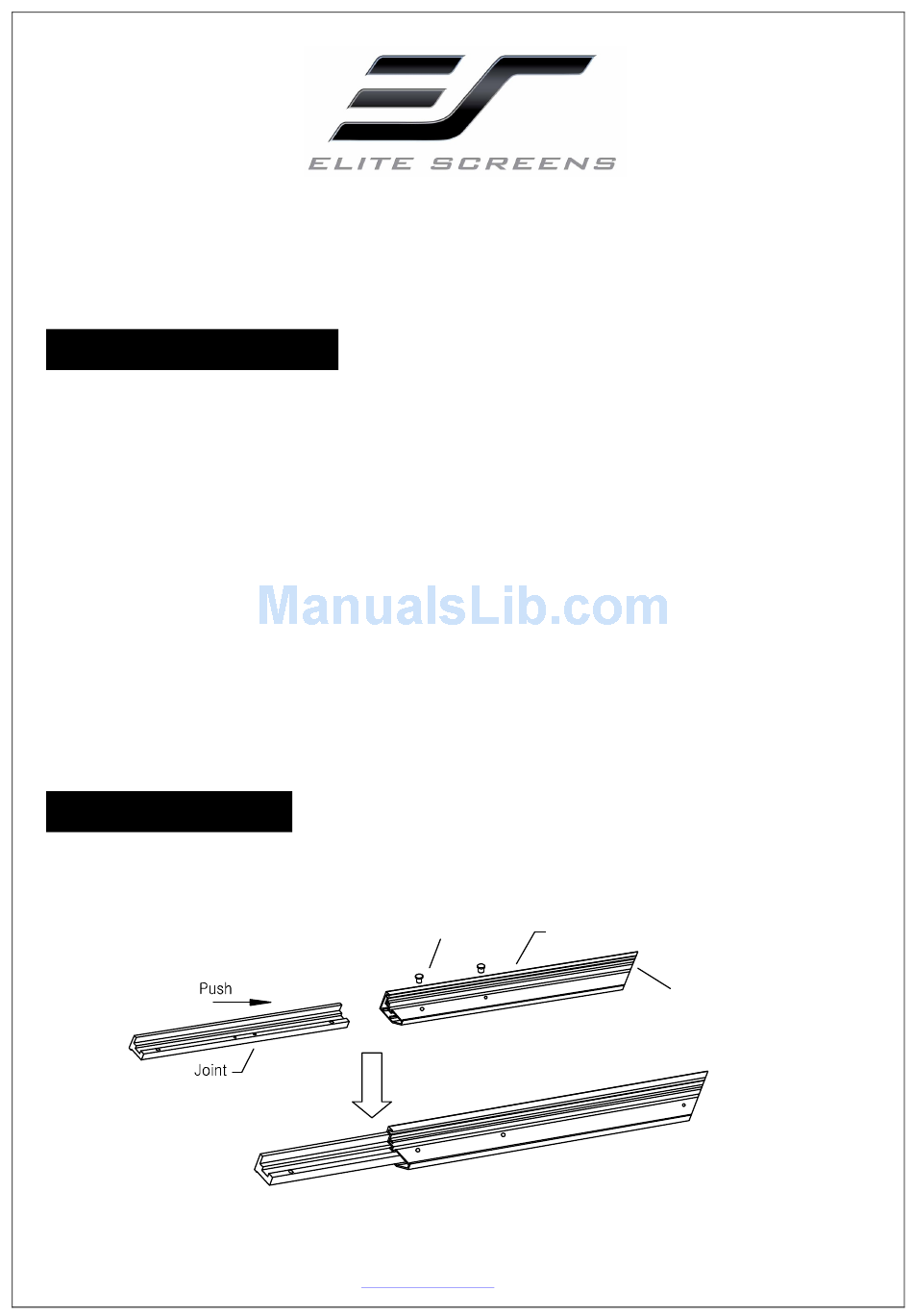

FRAME ASSEMBLY
1. Insert the center joint connector into to one of the 1/2 horizontal frames and fasten it with two M5x15 screws.
Rev.041014-JA
ezFrame Plus Series
Fixed
F rame
P rojection
S creen
User's
G uide
x 6 pcs (4 top/bottom rods + 2 side rods)
x 1 pc
x 2 pcs
x 4 pcs
x 2 – 3 pcs (depending on model/size)
x 6 pcs
x 6 pcs
x 1 – 2 pcs (depending on model/size)
x 2 – 4 pcs (depending on model/size)
x 60 – 180 pcs (depending on model/size)
M5×15 screws
www.elitescreens.com
½ Horizontal Frame
bevel connection
1
Advertisement
Table of Contents
Related Manuals for Elite Screens ezFrame Plus Series
Summary of Contents for Elite Screens ezFrame Plus Series
- Page 1 Plus Series Fixed F rame P rojection S creen User’s G uide Hardware and Parts List 1. Frame Parts x 6 pcs (4 top/bottom horizontal frame pcs + 2 side vertical frame pcs) 2.
- Page 2 2. Insert the other 1/2 horizontal frame piece to the center joint connector and fasten it with two M5x15 screws. Repeat steps 1 and 2 for assembling the second horizontal frame. ½ Long Frame Push bevel connection Horizontal Long Frame Note: a.
- Page 3 Join a ll f our f rame p arts t ogether f ollowing t he s teps s hown b elow. ( Fig.2) Note: W hen a ssembled, p lease p ush s imultaneously t he t wo e nds o f t he l ong f rames. Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles...
- Page 4 2. Make sure that the material and frame are both lying face down on a clean, dry, and non-abrasive surface. 3. Center the material inside the frame. Please note the material will be noticeably smaller than the frame, as the material must be stretched to create a sufficient amount of tension for perfect material flatness.
- Page 5 (5) Put the next set of fix plates ② in the middle between fix plate ① and the corner. (Fig.9) (Fig.9) (6) Then put the next set of fix plates ③ between ①and ② and the corner. (Fig.10) (Fig.10) (7) Lastly, put the next set of fix plates (4) as shown in Fig.11 (Fig.11)
- Page 6 Center Support Bard Insert the support joiner into each end of the center support bar to complete assembly. support joiner Center support bar Insert the Center Support Bar into the upper top groove on the back of the frame (not the one where the fix plate inserts) with the bottom end near the approximate center point as shown in Fig.
- Page 7 (Fig.20) (Fig. 1 9) CAUTION Please follow these instructions carefully to ensure proper maintenance and safety of your Fixed Frame Screen 1. W hen h anging t he s creen u p, p lease m ake s ure t hat n o o ther o bjects s uch a s p ower s witches, o utlets, f urniture, ladders, ...
