Elite Screens ezFrame Plus Series User Manual

Large size fixed frame projection screen
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

PARTS
LIST_
1.
Frame Parts x's 6 pcs (4 top/bottom frame pcs. + 2 side frame pcs)
2.
Tension Rods x's 6 pcs (4 top/bottomrods + 2 side rods)
3.
Screen Materialx's 1 pc
4.
Center joints x's 2 pcs
5.
Elbow Jointsx's4pcs
6.
Wall bracketsx's2-4pcs
7.
Screws x's 16 pcs
8.
User Guide x's pc
9.
Center Support Bar x's 1 – 2 pcs (depending on model/size)
10. Support joinerx's 2 – 4 pcs (depending on model/size)
11. Fix Plates x's 30 – 90 pcs (depending on model/size)
Note:   P lease   m ake   s ure   a ll   p arts   a re   i ncluded   i n   y our   p ackage   b efore   p roceeding   t o   a ssemble   y our
Elite   S creens   f ixed   f rame   p rojection   s creen.

ASSEMBLING THE FRAME

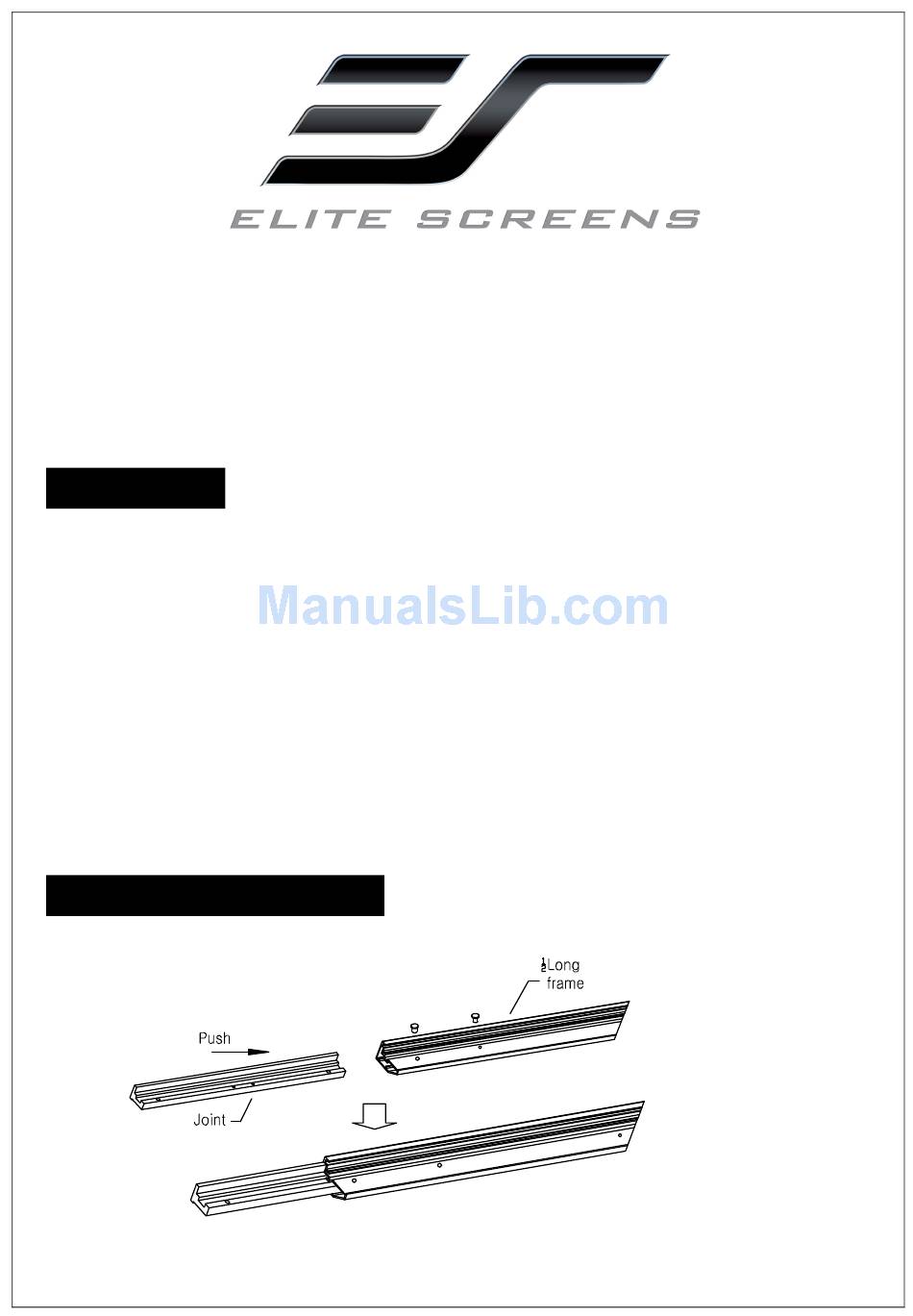

1. Insert the center joint connector to the horizontal frame pieceand then fasten it with 2screws.
Large size Fixed Frame Projection Screen
ezFrame Plus Series
User's Guide
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ezFrame Plus Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens ezFrame Plus Series

Summary of Contents for Elite Screens ezFrame Plus Series

  • Page 1 Large size Fixed Frame Projection Screen ezFrame Plus Series User’s Guide PARTS LIST_ Frame Parts x’s 6 pcs (4 top/bottom frame pcs. + 2 side frame pcs) Tension Rods x’s 6 pcs (4 top/bottomrods + 2 side rods) Screen Materialx’s 1 pc Center joints x’s 2 pcs...
  • Page 2 2. Insertthe other horizontal frame piece to thecenter joint connectorand then fasten it with 2 screws. Push 1/2Long frame Make sure the frame piece lines up correctly beforeyou tighten the screws completely. 3. Insert both elbowjoint connectors into the long horizontal frame (fig.1). Long frame Push Push...
  • Page 3 Join all four frame parts together following the steps showed below(fig.2) Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles Push Push ( fig.2) After making sure that all four corners join at right angles to form a perfect rectangle,fasten the four angles together by using the (x8) joint screws included(fig.3).
  • Page 4 ATTACHING THE SCREEN MATERIAL TO THE FRAME_ 1. Lay out the screen and tension rods on a clean and dry surface. Insert the tension rods through the sleeves according to their corresponding lengths on each edge of the screen as seen below(fig.4). Tension Rod (Horizontal) x 4 Tension Rod (Vertical) x 2 Screen...
  • Page 5 ATTACHING THE FIX PLATES_ Make sure that the material and frame are both lying face down on a clean, dry and non-abrasive surface. Center the material inside the frame. Please note the material will be noticeably smaller than the frame. Stretching the material is required to create a sufficient amount of tension for perfect material flatness.
  • Page 6 7. In order to avoid damaging the screen, do not touch it directly with your fingers, tools or any other sharp or abrasive objects. 8. Spare parts should be placed out of reach of small children in accordance with household safety guidelines. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev.040114-JA...
