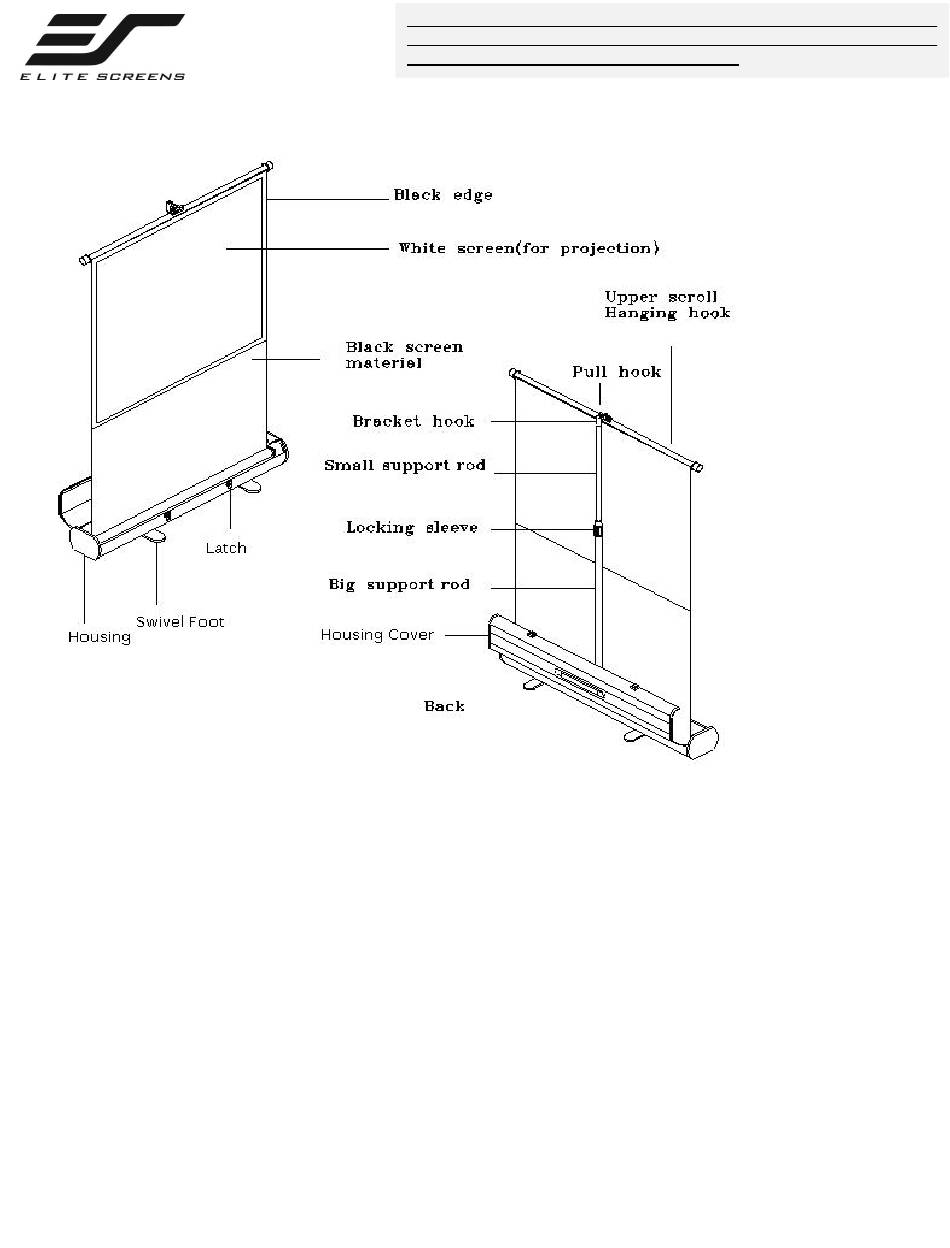

Front

Step 1: Position the swivel foot

Rotate the swivel foot one half turn so that they point outwards as pictured above. This is so that the screen can be stable once the
screen has been set up.

Step 2: Open the box cover

Unlatch the housing's cover. Secure the box with one hand while removing the telescopic support rod with your other hand.

Step 3: Installing the support rod

First, make sure that the hanging hook is pointing toward the front facing the same direction as the screen, then insert the square end
of the telescopic support rod into the support plate.

Step 4: Pull up the screen

Hold the pull hook with one hand and pull the screen up gently and hang it on the bracket hook. Then, be sure to tighten the locking
sleeves once you've reached the desired height.
This is only a quick set up guide. Please visit our website for a complete
USER GUIDE on your ezCinema Series. For More Information or tech
support, please visit www.elitescreens.com
ezCinema Series – Quick Set up Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ezCinema Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Screens ezCinema Series

  • Page 1 This is only a quick set up guide. Please visit our website for a complete USER GUIDE on your ezCinema Series. For More Information or tech support, please visit www.elitescreens.com ezCinema Series – Quick Set up Guide Front Step 1: Position the swivel foot Rotate the swivel foot one half turn so that they point outwards as pictured above.
  • Page 2 Note: When attaching the screen to the pull hook, you may notice a slight gap between the top bar and screen material. This is completely normal and it is used to maintain a leveled flat surface when projecting an image. Step 5: Vertical Adjustment ( In case you need to readjust the height of the screen) Loosen the locking sleeve with one hand and adjust the small support rod with the opposite hand slowly raising or lowering the...
