ASSEMBLY INSTRUCTIONS

© Copyright 2010 Power Plate International

Advertisement

loading
Need help?

Need help?

Do you have a question about the pro6 and is the answer not in the manual?

Questions and answers

Related Manuals for Power Plate pro6

Summary of Contents for Power Plate pro6

  • Page 1: Assembly Instructions

    ASSEMBLY INSTRUCTIONS © Copyright 2010 Power Plate International...
  • Page 2 Assembly Instructions © Copyright 2010 Power Plate International...
  • Page 3 1 Column Assembly • 1 Power Cord • User Manual • Assembly Manual • Poster • Dust Cover • Spare Fuses proMOTION Box: 2 proMOTION Devices + • Platform Mounting Brackets, Hex Key & Hardware © Copyright 2010 Power Plate International...
  • Page 4 Power Plate Assembly – pro6 Platform Assembly Column Assembly proMOTION x (2) © Copyright 2010 Power Plate International...
  • Page 5 Bellow, these bolts will “guide” the platform into place when mounting the Platform to the Column, and line up the holes to attach the Securing bolts. Securing Bolts Temporary Air Bellow (4) Guide Bolts © Copyright 2010 Power Plate International...
  • Page 6 Column assembly to the floor. This clearance allows space for the Securing Bolts to be set in place after the Platform is mounted on top. 7- 8 Inch Clearance © Copyright 2010 Power Plate International...
  • Page 7 Column assembly. Please note, if not installing on carpeted or a protected surface, please use the Black Foam Platform Mat to protect the Platform from getting scratched from the floor. Black Foam © Copyright 2010 Power Plate International...
  • Page 8 Holes on the Iron Base – set slightly aside and this stage. To attach, simply push rest on iron base surface for Motor Cable Air Hose into Valve Connector, hose And Air Hose attachments. will lock into place. © Copyright 2010 Power Plate International...
  • Page 9 Motor Cable MUST BE attached before Platform is lowered completely onto the iron base. Attach Motor Cable Column Assembly © Copyright 2010 Power Plate International...
  • Page 10 To attach Air Hoses, simply push into connector fully. To remove the Air Hoses, simply push in the “O” connector while at the same time gently pulling the Air Hose out. © Copyright 2010 Power Plate International...
  • Page 11 Bolt holes on iron base (4) Insert Securing bolts (4) Once the Platform has been lowered, Remove Temporary remove the Temporary Guide bolts Guide bolts (4) and Insert the Securing bolts. © Copyright 2010 Power Plate International...
  • Page 12 Column assembly. See photo of assembled pro6. The pro6 Power Plate includes 2 proMOTION devices. After Column & Platform are assembled and secured together, the proMOTION devices must be mounted to each side of the Platform.
  • Page 13 Power Plate Assembly – pro6 Secure the proMOTION Top and Bottom proMOTION Mounting Instructions Brackets to each side of the Platform assembly. Top Bracket Bolt holes on Platform for proMOTION bracket mounting Bottom Brackets © Copyright 2010 Power Plate International...
  • Page 14 Power Plate Assembly – pro6 Place the proMOTION housing securely onto the mounting brackets (left and right.) Please note the cable position in regards to the Platform © Copyright 2010 Power Plate International...
  • Page 15 25Nm. (do this for Right and Left proMOTION.) Once proMOTION devices are bolted on both Right and Left sides of the pro6 platform, test the devices by pulling out the cables at least 2 times each. Please see step by step Mounting Diagram for proMOTION on the next page.
  • Page 16 Tighten two M8 screws (E) for the lower brackets at 25Nm. Take out the two M8 screws (G) on the left and right side of the promotion, apply Loctite 243 and tighten them at 25Nm. © Copyright 2010 Power Plate International...

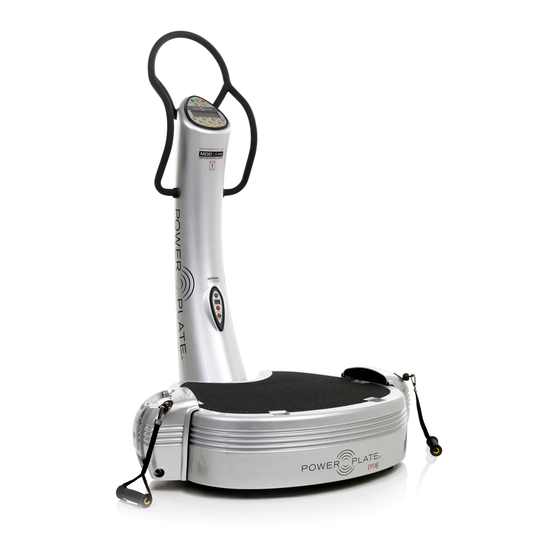

  • Page 17 Power Plate Assembly – pro6 Fully assembled pro6 Power Plate © Copyright 2010 Power Plate International...
  • Page 18 Power Plate Assembly – pro6 Testing - Start A Program After the pro6 Power Plate is assembled, please test the machine by running through the various programs for no less than 2 minutes. To Start a Program: 1.Push Start 2.30 HZ 3.60 Seconds...

  • Page 19: Contact And Support

    Select your country for local contact details. Warranty / Product Registration: To register your Power Plate® machine please visit us online at www.powerplate.com. Copies of this manual and any other paperwork may be obtained by contacting Power Plate through the “Contact Us”...
  • Page 20 © Copyright 2010 Power Plate International...
