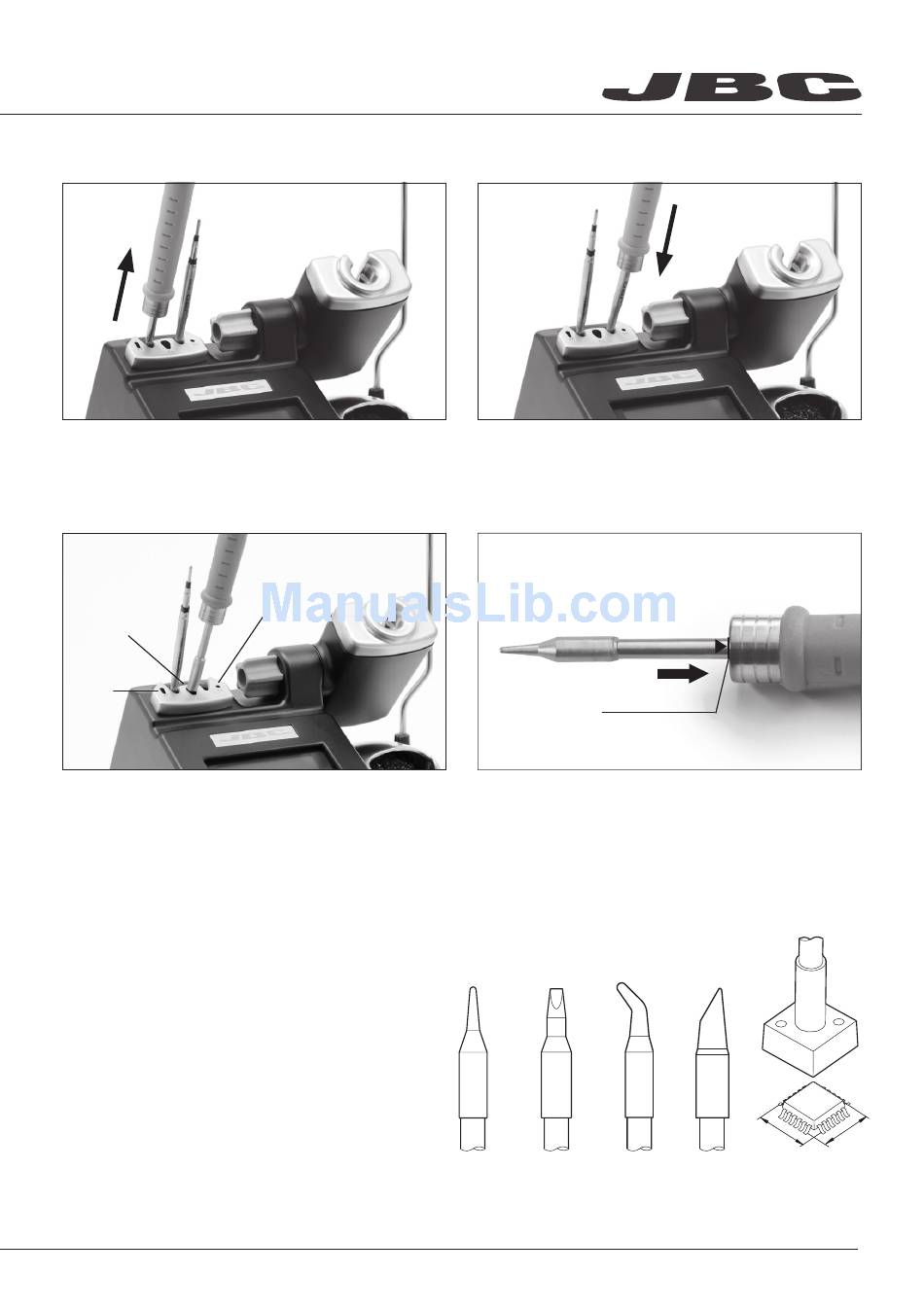

QUICK TIP CHANGER
Place the handpiece in the extractor and
remove the cartridge.
C
B
Press the cartridge into the opening A, B or C:
A. For straight C210 cartridges.
B. For curved C210 cartridges.
C. For C245 cartridges.
CARTRIDGE RANGE
C245 cartridge range is the widest one of JBC
with many shapes, sizes and special models.
They are appropriate for general soldering
purposes and they are perfect for both
SMD components or for applications
with high power requirements such
as ground plane soldering.
Please visit our website to see the full range
www.jbctools.com
A
Place the handpiece on top of the new
cartridge, press it slightly down and remove
the handpiece from the extractor.
Alignment
Important
It is essential to insert the cartridge till the
end for a good connection. Use the mark as
reference.
ø 1
ø 1,5
Round Chisel Round
bent
ø 3,5
B
A
A
Bevel Special
Cartridges
