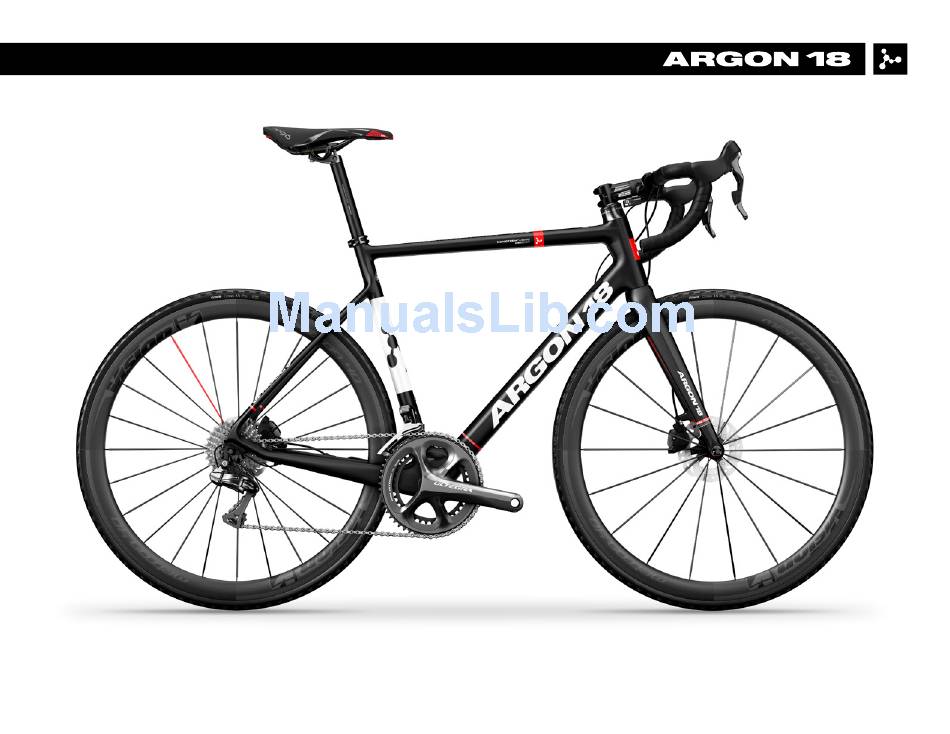

- Page 1 KRYPTON X ROAD : ASSEMBLY GUIDE Revision 3.0 - 06-01-2016...
-
Page 2: Table Of Contents
6. Derailleur hanger adjustment......15-19 For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High end components, particularly carbon parts, need extra care when assembled. -
Page 3: Assembly Overview
KRYPTON X ROAD : Assembly overview 1. Frame inspection 2. Headset installation 3. Cable housing installation IMPORTANT NOTICE: It is easier to install the cables and cable housings before the crank set. 4. Electronic drive-train cable 5. Seatpost adjustment 6. Derailleur hanger adjustment... -
Page 4: Frame Inspection
KRYPTON X ROAD : 1. Frame inspection When assembling a new frame, be sure to check if the following parts are assembled correctly. Parts installed on the frame Description Screw Tork Detail type Seatpost, Ø 27.2mm Seatpost Carbon paste Front derailleur hanger... -
Page 5: Headset Installation
KRYPTON X ROAD : 2. Headset installation Install the 3D headset (6) according to the pressfit assembly guide. You can choose from 3 different heights : 25mm, 15mm or 0mm. - Page 6 KRYPTON X ROAD : 3. Cable housing installation : barrel adjuster Install the front and rear derailleur cable starting at the top of the down tube. : plastic cap For the derailleur and hydraulic housing, measure a sufficient length B+A+B...
- Page 7 KRYPTON X ROAD : 3. Cable housing installation Hydraulic brakes housing Font section: Measure the necessary housing to ensure proper rotation of the handlebar. Insert the housing through the fork starting at the caliper. Rear section: Remove both brake grommets (4j - front & rear). Run the hydraulic housing from the back of the...
- Page 8 KRYPTON X ROAD : 3. Cable housing installation Front and rear derailleur: Pass the two cables inside the frame starting the top tube until they come out under the bottom bracket. Pass both cables into the cable guide (4d). Make sure the 5mm screw is set to 1.5 Nm.
-
Page 9: Electronic Drive-Train Specification
KRYPTON X ROAD : 4. Electronic drive-train specification The Di2 cable routing can be achieved easily using this simple trick: use a brake cable and a metal cable end to fix the Di2 cable. For more information on Shimano Di2 electronic system installation, go to : http://si.shimano.com. - Page 10 KRYPTON X ROAD : 4. Electronic drive-train specification Use the proper grommet on the downtube to fix the cable correctly, depending if you use mechanical (4h) or electronic (5b-5c) drive-train.
- Page 11 KRYPTON X ROAD : 4. Electronic drive-train specification Use the proper grommet / cable stopper for the rear derailleur (depending if you use mechanical or electronic drive-train). In a Di2 configuration, remove the cable stopper (4g) and use the Di2 grommet (5a) instead, but leave the 2 screws to...
- Page 12 KRYPTON X ROAD : 4. Electronic drive-train specification In a mechanical configuration, use the provided cable guide pipe (4f) for the front derailleur. For an electronic drive-train configuration, remove the cable guide pipe and use the proper grommet (5a) to fix...
-
Page 13: Electronic Drive-Train Specification
KRYPTON X ROAD : 4. Electronic drive-train specification The Di2 battery is hidden in the seatpost, use the 2 battery holders (8) to fix the battery correctly. Apply a slight amount of grease on both parts. GREASE... -
Page 14: Saddle Adjustment
KRYPTON X ROAD : 5. Saddle adjustment 9.1 Install the saddle on the rocker (3f) and tighten the rail clamp (3g) using the screw (3d) 9.2 Adjust the angle, the offset of the saddle and tighten the bolt (3b). GREASE 9.3 The rocker and the rail clamp (3f-... -
Page 15: Saddle Adjustment
KRYPTON X ROAD : 5. Saddle adjustment Seat clamp offset (5mm) by flipping the rail clamp (3g) and rocker (3f). -
Page 16: Derailleur Hanger Adjustment
KRYPTON X ROAD : 6. Derailleur hanger adjustment The front derailleur hanger can be adjusted according to the front derailleur angle to obtain an equal curve between the derailleur and the big chain ring. Once at the right angle, LOCTITE use blue 242 Loctite and screw in at 6Nm. - Page 17 KRYPTON X ROAD : Parts Images are for reference only. Proportions are not accurate.
- Page 18 KRYPTON X ROAD : Parts Name A18 SKU# Frameset Parts Krypton frame Krypton fork FK.XROAD.213C Seat post with the following parts assembled Krypton seat post (ASP-1600) SP.XROAD.212B Hex cap screw (M6*28mm) Cylinder nuts SP special bolt (M8*38mm) Convex M6 washer...
- Page 19 KRYPTON X ROAD : Parts Name A18 SKU# Parts installed on the frame Rear derailleur hanger with screws M4x8mmF - Model C 37830 Front derailleur hanger with screws M5x16mmB & M5x16mmF - Model D 36197 Seat clamp with screw M5x20mmS and washer...
