NS7 System With a Fault-Tolerant Data Center

In this supported configuration, the NS7 system is installed in a Tier-IV data center. The data
center tier classification is defined by the Uptime Institute
Infrastructure White Paper.
IMPORTANT:
Figure 20 shows an example of a NS7 system in a fault-tolerant data center which has two
simultaneously-active power distribution paths with multiple backup UPS and engine-generator
systems.

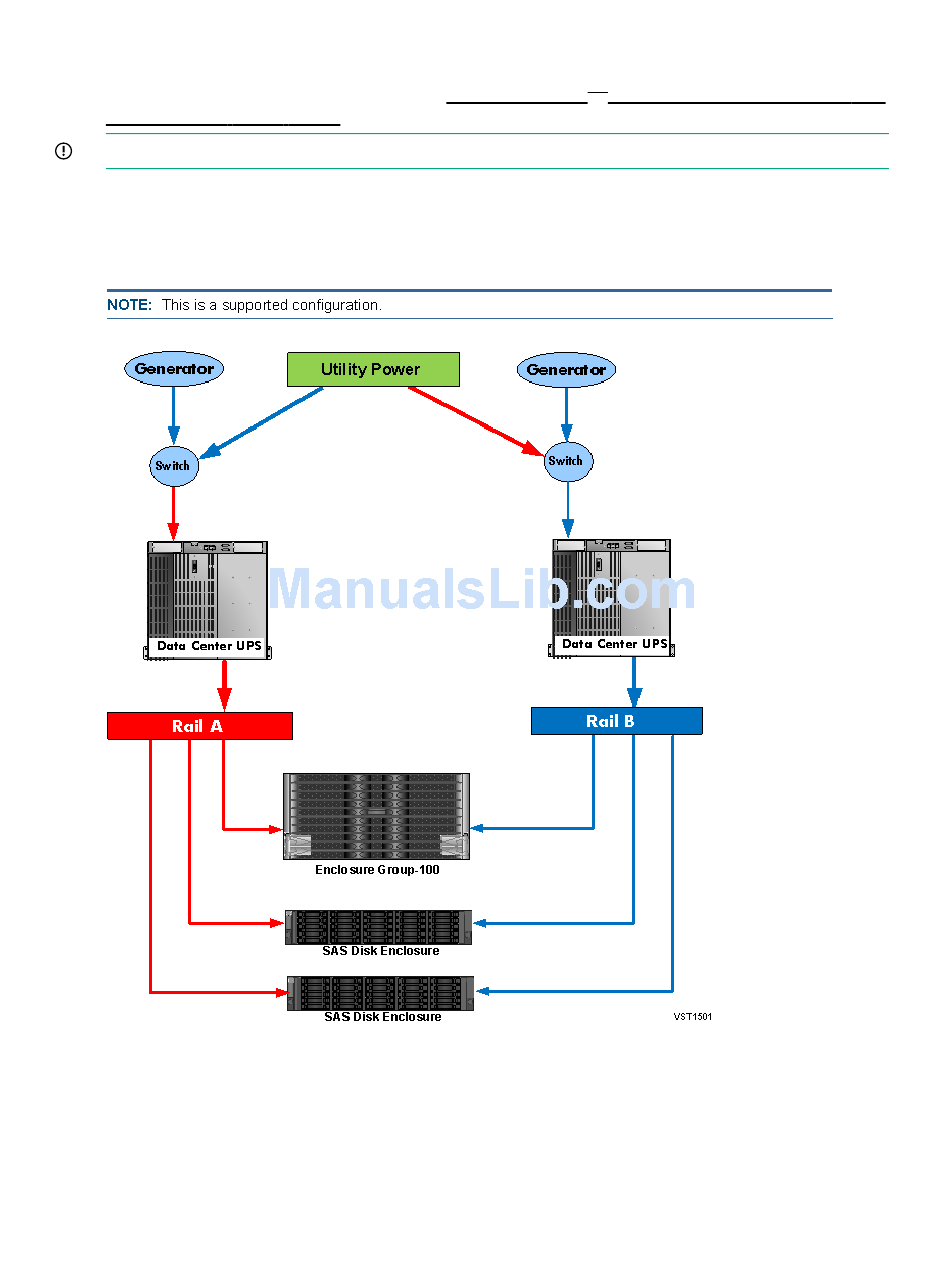

Figure 20 NS7 System With a Fault-Tolerant Data Center
82 UPS and Data Center Power Configurations
With this configuration, you can guarantee the data center never loses power.
TM
Tier Classifications Define Site
