Two Intelligent PDUs With Single-Phase UPS — (NA/JPN and INTL)

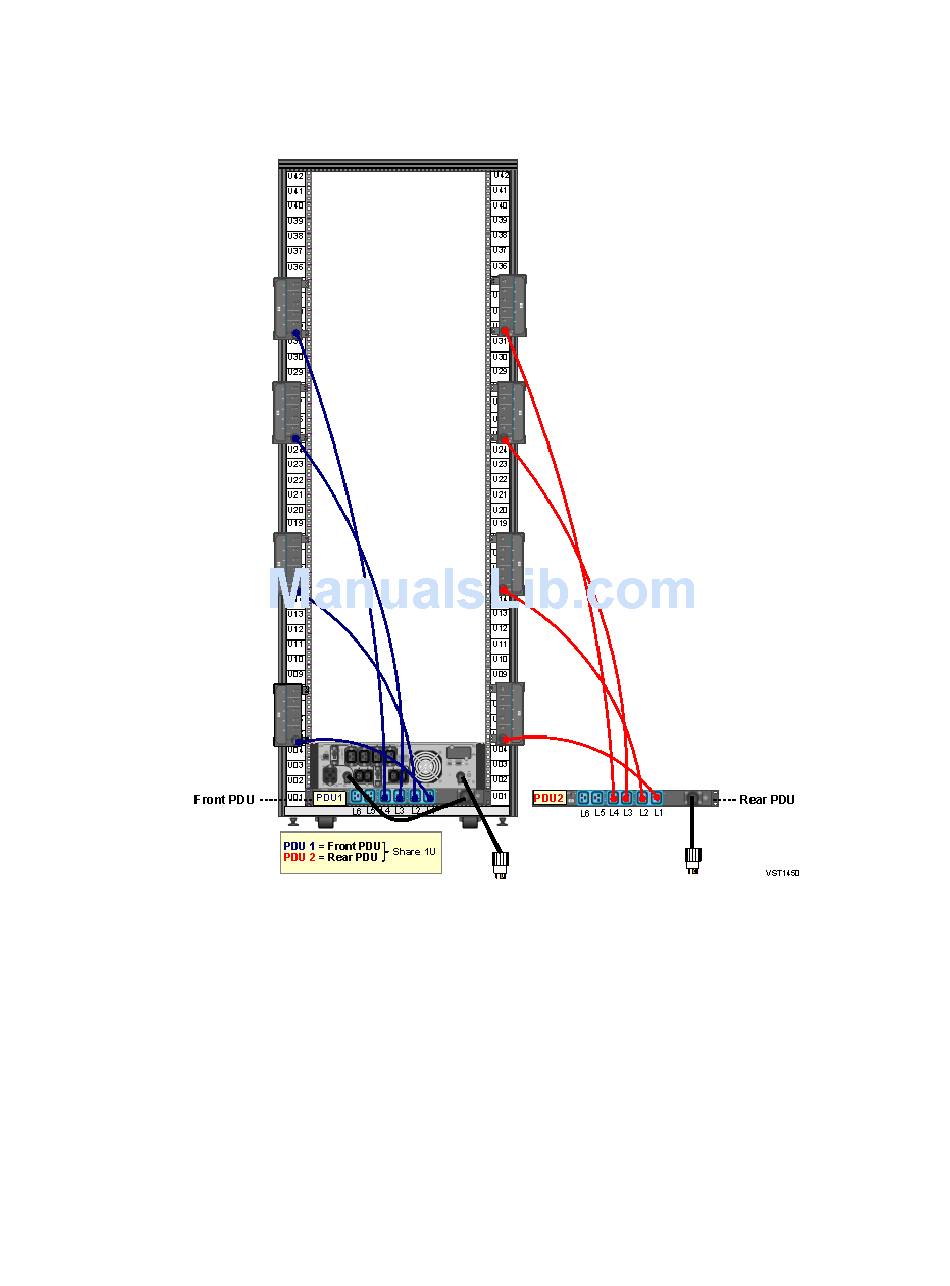

This illustration shows the power configuration for two iPDUs and a single-phase UPS in a rack.
For detailed power specifications and connector types, see
Figure 6 Two Intelligent PDUs With Single-Phase — (NA/JPN and INTL)
30
NS7 System Installation Specifications
"Power Specifications" (page
45).
