IP or Telco CLIM Option 1 — Four 10GBase-T and One 1GBase-T
Interface
Slot 1
Slot 2
Slot 3
FlexLOM
Interface
Slot 1
Slot 2
Slot 3
FlexLOM
14
HPE Integrity NonStop X NS7 Systems

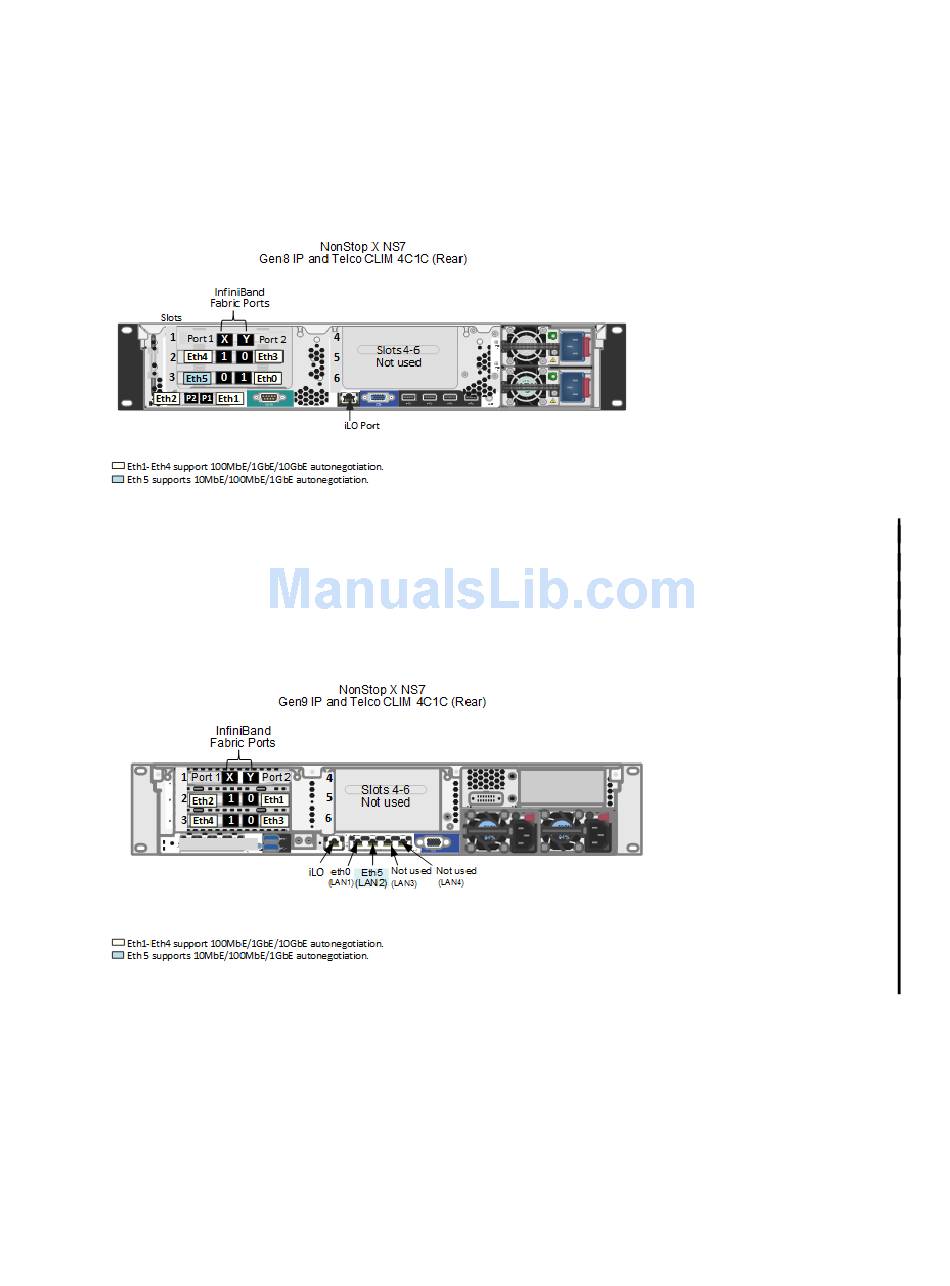

Characteristics of Gen8 IP or Telco CLIM
InfiniBand interface card which provides the IB fabric connections
10GbE 2-port adapter for Eth4 and Eth3 customer ports
1GbE 2-port adapter for Eth5 customer port and Eth0 for maintenance support.
10GbE 2-port adapter for Eth2 and Eth1 customer ports
Characteristics of Gen9 IP or Telco CLIM
InfiniBand interface card which provides the IB fabric connections
10GbE 2-port adapter for Eth2 and Eth1 customer ports
10GbE 2-port adapter for Eth4 and Eth3 customer ports.
1GbE 2-port adapter for Eth5 customer port and Eth0 for maintenance support
