Back View - Control 4 InfinityEdge Installation Manual

1
Display: 5" or 7" viewing area, Touch Screen with 800 x 480 resolution.
2
Shortcut buttons (4): For custom programming; to initiate an action or sequence of
actions. Use Composer Pro or Composer HE to configure these buttons.
3
Touch Screen Removal: Small hole located under the Touch Screen to remove the
Touch Screen from the wall.
Front dimensions. 5" Touch Screen (H x W x D): 3.15" x 4.8 x 0.9" (80mm x 122mm
x 23mm); 7" Touch Screen (H x W x D): 4.6" x 6.9 x 0.9" (117mm x 175mm) x 23mm)
Wall box dimensions. 5" or 7" Touch Screens (H x W x D): 2.7" x 4.1" x 2.4"
(68mm x 104mm x 61mm)
Power box dimensions. 5" or 7" Touch Screens (H x W x D): 2.8" x 4.5" x 1.8"
(71mm x 114mm x 46mm)

Back View

Figure 6. Back View of InfinityEdge 5" or 7" In-Wall Touch Screen
1
1
Wireless Connection: Hot (H) uses Black wire; Return (R) uses White wire.
2
RJ-45 port for Ethernet Connection: Ethernet port available for either a standard
Ethernet source that provides network communication only OR a PoE source that
provides power to the device and network communication.
Installation
WARNING! For the location where you are installing the Touch Screen, switch off
the circuit breaker or remove the fuse from the fuse box.
Avertissement! Pour l'endroit où vous installez l'écran tactile, coupez le disjonc-
teur ou enlevez le fusible de la boîte de fusible.
Warnung! Für die Position, in der Sie die Berührungseingabe anbringen, den
Circuit breaker ausschalten oder die Sicherung vom Sicherung Kasten entfernen.
IMPORTANT! When cutting the opening for the wall box, DO NOT cut the open-
ing too large. Be conservative and cautiously enlarge it as needed.
Important! En coupant l'ouverture pour la boîte de mur, ne coupez pas
l'ouverture trop grande. Soyez conservateur et agrandissez-avec précaution la
comme nécessaire.
Wichtig! Wenn Sie die öffnung für den Wandkasten schneiden, schneiden Sie
NICHT die große öffnung zu. Seien Sie konservativ und vergrößern Sie es vorsi-
chtig, wie gebraucht.
IMPORTANT! Before you can complete these instructions below, you must have
a Control4 5" or 7" Touch Screen wall box installed according to the documenta-
tion provided in the wall box kit. See "Accessories" for details.
Important! En coupant l'ouverture pour la boîte de mur, ne coupez pas
l'ouverture trop grande. Soyez conservateur et agrandissez-avec précaution la
comme nécessaire. Voyez que <<Accessories>>.
Wichtig! Bevor Sie diese Anweisungen durchführen können, müssen Sie ein
Control4 7 haben" der Berührungseingaben- Wandkasten, der entsprechend den
Unterlagen angebracht wird, die in den Wandkasteninstallationssatz bereitgestellt
werden. Sehen Sie daß "Accessories."
Network Options
•
PoE: The Ethernet network connection is provided through the PoE Injector. No
additional wiring is needed.
•
Standard Ethernet Connection: Connect the Touch Screen to one of the RJ-45
LAN ports on the gateway/router using the RJ-45 Ethernet cable.
•
WiFi Connection: The internal WiFi antenna will communicate with the LAN's WAP.
If the LAN has a WAP set up, no additional wiring is needed.
Power Configurations
•
AC Power. AC power is used to power the Touch Screen when using an Ethernet
or WiFi network connection.
•
Power Over Ethernet (PoE). PoE is used to power the Touch Screen when using
an Ethernet or WiFi network connection.
and Power Box
1
Prepare the plastic power box for installation into the wall box by inserting either the
Ethernet cable or the AC power cable into the power box (see Figures 7 and 8).
AC Power Connection. The steps below represent a typical U.S. installation.
Connect wires to the AC power source for the Touch Screen according to your
national and local electrical codes. Your installation may require alternative wires and
the use of a terminal block.
a.
Thread the power cable through the bottom back hole of the wall box to the
terminal (Figure 7). Remove the tab covering the hole first.
b.
Using the orange wire nuts (shipped in the box) connect the white-to-white wire
and the black-to-black wire, and then cap each one with a wire nut. Strip the wire
to 1/4" if necessary.
c.
Cap the ground wire from the wall if you are using a plastic wall box. Attach the
ground wire to the wall box when using a metal wall box.
Black and White Wires
2
Power Box
d.
Align and bend the wires carefully to fit them inside the wall box.
e.
Align and carefully slide the power box into the wall box.
Power Over Ethernet (PoE) Connection. Install a PoE Injector (sold separately) or
switch, and then connect the PoE Injector to the power and network. Connect to the
power box. The steps below describe how to install a Control4 PoE Injector.
a. Connect the Control4 PoE Injector to a power source, for example, an AC outlet,
using the power cord (provided with the unit).
b. Connect one of the RJ-45 LAN ports on the gateway/router/switch to the PoE
Injector's LAN port using the RJ-45 Ethernet cable.
c.
Connect the PoE Injector's PWR LAN-OUT port to the RJ-45 Ethernet cable that
will be connected to the Touch Screen.
d.
Pull the Ethernet cable through the top back hole of the wall box to the Ethernet
connector on the top back of the power box, and then connect it (see Figure 8).
e.
Align and carefully slide the power box into the wall box. Unless the Touch
Screen is in the power box, it doesn't pull any power.
Ethernet Connection
2
Secure the power box into the wall box using the screws provided. Note: Overtighten-
ing power box screws could result in a poor connection between the Touch Screen
and the power box.
3
Align and slide the back of the Touch Screen into the power box. The Touch Screen is
magnetic and should snap right into place.
4
(Optional) To secure the Touch Screen inside the power box, remove the tape
covering the bottom security pin (see Figure 9) before attaching the Touch Screen to
the power box.
5
Note the pinhole on the bottom underside of the Touch Screen's faceplate. If you ever
need to remove the Touch Screen from the wall, do the following:
a.
Locate the small pinhole on a tab (right side) underneath the Touch Screen.
b.
Insert a paper clip into the hole (about 1/4"). With both hands, lift the Touch
Screen from the bottom of the screen toward you to remove it (see Figure 9).

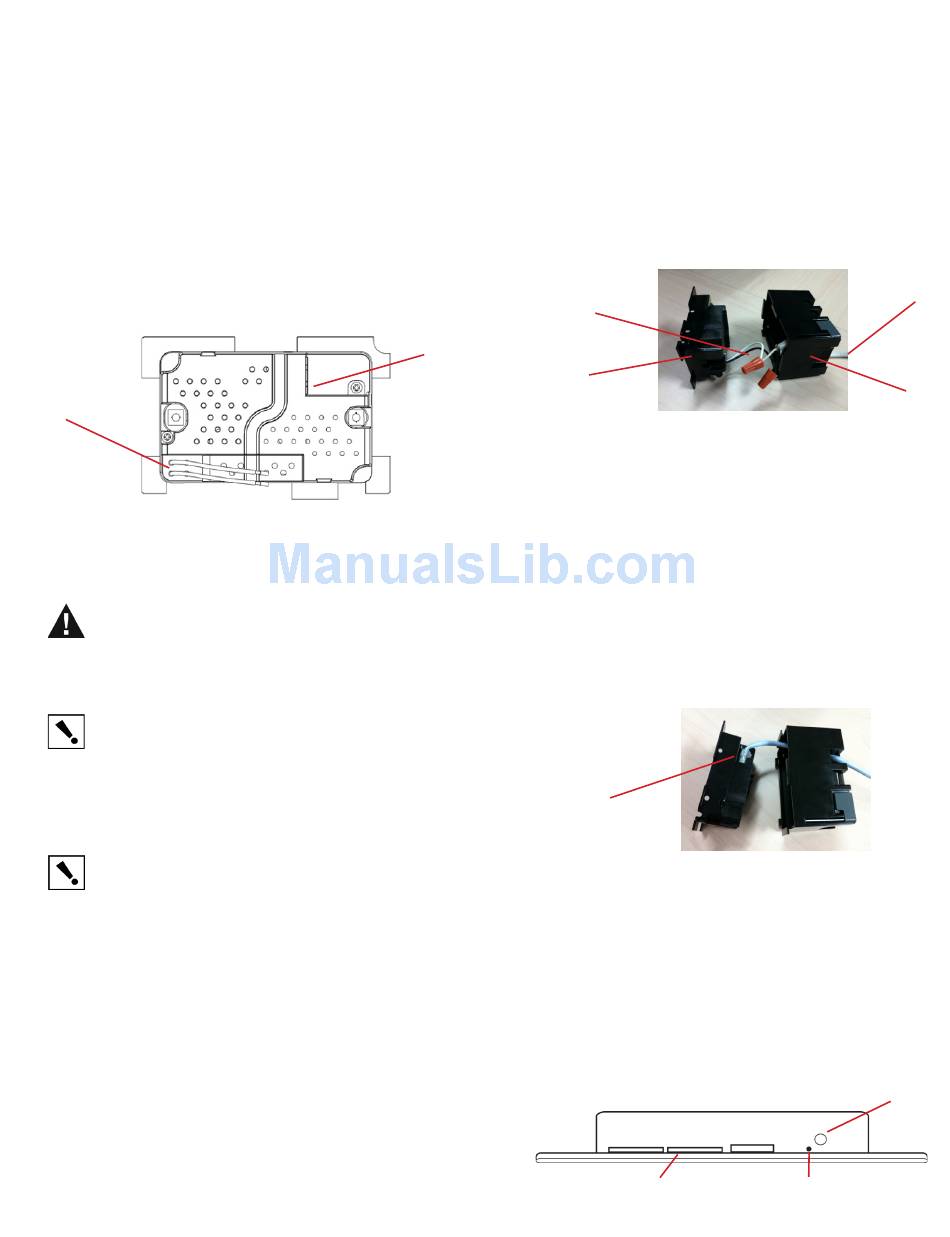

Figure 7. AC Power Connection
Figure 8. Ethernet Connection
Figure 9. Touch Screen Pin and Pinhole
Speaker Insert paper clip here to
remove Touch Screen
Power Cable
Wall Box
Security pin
