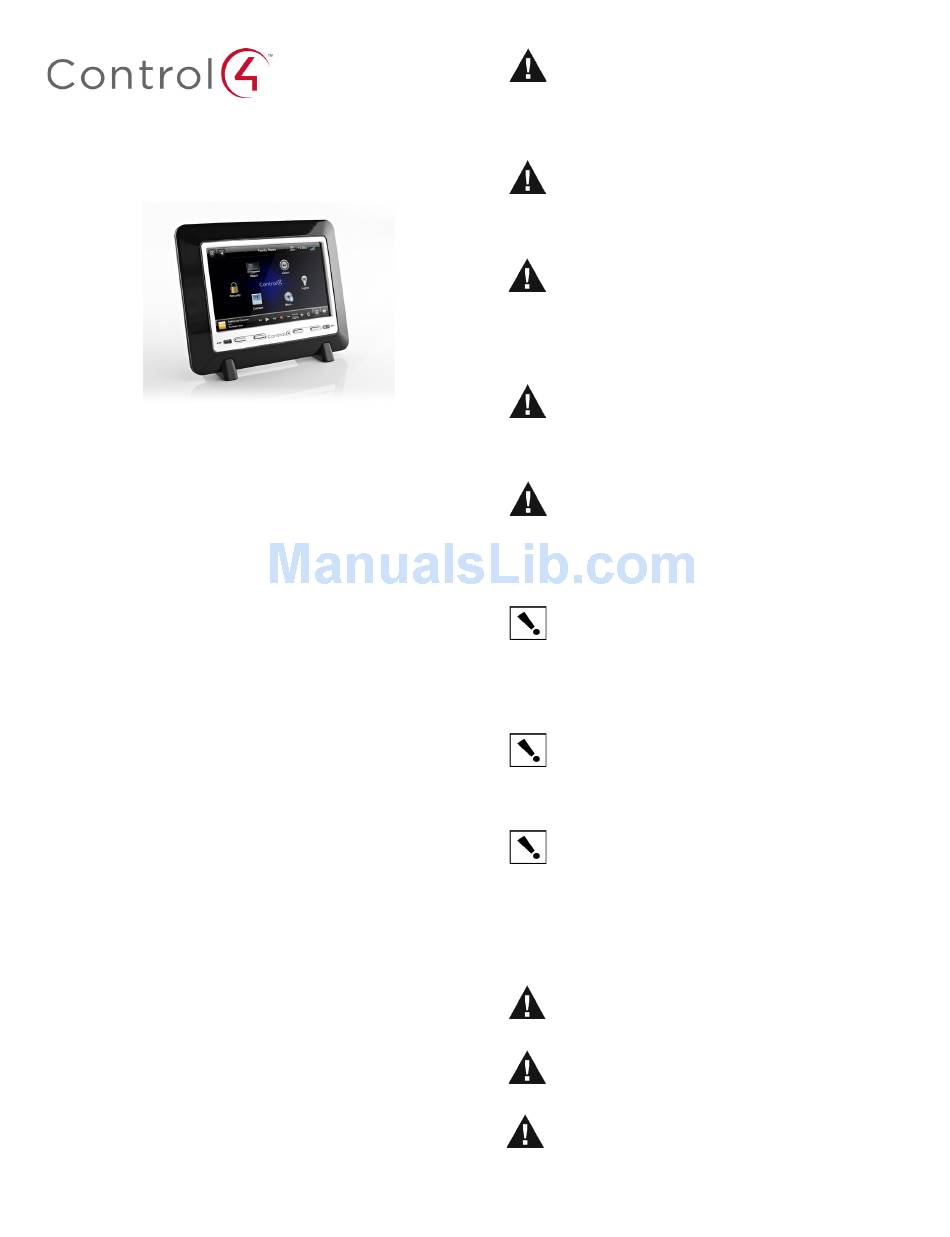

7" Tabletop Touch Screen
Installation Guide
Supported Models
•
C4-TST7-EG-B (7" Table Top Touch Screen, WiFi and Ethernet)
•
C4-TSTR7-EG-B (7" Table Top Touch Screen, WiFi and Ethernet)
What's in the Box
Carefully unpack the contents of the box, and make sure the following items are included
in the box. If any item is missing or damaged, please contact your Control4 Reseller.
•
7" Table Top Touch Screen (C4-TST7-EG-B or C4-TSTR7-EG-B)
•
AC power cord and power adapter (only use this power supply)
•
7" Table Top Touch Screen Installation Guide (this document)
Accessories
•
Control4 Power-Over-Ethernet Injector (AC-POE1-B)
Important Safety Instructions
1. Read and keep these instructions.
2. Heed all warnings and follow all instructions for this product in this and other Control4®
documents included with or related to this product.
3. Improper use of this product may result in potential electric shock.
4. Do not use this product near water.
5. Never spill liquid of any kind on this product.
6. Clean this product only with a damp or dry cloth. Do not use liquid cleaners or aerosol
cleaners to clean the product.
7. Install this product according to the manufacturer's instructions.
8. Install this product according to the National Electrical Code ANSI/NFPA 70 and the
prevailing local codes and requirements.
9. This product is designed for IT power systems with phase-to-phase voltage 120V,
240V, or 277V.
10. This product should be operated with the type of power indicated on the marked label
If you are not sure of the type of power available, consult your Control4 dealer or local
power company.
11. This product should never be placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is provided.
12. Only use the attachments and accessories included with this product or
recommended by Control4.
13. Do not allow anything to rest on the power cord. Do not install or place this product
where people will walk on the cord.
14. Do not use extension cords with any products in a Control4 system.
If applicable, unplug this product during lightning storms or when unused for long
periods of time.
15. Do not exceed the maximum wire size (if specified) in this guide.
16. This product must be installed by qualified professionals only.
17. Do not attempt to service this product yourself except as noted in this guide.
18. Opening or removing covers of internal components may expose you to dangerous
voltage points or other risks.
19. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged or frayed in any way; for example, a power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into this product,
this product has been exposed to rain or moisture, this product does not operate
normally, or this product has been dropped.
WARNING! The Touch Screen must be protected by an external circuit breaker
or a fuse rated at 6A maximum when used in Europe.
Avertissement! Pour réduire le risque du feu ou de choc électrique, n'exposez
pas cet appareil à la pluie ou à l'humidité.
Warnung! Die Berührungseingabe muß durch einen externen Circuit breaker
oder eine Sicherung geschützt werden, die am Maximum 6A veranschlagen wird,
wenn sie in Europa verwendet wird.
WARNING! To reduce the risk of fire or electrical shock, do not expose this ap-
paratus to rain or moisture.
Avertissement! Pour réduire le risque du feu ou de choc électrique, n'exposez
pas cet appareil à la pluie ou à l'humidité.
Warnung! Um die Gefahr des Feuers oder des elektrischen Schlages zu ver-
ringern, setzen Sie diesen Apparat nicht Regen oder Feuchtigkeit aus.
WARNING! To avoid bodily harm, always contact a Control4 Reseller for assis-
tance if any repair or adjustment is required.
Avertissement! Pour éviter des dommages physiques, contactez toujours un
revendeur de Control4-authorized pour l'aide si n'importe quelle réparation ou
ajustement est exigée.
Warnung! Um körperlichen Schaden zu vermeiden, treten Sie immer mit einem
Control4-authorized Reseller für Unterstützung in Verbindung wenn irgendeine
Reparatur oder Justage angefordert wird.
WARNING! Do not place the Touch Screen near sources of heat or expose to
direct sunlight for an extended period of time.
Avertissement! Ne placez pas l'unité près des sources de chaleur ou exposition
pour diriger la lumière du soleil pendant une période prolongée.
Warnung! Setzen Sie Maßeinheit nicht nahe Quellen der Hitze oder des Expo-
sés, um Tageslicht während eines ausgedehnten Zeitabschnitts zu verweisen.
WARNING! Do not stare at the light or proximity sensor. Looking at these sen-
sors for extended periods of time may cause damage to the eyes.
Avertissement! Ne regardez pas fixement la lumière ou le capteur de proximité.
Regarder ces sondes pendant des périodes prolongées peut endommager les
yeux.
Warnung! Starren Sie nicht entlang des Lichtes oder des Annäherungssensors
an. Das Betrachten dieser Sensoren nach ausgedehnten Zeitabschnitten kann
Beschädigung der Augen verursachen.
IMPORTANT! Do not use pens or sharp objects to navigate or make selections
on the Touch Screen. To select an item or scroll through a list, use your fingertip.
Important! N'employez pas les stylos ou les objets pointus pour diriger ou pour
faire des choix sur l'écran. Pour choisir un article ou un rouleau par une liste,
employez votre bout du doigt.
Wichtig! Benutzen Sie nicht Federn oder scharfe Gegenstände, um oder Vor-
wähleren auf dem Schirm zu bilden zu steuern. Um ein Einzelteil oder eine Rolle
durch eine Liste vorzuwählen, benutzen Sie Ihre Fingerspitze.
IMPORTANT! Improper use or installation can cause LOSS/DAMAGE OF
PROPERTY.
Important! L'utilisation ou l'installation inexacte peut causer LOSS/DAMAGE DE
PROPRIÉTÉ.
Wichtig! Unsachgemäßer Gebrauch oder Installation können LOSS/DAMAGE
DER EIGENSCHAFT verursachen.
IMPORTANT! Using this product in a manner other than outlined in this document
voids your warranty. Further, Control4 is NOT liable for any damage incurred with
the misuse of this product. See "Warranty."
Important! Utilisant ce produit en quelque sorte autre que décrit dans ce docu-
ment vide votre garantie. De plus, Control4 n'est pas responsable d'aucun dom-
mage encouru avec l'abus de ce produit. Voyez que «Warranty.»
Wichtig! Das Verwenden dieses Produktes in gewissem Sinne anders als
umrissen in diesem Dokument hebt Ihre Garantie auf. Weiter ist Control4 NICHT
für irgendeine Beschädigung verantwortlich, die mit der Fehlanwendung dieses
Produktes genommen wird. Sehen Sie, daß "Warranty."
WARNING! Install in accordance with all national, state, and local electrical
codes.
Avertissement! Installez selon tous les national, état, et codes électriques
locaux.
WARNING! This product generates heat. The room must have adequate
ventilation or the ability to dissipate heat effectively.
Avertissement! Ce produit produit de la chaleur. La salle doit avoir à
ventilation proportionnée ou la capacité d'absorber la chaleur efficacement.
WARNING! This product must be grounded in accordance with the National
Electrical Code (NEC) requirements.
Avertissement! Ce produit doit être fondu selon les conditions électriques
nationales de code (NEC).
Advertisement
Related Manuals for Control 4 c4-tst7-eg-b
Summary of Contents for Control 4 c4-tst7-eg-b
-
Page 1: Installation Guide
Avertissement! Pour réduire le risque du feu ou de choc électrique, n’exposez pas cet appareil à la pluie ou à l’humidité. Warnung! Um die Gefahr des Feuers oder des elektrischen Schlages zu ver- ringern, setzen Sie diesen Apparat nicht Regen oder Feuchtigkeit aus. WARNING! To avoid bodily harm, always contact a Control4 Reseller for assis- tance if any repair or adjustment is required. Avertissement! Pour éviter des dommages physiques, contactez toujours un revendeur de Control4-authorized pour l’aide si n’importe quelle réparation ou ajustement est exigée. Warnung! Um körperlichen Schaden zu vermeiden, treten Sie immer mit einem Control4-authorized Reseller für Unterstützung in Verbindung wenn irgendeine Reparatur oder Justage angefordert wird. WARNING! Do not place the Touch Screen near sources of heat or expose to direct sunlight for an extended period of time. Supported Models Avertissement! Ne placez pas l’unité près des sources de chaleur ou exposition pour diriger la lumière du soleil pendant une période prolongée. • C4-TST7-EG-B (7” Table Top Touch Screen, WiFi and Ethernet) Warnung! Setzen Sie Maßeinheit nicht nahe Quellen der Hitze oder des Expo- • C4-TSTR7-EG-B (7” Table Top Touch Screen, WiFi and Ethernet) sés, um Tageslicht während eines ausgedehnten Zeitabschnitts zu verweisen. WARNING! Do not stare at the light or proximity sensor. Looking at these sen- What’s in the Box sors for extended periods of time may cause damage to the eyes. Carefully unpack the contents of the box, and make sure the following items are included Avertissement! Ne regardez pas fixement la lumière ou le capteur de proximité. in the box. If any item is missing or damaged, please contact your Control4 Reseller. Regarder ces sondes pendant des périodes prolongées peut endommager les yeux. • 7” Table Top Touch Screen (C4-TST7-EG-B or C4-TSTR7-EG-B) Warnung! Starren Sie nicht entlang des Lichtes oder des Annäherungssensors • AC power cord and power adapter (only use this power supply) an. Das Betrachten dieser Sensoren nach ausgedehnten Zeitabschnitten kann... -
Page 2: Front View
WARNING! Use this product only in dry locations. Figure 2. Ethernet - Requires connection to Ethernet and AC power Avertissement! Employez ce produit seulement dans des endroits secs. CAUTION! This product is for residential use only. Attention! Ce produit est pour à l’usage résidentiel ou commercial seulement. Requirements To install the Touch Screen, you need the following: • Control4 Controller, fully installed and configured. • (Optional) An amplifier or amplified speakers. • (Optional) Any RCA cables required to connect the Touch Screen and the amplifier or amplified speakers. • For an Ethernet installation that uses PoE power: • An Ethernet network installed and available that includes a gateway/router/ switch. • Access to the Control4 PoE Injector (model #AC-POE1-B) or an 802.3af com- patible PoE Ethernet switch. • Two (2) Ethernet CAT5 cables: (1) one that will run from the Ethernet gateway/ router/switch to the PoE Injector/switch and (2) one that runs from the PoE Injector/switch to the Touch Screen. • For an Ethernet installation that uses AC power: Option 3: WiFi Connection with AC • An Ethernet network installed and available that includes a gateway/router/ switch. -
Page 3: Back View
Display: 7” viewing area, Touch Screen with 800 x 480 resolution TFT. (Optional) If you intend to send audio to an amplifier or amplified speakers, route a stereo RCA cable from your Touch Screen’s Audio Out ports (RCA red and white con- Shortcut buttons (4): For custom programming to initiate an action or sequence of nectors) to your amplifier or amplified speakers. actions. Calibrate your Touch Screen the first time you use it, or any time the on-screen Proximity sensor: Laser sensor that detects movement within two (2) feet of the instruction prompts you to. To do this, use your fingertip to touch the screen firmly Touch Screen and turns off Screen Saver. and accurately at the point indicated by the crosshairs. Repeat for each of the four (4) subsequent points indicated by the crosshairs. Reset button: Button located under the bezel to reset the Touch Screen. (For WiFi only) Connect to a wireless access point (WAP). Ensure that the WiFi Light sensor: Detects light levels in room for programming purposes. (802.11b/g) WAP is configured to communicate with the Control4 Controller: Front Dimensions (H x W x D): 6.95” x 8.37” x 4”. Select More > Settings > Network. Under Wireless, select Enable. Back View If you don’t see the network you want, select Other. Figure 5. Back View of 7” Tabletop Touch Screen At Network Name, select to add the SSID or name of the wireless network when the keyboard appears. A virtual... - Page 4 Australia/New Zealand Compliance This product has been tested to the requirements of, and shown to be in compliance with, the following requisite standards. • AS/NZS 4368: 2003 Third-Party Trademarks Libertas Libertas Firmware copyright statement for Touch Screens 6/26/09 Copyright (c) 2006, One Laptop per Child and Marvell Corporation. All rights reserved. Redistribution. Redistribution and use in binary form, without modification, are permitted provided that the following conditions are met: * Redistributions must reproduce the above copyright notice and the following disclaimer in the documentation and/or other materials provided with the distribution. * Neither the name of Marvell Corporation nor the names of its suppliers may be used to endorse or promote products derived from this software without specific prior written permission. * No reverse engineering, decompilation, or disassembly of this software is permitted. * You may not use or attempt to use this software in conjunction with any product that is offered by a third party as a replacement, substitute or alternative to a Marvell Product where a Marvell Product is defined as a proprietary wireless LAN embedded client solu- tion of Marvell or a Marvell Affiliate. DISCLAIMER. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUD- ING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRI- BUTION AND MODIFICATION (Section 3.b.) You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: Accompany it with a written offer, valid for at least three years, to give any third party, for...
