Front View - Control 4 InfinityEdge Installation Manual

MAGNET WARNING! Located within the plastic enclosures of this product are
strong (rare earth) magnets that are used to attach the face plate to the electrical
box. If someone handling or using the product has a pacemaker, defibrillator, or
similar electronic device used for health purposes, avoid close proximity (closer
than 20 inches) to the product until you consult your physician. Magnetic fields
can cause damage to magnetic storage media (for example, credit cards, video
tapes, computer hard drives, etc). Keep all magnets at least 20 inches away from
all types of magnetic media. Certain electronic devices are sensitive to magnetic
fields and may be damaged permanently or temporarily disabled if exposed to a
magnetic field that is too strong. Consult the owner's manuals of your electronic
devices for further information.
Ingested magnets can cause serious injuries and may result in death. If magnets
have been ingested (or you suspect they might have been), seek competent
medical attention immediately.
Avertissement - Aimants! Dans l'emballage en plastique de ce produit sont
inclus des aimants très puissants utilisés pour attacher les plaques de surface
aux boites électriques. Si quelqu'un, manipulant ou utilisant ce produit est muni
d'un pacemaker, défibrillateur ou autre dispositif d'ordre médical, il doit éviter de
se trouver à proximité (moins de 20 pouces) de ce produit avant d'avoir consulté
son médecin. Les champs magnétiques des aimants peuvent endommager le
stockage d'information d'ordre magnétique (ex : cartes de crédit, bandes vidéo,
disques durs d'ordinateur, etc.) Gardez tous les aimants au moins à 20 pouces
de distance de tout type de stockage d'information d'ordre magnétique. Certains
dispositifs électroniques sont sensibles aux champs magnétiques et peuvent être
endommagés de façon permanente ou être désactivés si ils sont exposés à un
champs magnétique trop puissant. Pour plus d'information, consultez le manuel
d'utilisateur propre à votre pièce électronique.
Si avalés, les aimants peuvent causer des blessures graves et aussi causer la
mort. Si des aimants ont été avalés (ou vous doutez qu'ils ont pu l'être) obtenez
les soins médicaux de personnes compétentes immédiatement.
Requirements for In-Wall Installations
To install the InfinityEdge 5" or 7" Touch Screen, you need the following:
• Home Controller HC-200, HC-300, HC-1000, Commercial Controller CC-300, or
CC-1000 fully installed and configured with a Control4® system.
• Control4 InfinityEdge 5" and 7" Touch Screen custom wall box installed. See "Wall
Box Kit Options" in this document.
• If using Ethernet with PoE power:
• An Ethernet network installed and available that includes a gateway/router/switch.
• Control4 PoE Injector (model #AC-POE1-B) or another third-party PoE Injector or
switch (which are certified to UL/ANSI standards).
• Two (2) Ethernet CAT5 cables to support your PoE Injector: (1) one that runs from
the Ethernet gateway/router/switch to the PoE Injector/switch and (2) one that runs
from the PoE Injector/switch to the Ethernet Touch Screen wall box.
• If using Ethernet with AC power:
• An Ethernet network installed and available that includes a gateway/router/switch.
• Access to in-wall AC power (a neutral connection is required).
• One (1) Ethernet CAT5 cable that runs from the Ethernet gateway/router/switch to
the Touch Screen.
• If using wireless with AC power:
• Wireless network (WiFi 802.11 b/g) installed and available with a wireless access
point (WAP).
• Access to in-wall AC power (a neutral connection is required).
• A 14-gauge electrical wire long enough to pull between the Touch Screen and the
power source.

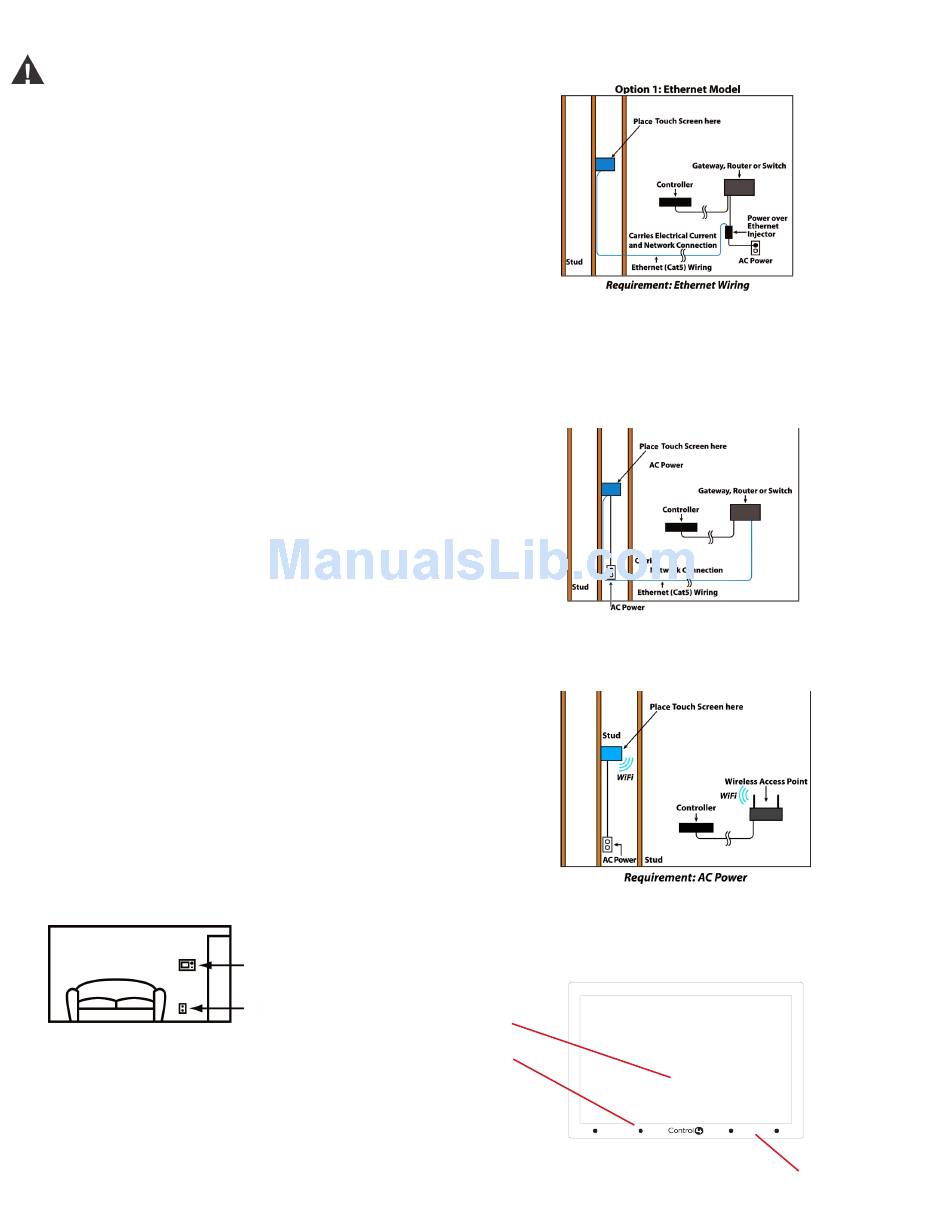

Placement, Network Connection, and Power
Options
Place the Touch Screen in a convenient location at eye level, typically near the entrance of
the room, approximately 57 to 61 inches from the floor (see Figure 1).
Figure 1. Touch Screen Placement
This device uses an Ethernet or WiFi network connection, and can be powered using
PoE or AC power. Note: Do not attempt to use PoE and AC at the same time.
Option 1: Ethernet Connection with a PoE Injector or a
Third-Party Injector or Switch
PoE injects electrical current into the Ethernet cable using a PoE Injector (model
#AC-POE1-B) or a third-party PoE solution to provide the Touch Screen with power and
a network connection. The InfinityEdge 5" and 7" Touch Screens work with the Control4
PoE Injector or a third-party PoE Injector. To set up your PoE and Ethernet connection
with a PoE Injector, see Figure 2.
New Device
AC Power (unless using PoE)
Figure 2. Ethernet Model - Requires Ethernet Connection to PoE Injector
Place the PoE Injector near your gateway/router/switch. Pull the Ethernet cable from that
location to where you want to install the Touch Screen.
Option 2: Ethernet Connection with AC
No PoE Injector is needed for Ethernet with AC power; the Ethernet is connected directly
to the switch. This power connection requires both neutral and hot connections (see
Figure 3).
Figure 3. Ethernet - Requires Connection to Ethernet and AC Power
Option 3: WiFi Connection with AC
WiFi placement: Place the Touch Screen above a power source, for example, an outlet.
Ensure that you have WiFi in the home (see Figure 4).
Figure 4. WiFi - Requires AC Power and WAP
Front and Rear Panel Description

Front View

Figure 5. Front View of the InfinityEdge 5" or 7" In-Wall Touch Screen
1
2
3
